SHOP MANUAL

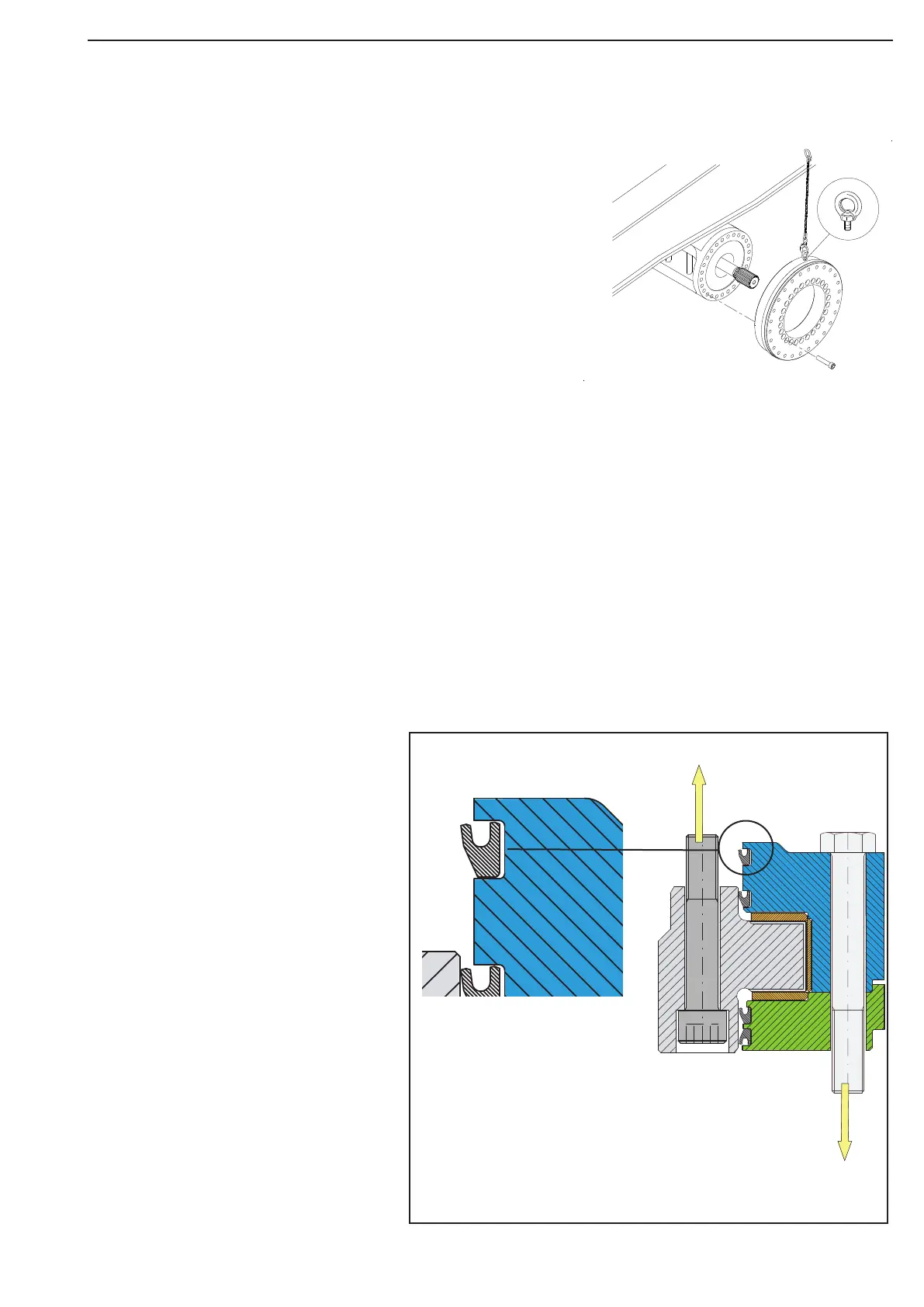

Remove the actual tandem bearing.
On top of the bearing, remove the M12 hexagon plug, fasten a
lifting device in upper mounting holes and lift to take the weight
of the tandem bearing.
Unscrew the 30 M20- screw attaching the tandem bearing to the
rear axle housing.
Lift bearing out from the rear axle unit, and lower to the ground.
Clean the mating flanges.
Assemble new bearing unit to the axle housing.
Grease the sealing and the sealing surfaces
Apply locking liquid: Loctite 245
Screw M20x110 DIN912-12.9
Torque limit: 560 Nm.
DRIVE LINE
Ch 3 page 184 Ch 3 page 185
DRIVE LINE
Disassemble the tandem bearings
Tandem
housing
Axle housing
Figure 537
Figure 538
