SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 36 Ch 7 Page 37
FRONT WAGON
Fender LH
7.4.2 Fender LH
The left hand Fender contains the battery main switch and the batteries, accessible by a hatch. The hatch is
also used as a working platform for engine maintenance.
Removal
Thoroughly clean the fender and the area around for accumulated dirt.
Make sure the main battery switch is turned off. (Ref. Operation & Maintenance manual)
Open the bonnet.
Open the fender hatch.
Disconnect the electrical cable to the head lamp, remove the clamps, and pull the cable back from fender.
Remove batteries.
Remove main battery switch and battery cables.
Remove the head lamp.
Remove external parts that will be re-used if fender is going to be replaced by a new.
Release the four bolts securing the fender to the front frame, and lower fender to ground.
Check attachment points, and repair any damages to ensure proper fit of the new fender.
Installation
Position the fender on the front frame, and secure by tightening the four fastening bolts.
Replace the external parts. New parts when necessary, or re-use from the old fender where possible.
Replace the head lamp and the cable using the same amount of straps and clamps as removed.
Replace the battery cables and the battery main switch.
Replace the batteries
Control
Check that all parts are located as before removal. Close hatch, and close the bonnet.
Turn the main battery switch on, and check the function of the lights.
Adjust head lamp if necessary.

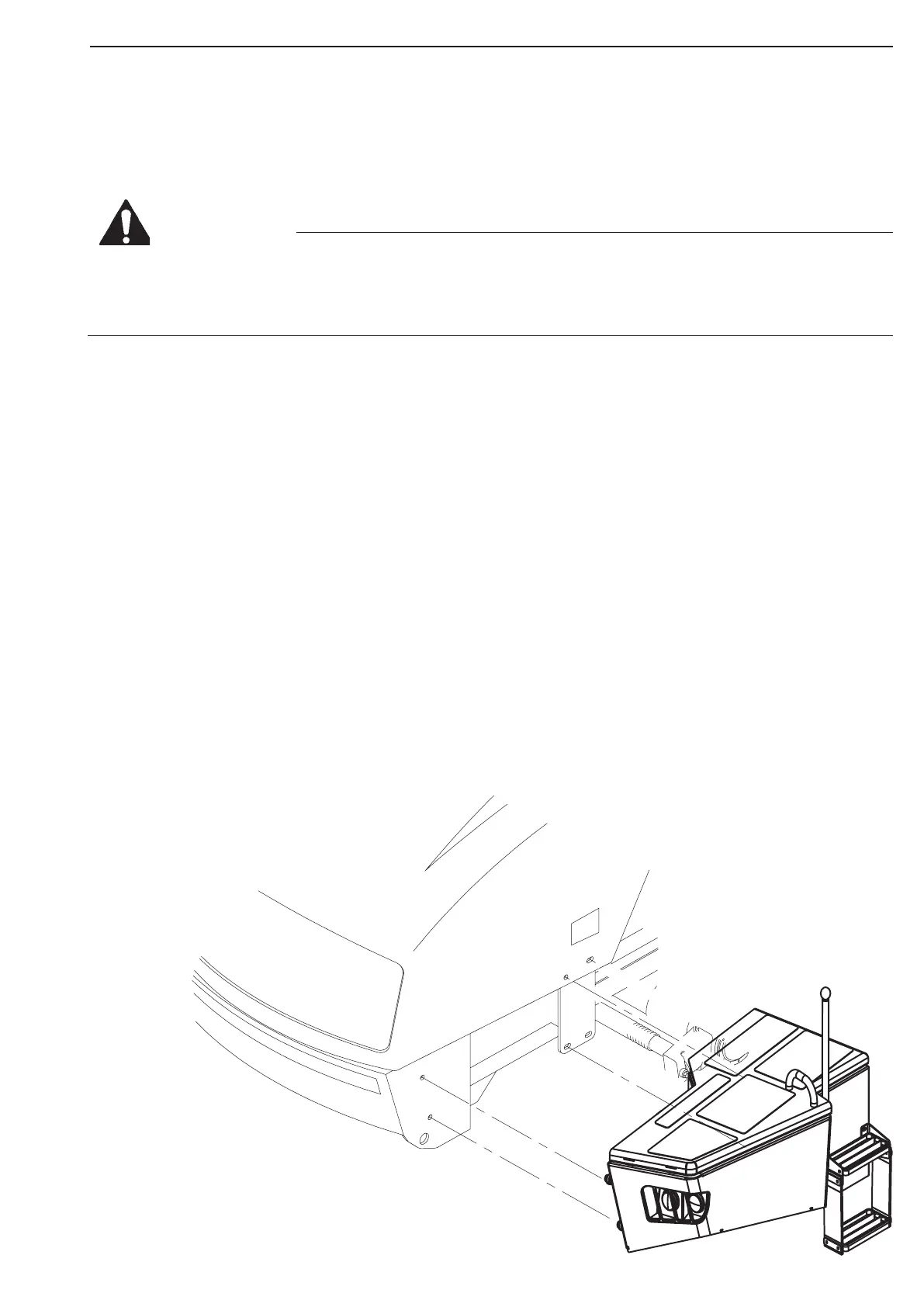

Figure 83
Never turn off battery main switch when engine is running
Never turn off battery mainSwitch when ignition is on
Leave battery main switch on for atleast 5 minutes after engine has completely stopped.
WARNING
