SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 4 Ch 7 Page 5
FRONT WAGON
The Hydraulic gas cylinder reduce the motion in the wheel suspension
when driving on rough road condition.

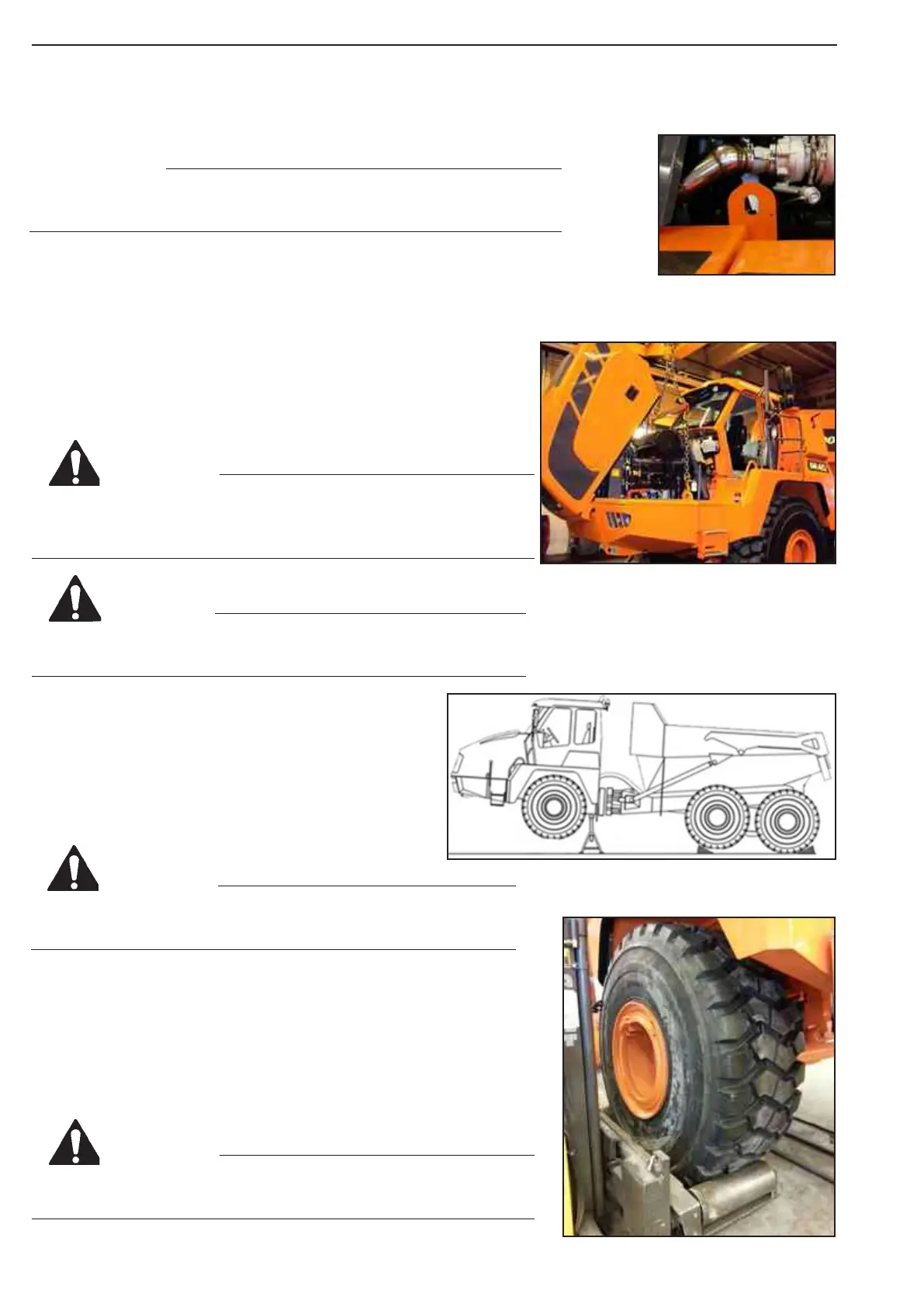

7.2.1 Hydraulic gas cylinder disassembly
Attach chain with hooks onto lifting eyes on each
side of the engine.
Raise the dump truck.
Place the dump truck on level ground and apply parking brake.
Apply articulation lock and wheel chocks.
Loosen nuts and remove actual wheel using tire handling
device.
Front frame must be supported with safety stands on each side
under the dump truck.
DANGER
The height of the safety stands should relieve the suspension
system and allow the wheels to be easily removed.
WARNING
Be aware of the risk of injury to people and equipment when
handling heavy objects!
WARNING
WARNING
NOTE
Figure 4
Figure 3
Figure 6
Figure 5
