Doosan DA40 - Steering cylinder, sectional drawing.

SHOP MANUAL
Ch 5 page 41
HYDRAULIC SYSTEM

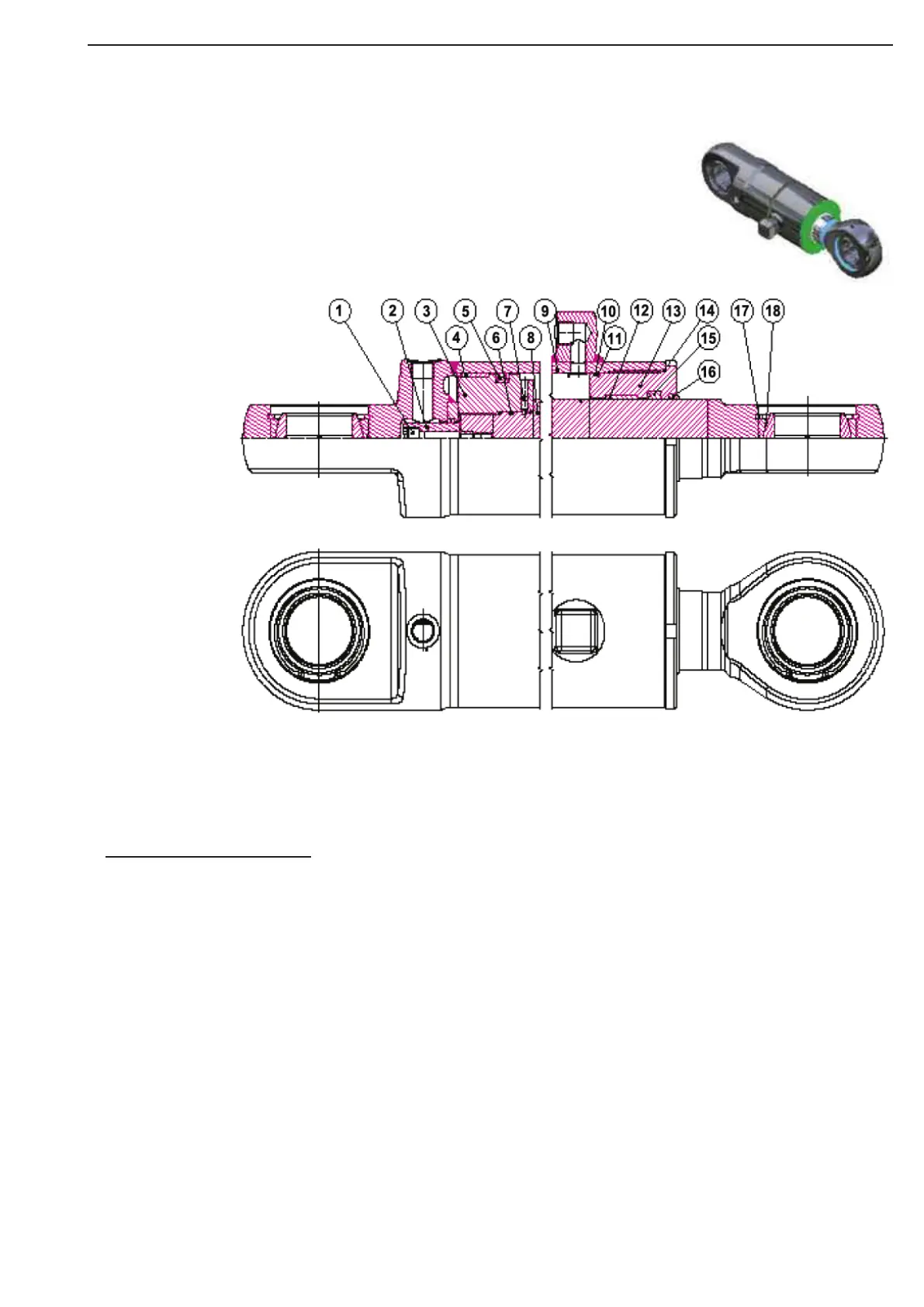

Steering cylinder, sectional drawing.
Steering cylinder ass’y
Pos Qt’y Description
1 1 Screw
2 1 Bushing
3 1 Piston
4 1 Steering
5 1 Piston seal
6 1 O-ring
7 1 Locking screw
9 1 Casing
10 1 O-ring
11 1 Backup ring
12 1 Steering
13 1 Cover
14 1 O-ring
15 1 Seal
16 1 Stripper
17 4 Retaining ring
18 2 Bearing
Seal kit
Torque Limit
Pos. 3: 1370 Nm
Pos. 7: 5 Nm
Pos. 13: 450 Nm
Figure 32
