Engine
SHOP MANUAL
Ch 1 page 129
Crankshaft gear
8405
Removal
1. Turn the crankshaft so that cylinder number 1
is close to TDC. Use tool 8405 and ratchet
handle on the flywheel starter ring gear.
2. Remove the flywheel as described in the
section Removing the flywheel.
3. Remove the flywheel housing as described in
the section Removing the flywheel housing.
4. Remove the intermediate gear.
5. Remove the crankshaft gear.
Fitting
1. Fit the crankshaft gear and guide pin.
2. Fit the intermediate gear as described in
Intermediate gear, fitting.
3. Fit the flywheel housing as described in the
section Fitting the flywheel housing.
4. Fit the flywheel as described in the section
Fitting the flywheel.
After removing the intermediate gear, neither the camshaft nor the
crankshaft must be rotated. This may cause pistons and valves
to collide and be damaged.
NOTE

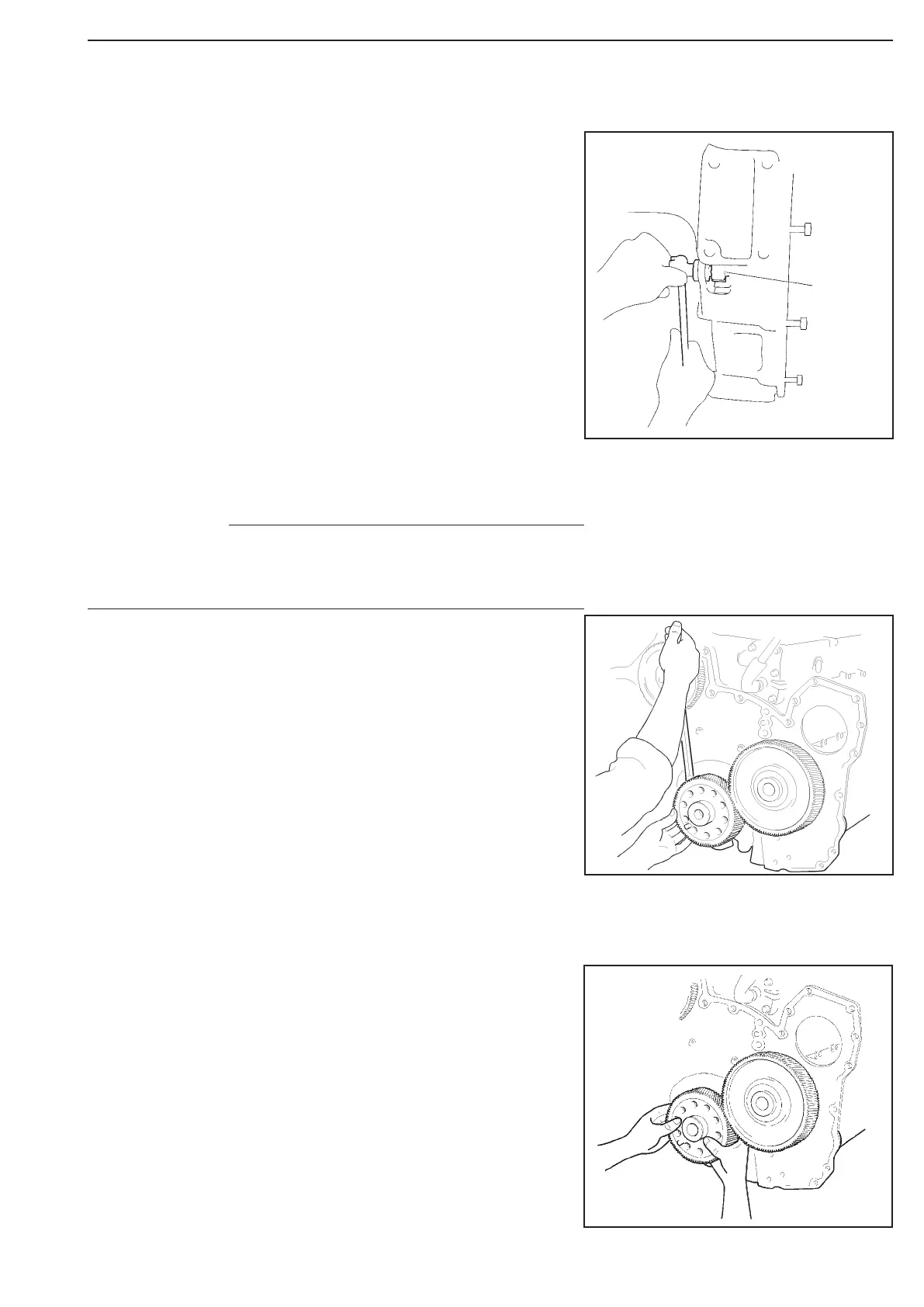

Figure 251
