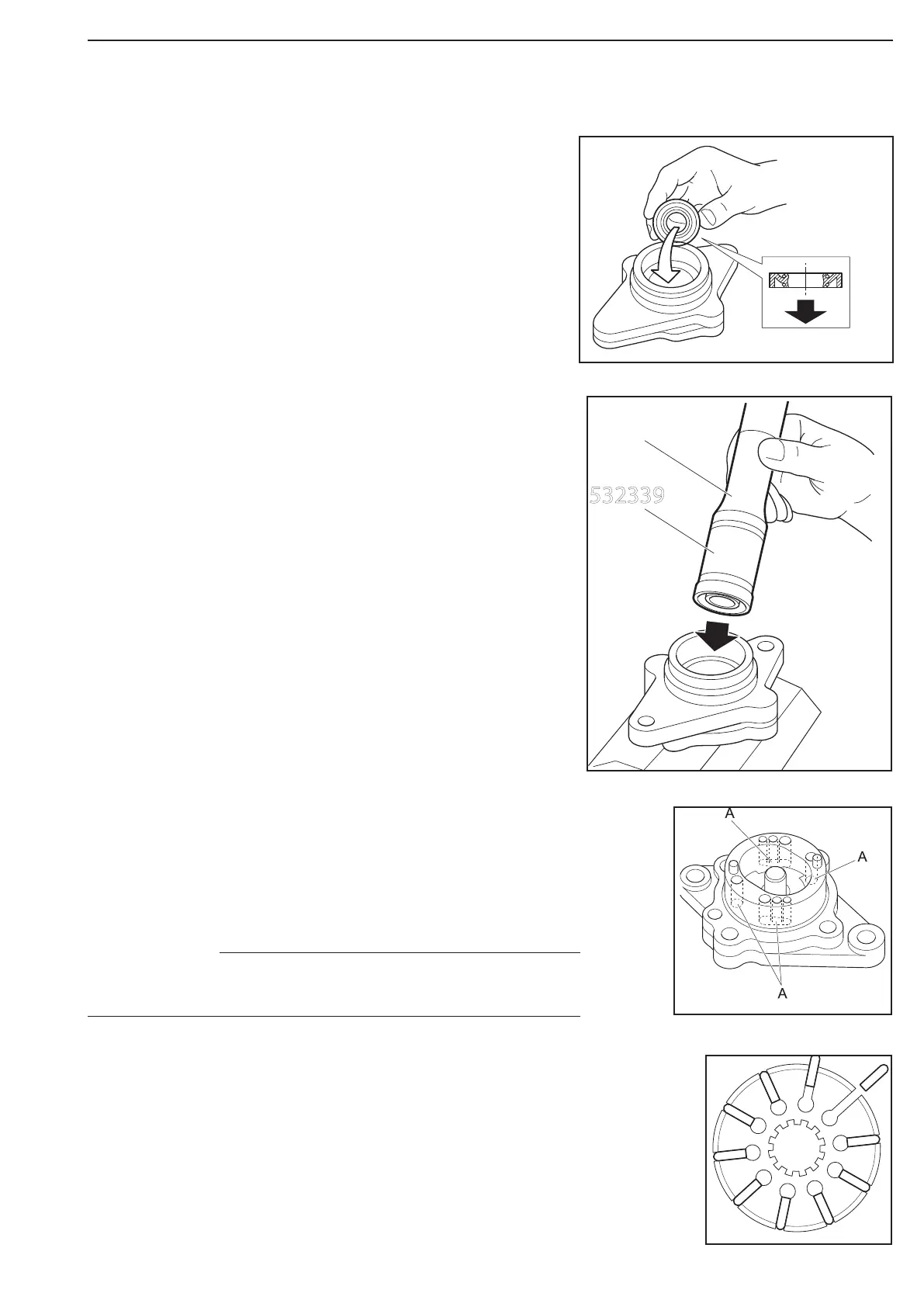

1. Lubricate the component parts with automatic transmission
fluid.
2. Turn the sealing ring as illustrated.
3. Press on the sealing ring using drift 99 255 and shank 98 450.
4. Fit the spacing ring 19.
5. Tap the shaft into the end plate with a rubber mallet.
6. Fit retaining ring 23.
7. Fit two new O-rings, 15 and 17, in the mating face. Fit the
guide pins 16.
8. Fit the wear plate 14. Turn the wear plate so that the groove
faces the rotor housing.
9. Fit the rotor housing 11.
Turn the rotor housing so that the oil channels A will not be
blocked.
10. Fit the rotor 12 with the chamfered side facing the flange.
Make sure that the rounded part of the vanes 13 is facing out-
wards.
532339
532340
Oil circulate pump assemble.
NOTE
Figure 344
Figure 345
Figure 346
Figure 347
