11. Fit the pressure plate 10 with oil channel C facing the rotor
housing.
12. Fit new O-rings 4 and oil channel support rings in the pump
housing.
13. Assemble the housing and the end plate. Make sure that the
oil channels and the O-rings are lined up. Fit the bolts 2.
1 Pump housing
2 Bolt, 4 off
3 Washer, 4 off
4 O-ring, 2 off
5 Support ring, 2 off
6 Plug
7 O-ring
8 Compression spring
9 Control valve
10 Pressure plate
11 Rotor housing
12 Rotor
13 Vanes
14 Wear plat15e
15 O-ring
16 Guide pin, 2 off
17 O-ring
18 End plate
19 Spacing ring
20 Sealing ring
21 Washer
22 Axle
23 Retaining ring
24 Bearing
25 Retaining ring
26 Gear
27 Nut
28 Flange
29 Gasket
30 Stud, 2 off
31 Bolt, 5 off

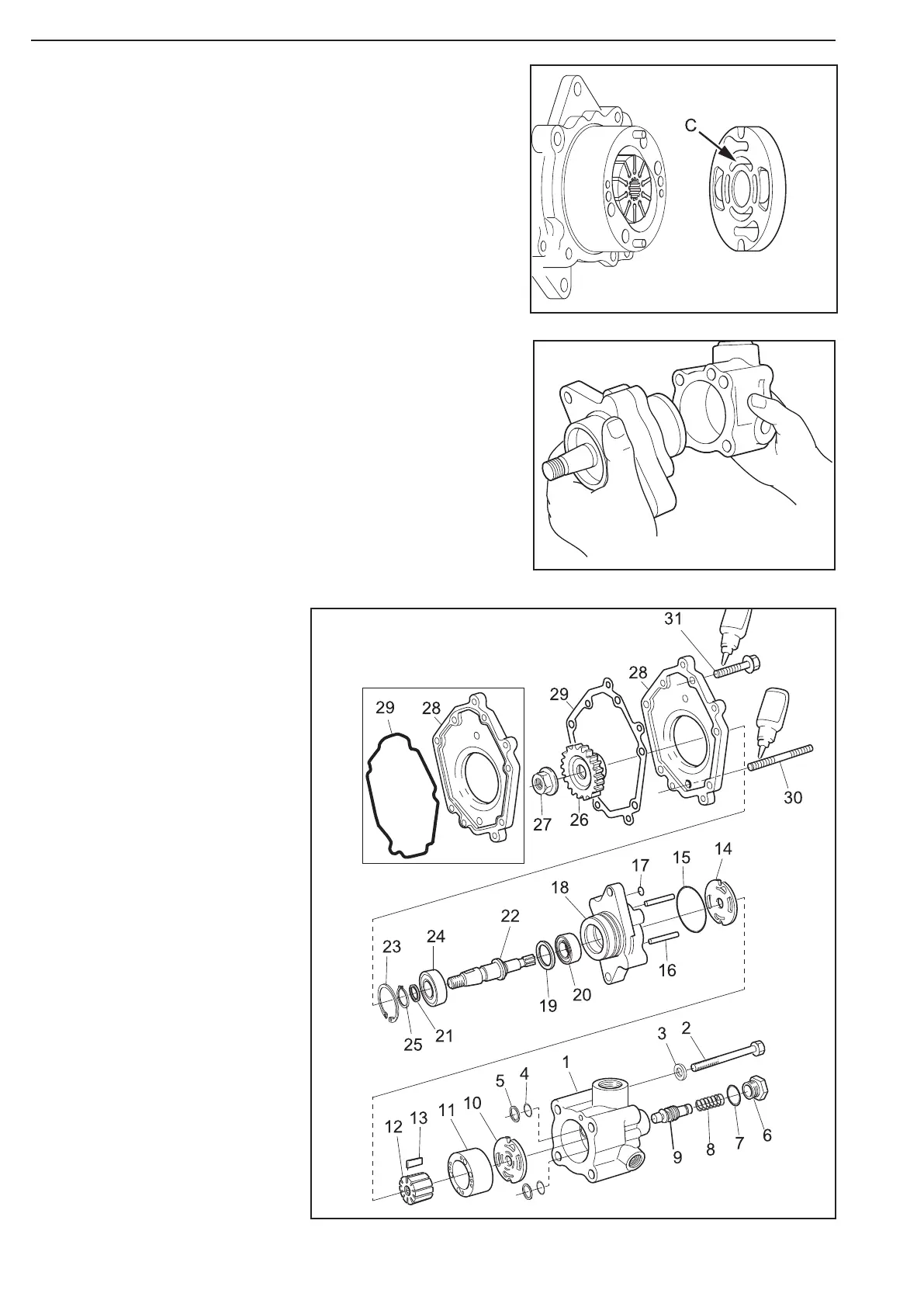

Figure 348
Figure 349
Figure 350
