Doosan DA40 - 8.2 Dumper Body; 8.2.1 Dumper Body

SHOP MANUALSHOP MANUAL
REAR WAGON
Ch 8 Page 2
Ch 8 Page 3
REAR WAGON

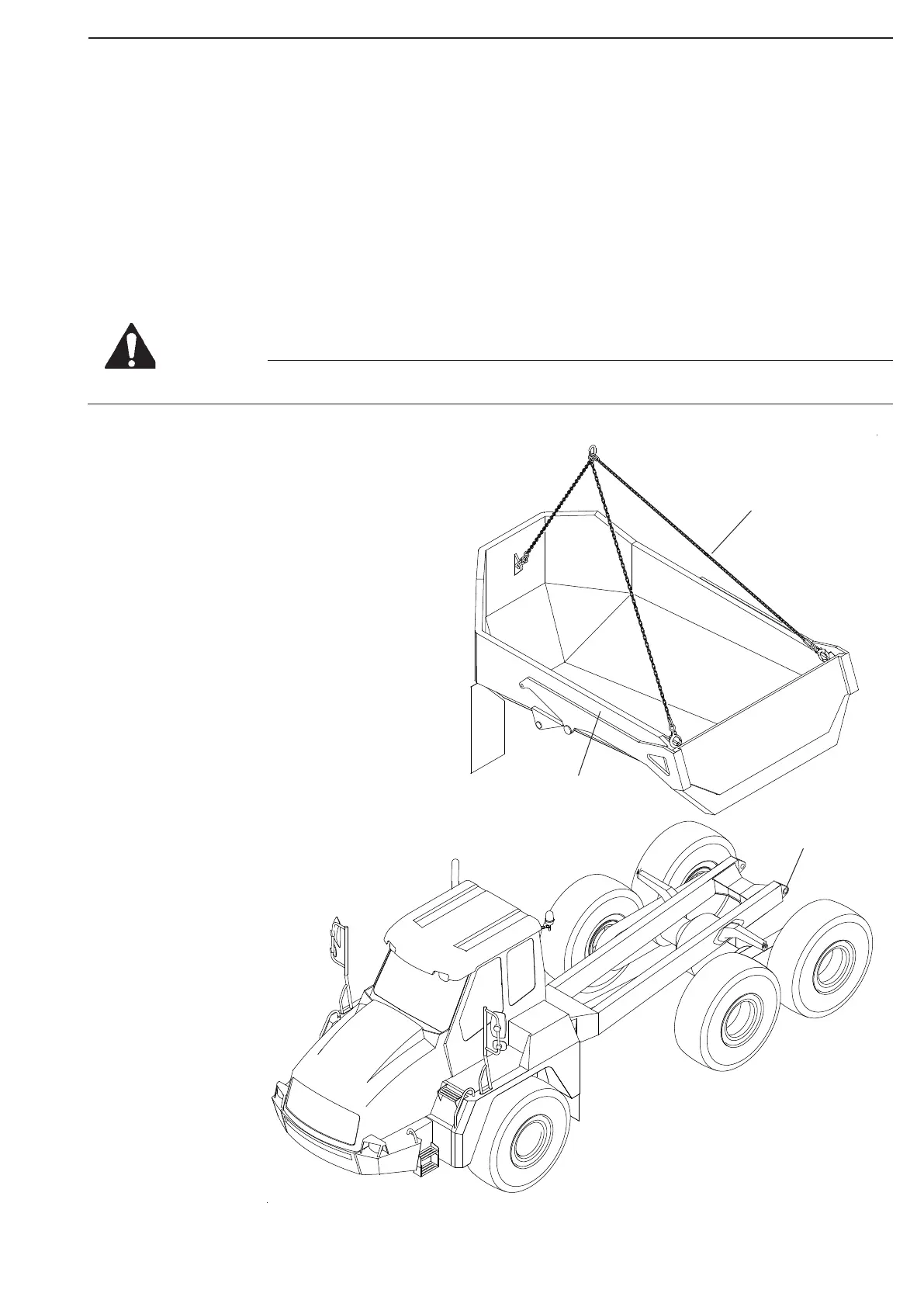

Lifting
Chain
Dumper
Body
Tilt Bearing
Brackets
Thoroughly clean the dumper body and tilt bearings for accumulated dirt.
To remove Dumber Body, remove the hydraulic tilt cylinders.
Hook the crane to the dumper body front lifting point, and lift the body to release the safety stand, and lower the
body until resting on the rear frame.
Disconnect the tail gate operating chains, if equipped, by opening one shackle on each side.
Remove tilt bearing lubrication line if fitted.
Attach the lifting device in all three dumper body lifting points, and lift to release the weight on the tilt bearings.
Remove tilt bearing bolts.
Lift body aside and place on level ground, resting on wooden blocks, tilt bearing ears shall not touch the ground.
Be aware of the risk of injury to people and equipment when handling heavy objects!
Installation
Lift body over the rear frame, and position to align tilt
bearings.
Attach tilt bearings.
Connect tail gate operating chains if equipped.
Hook the crane to the dumper body front lifting
point, and lift the body to engage the safety stand.
Attach the hydraulic tilting cylinders.
Control
Check that all parts are located as before
removal, and that all hoses are correctly
routed.
Check hydraulic functions.
Check the tilt bearings.
8.2 Dumper Body
8.2.1 Dumper Body
WARNING
Figure 2
