SHOP MANUAL
TRANSMISSION

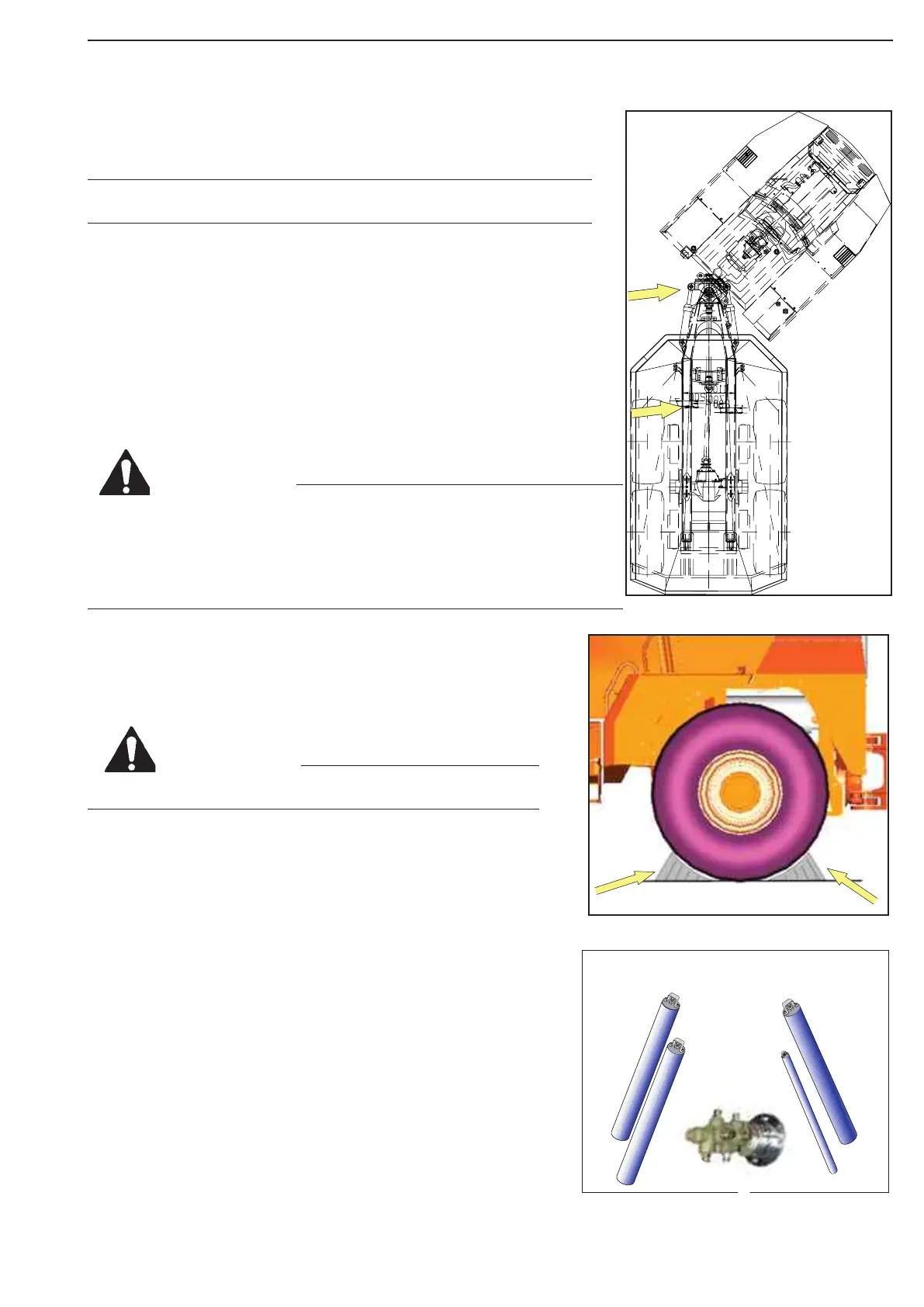

Ch 2 page 22 Ch 2 page 23
TRANSMISSION
Place wheel chocks to the front wheel
Removal of transmission, disass’y
Start with the propeller shaft in the articulation hinge.
For best working, start the engine and turn the machine to full right direction.
Release articulation propeller shaft from the transmission output flange.
Start the engine and line up the machine
Apply articulation lock.
Turn off main switch in battery case.
Raise the dump body and lock it with the safety support.
Prepare to drain the hydraulic oil:
By pumping a several times (20 - 25) with the brake pedal, to empty
the 4 brake accumulators.
Left
hand
side
Right
hand
side
Front wagon
Rear wagon
Rear wagon
Parking brake
WARNING
NOTE
Place the dump truck on level ground and apply parking brake
Figure 11
Figure 12
Figure 13
Never turn off battery main switch when engine is running
Never turn off battery main switch when ignition is on
Leave battery main switch on for atleast 5 minutes after engine has
completely stopped.
WARNING
