Doosan DA40 - Oil cooler view Se 010009

SHOP MANUAL
Engine
Ch 1 page 148

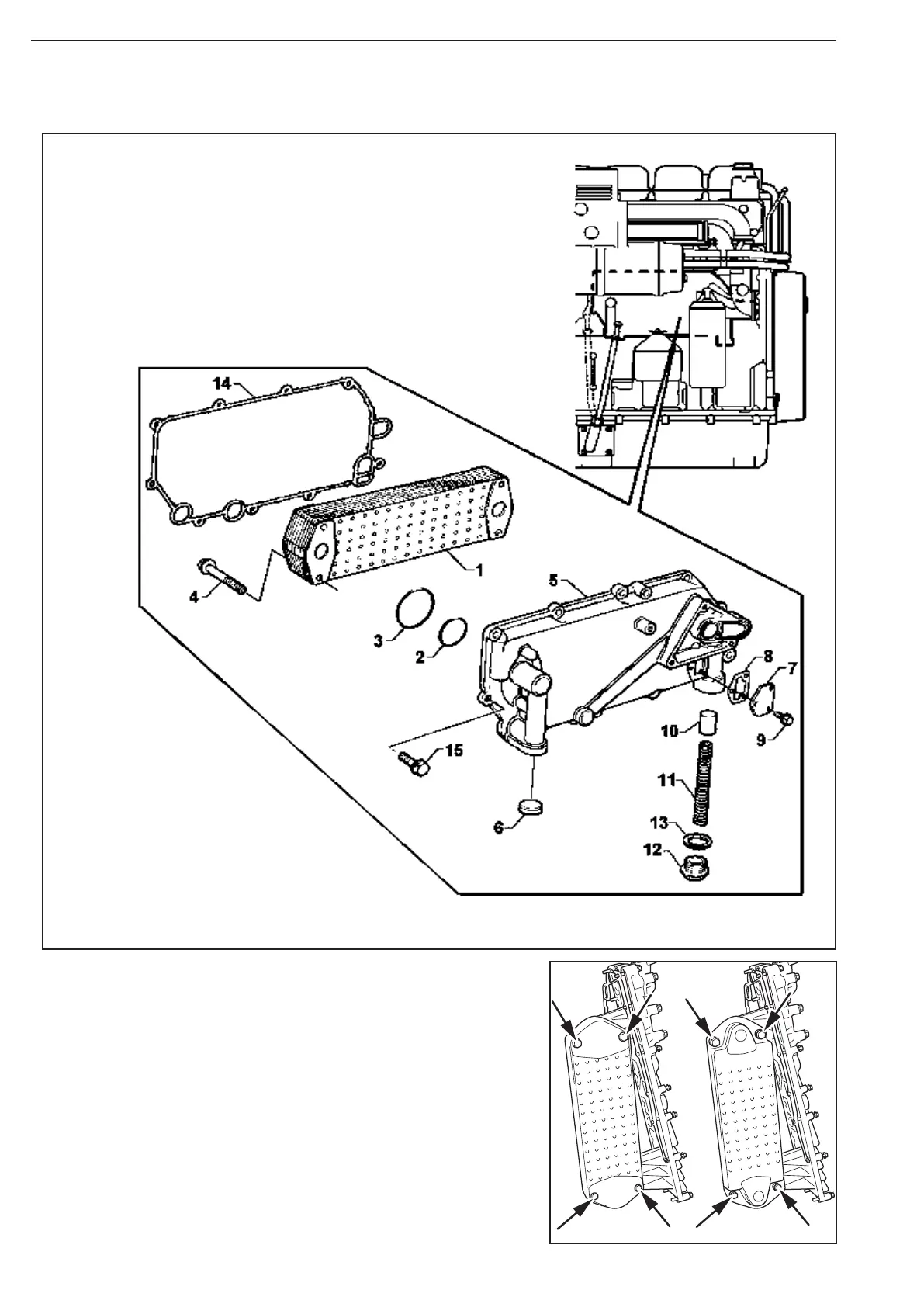

Oil cooler view Se 010009
1. Oil cooler
2. O-ring
3. O-ring
4. Flange bolt
5. Oil cooler cover
6. Core plug
7. Cover
8. Gasket
9. Bolt
10. Piston
11. Spring
12. Plug
13. Gasket
14. Gasket
15. Flange bolt
Important !
Oil cooler core tightening torques: 26 Nm
Figure 293
Figure 294
