SHOP MANUAL

HYDRAULIC

Ch 5 page 50 Ch 5 page 51

HYDRAULIC

• Double acting

• Qty 2

• Cylinder diameter DA30: 115mm

DA40: 125mm

• Piston diameter DA30: 70mm

DA40: 85mm

• Stroke DA30: 2290mm

DA40: 2614 mm

Tilt cylinders:

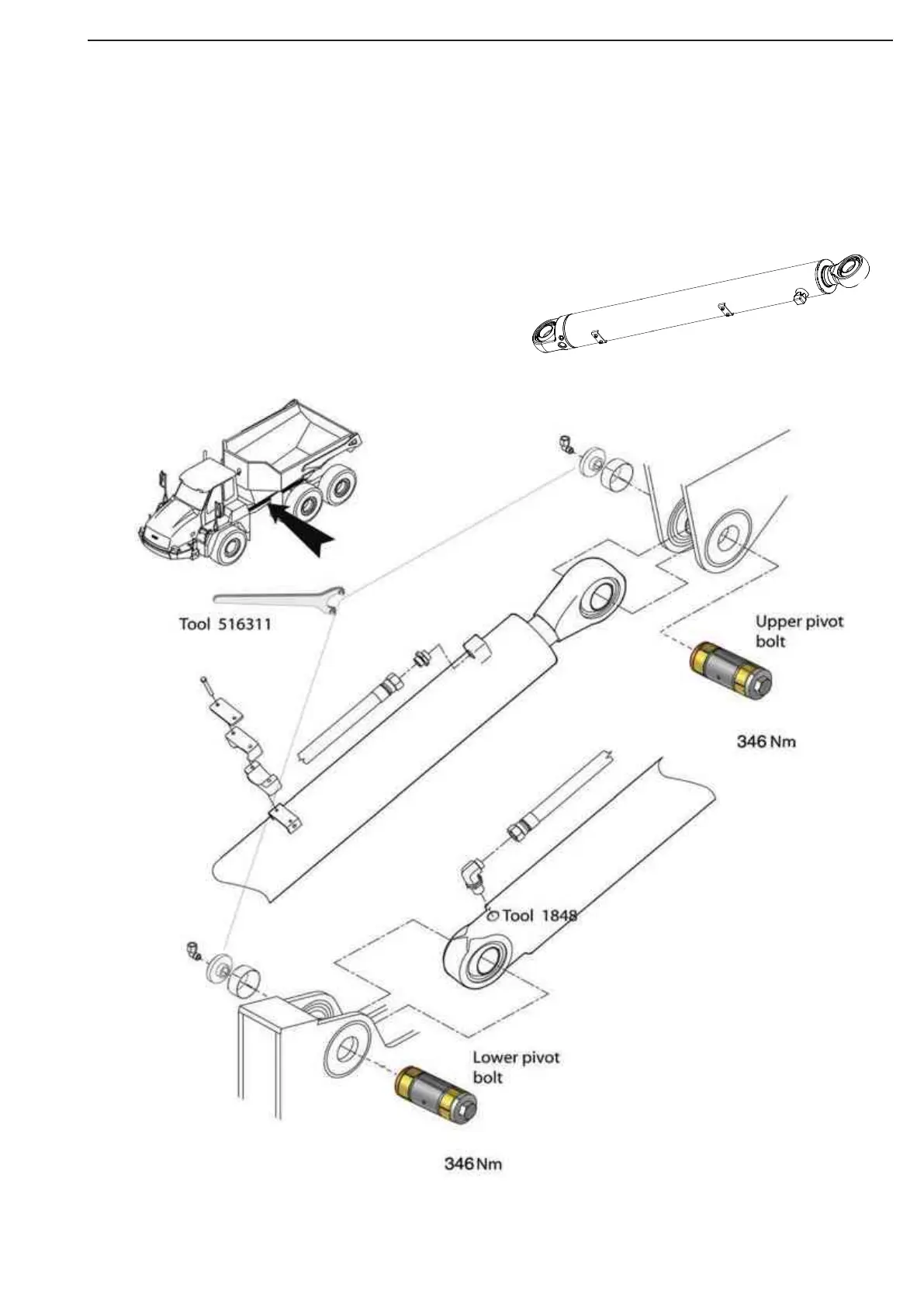

Figure 38
