Doosan DA40 - Reassembly:

SHOP MANUAL
TRANSMISSION
Ch 2 page 44 Ch 2 page 45
TRANSMISSION
Reassembly:

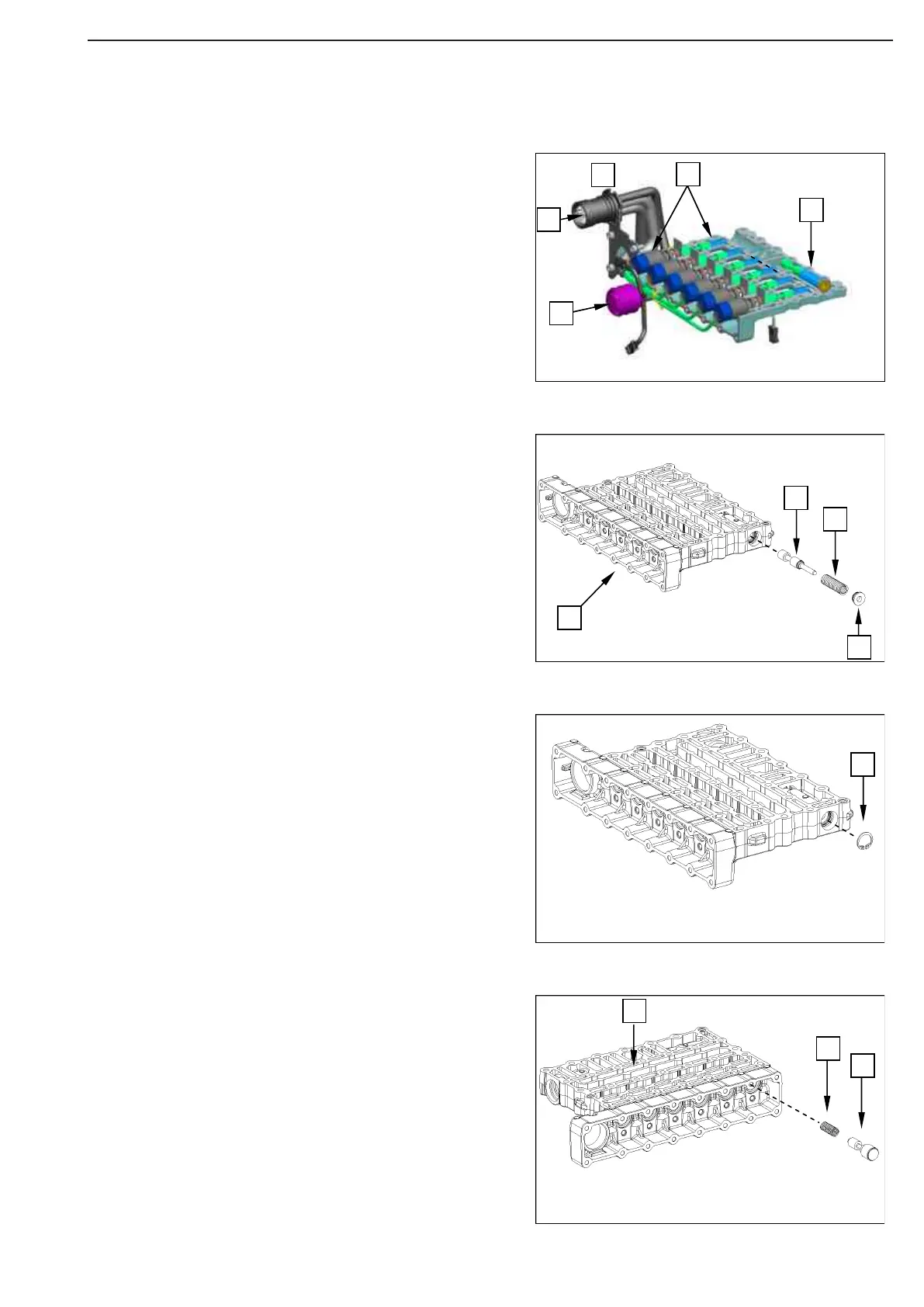

Shifting block I:
1 = pressure controller with follow-on slide
2 = pressure reducing valve
3 = wiring harness ErgoControl II
• A = connection of wiring harness shifting block II
• B = connection of control unit (TCU)
Insert the pressure reducing valve consisting of:
• plug (1)
• compression spring (2)
• piston (3)
into the valve block (4).
Fix the pressure reducing valve with retaining ring 18x1 (1).
Insert all follow-on slides consisting of:
• piston (1)
• compression spring (2)
into the valve block (3).
1
3
1
2
4
A
1
2
3
B
1
2
3
Figure 93
Figure 94
Figure 95
Figure 96
