Doosan DA40 - Attachment of LKV axle insert to transmission

SHOP MANUAL
TRANSMISSION
Ch 2 page 50 Ch 2 page 51
TRANSMISSION

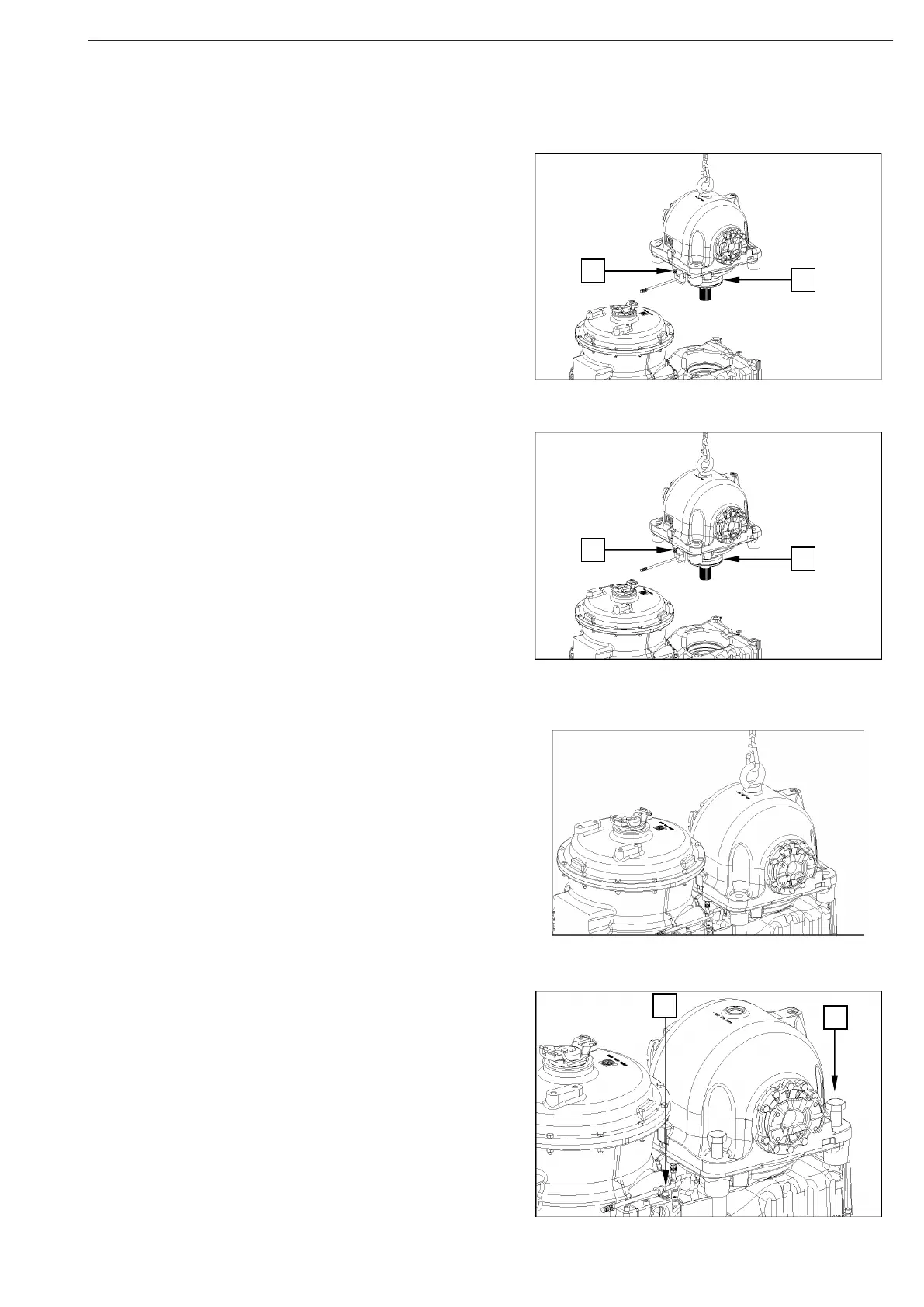

Remove breather (1) and O-ring (2).
Attachment of LKV axle insert to transmission
Fit O-ring 180x3 (1) and grease it.
Mount breather M10x1 (2).
Tightening torque breather MA = 12 Nm
Use the lifting tackle to bring the LKV axle insert into contact
position with the transmission housing.
Fit hexagon screw (1) and fix the breather with clip to the
transmission housing using a cylindrical screw(2)
Tightening torque screw(1) (M30x150) MA = 1900Nm
Tightening torque screw(2) (M10x50) MA = 46 Nm
2
1
2
1
1
2
Figure 117
Figure 118
Figure 119
Figure 116
