Engine

SHOP MANUAL

Ch 1 page 111

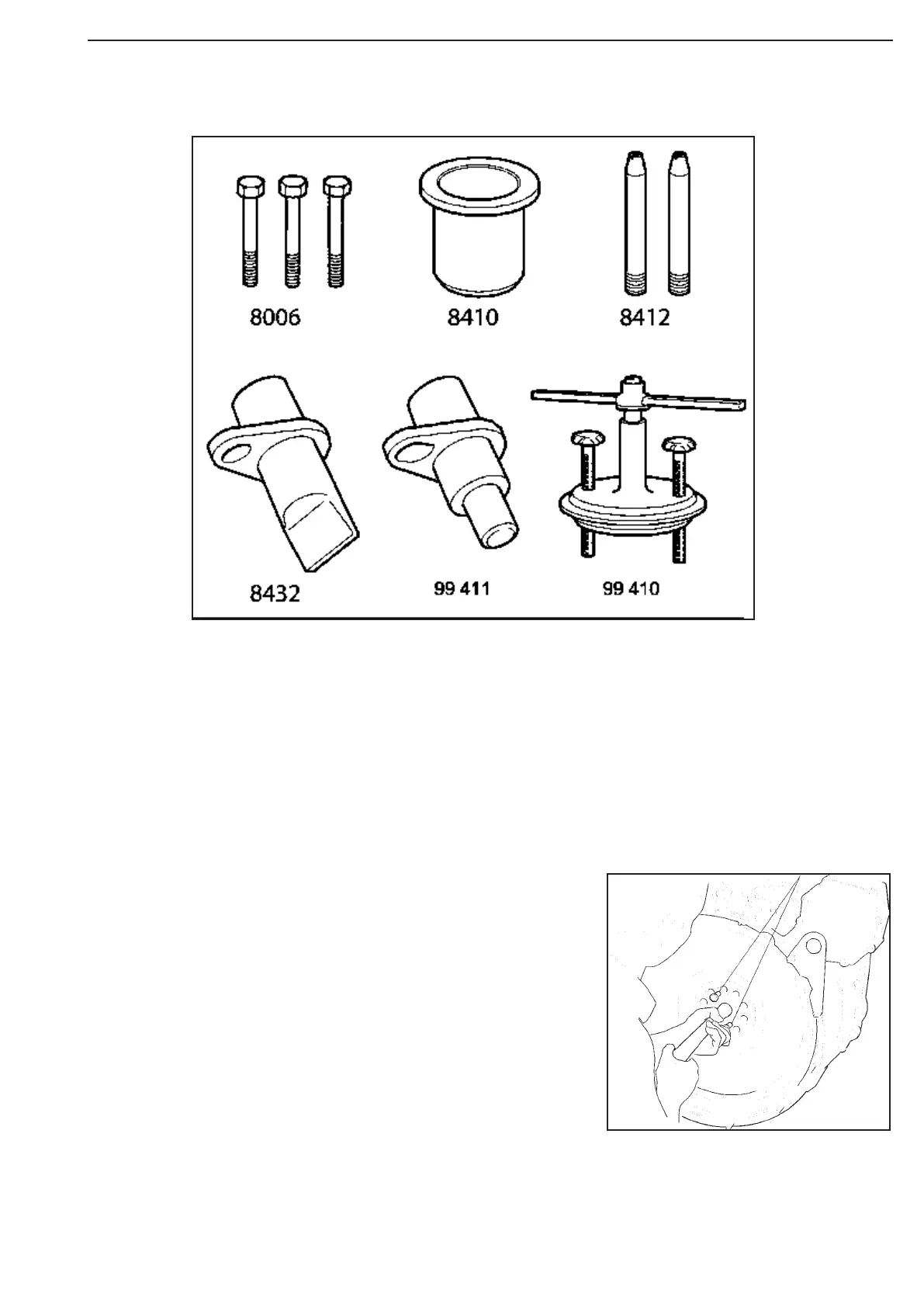

Special tools

8006

Removing the ﬂywheel

8006 Puller bolts

8410 Drift

8412 Guide pins

8432 Assembly tool

512556 Assembly tool

512555 Assembly tool

Not illustrated:

512559 Air powered sprayer

512557 Cartridge adapter

512558 Nozzle

1. Remove the engine speed sensor(s) in the

ﬂywheel housing.

2. Remove the bolts for the ﬂywheel.

14” ﬂywheel: Also remove the washer.

3.Pull off the ﬂywheel from the crankshaft

using puller bolts 8006

Figure 211

Figure 212
