Ch 6 page 65
ELECTRICAL SYSTEM
SHOP MANUAL
1 T21, charge air temperature
sensor
2 T122, charge air pressure
sensor
3 T33, coolant temperature sensor
4 T5, oil pressure sensor
5 T74, T75, engine speed sensors
7 T111, fuel pressure sensor
8 V141-V148, XPI injectors
9 V120, fuel inlet metering valve
10 T125, exhaust back pressure
sensor
17 M1, starter motor
18 P3, alternator

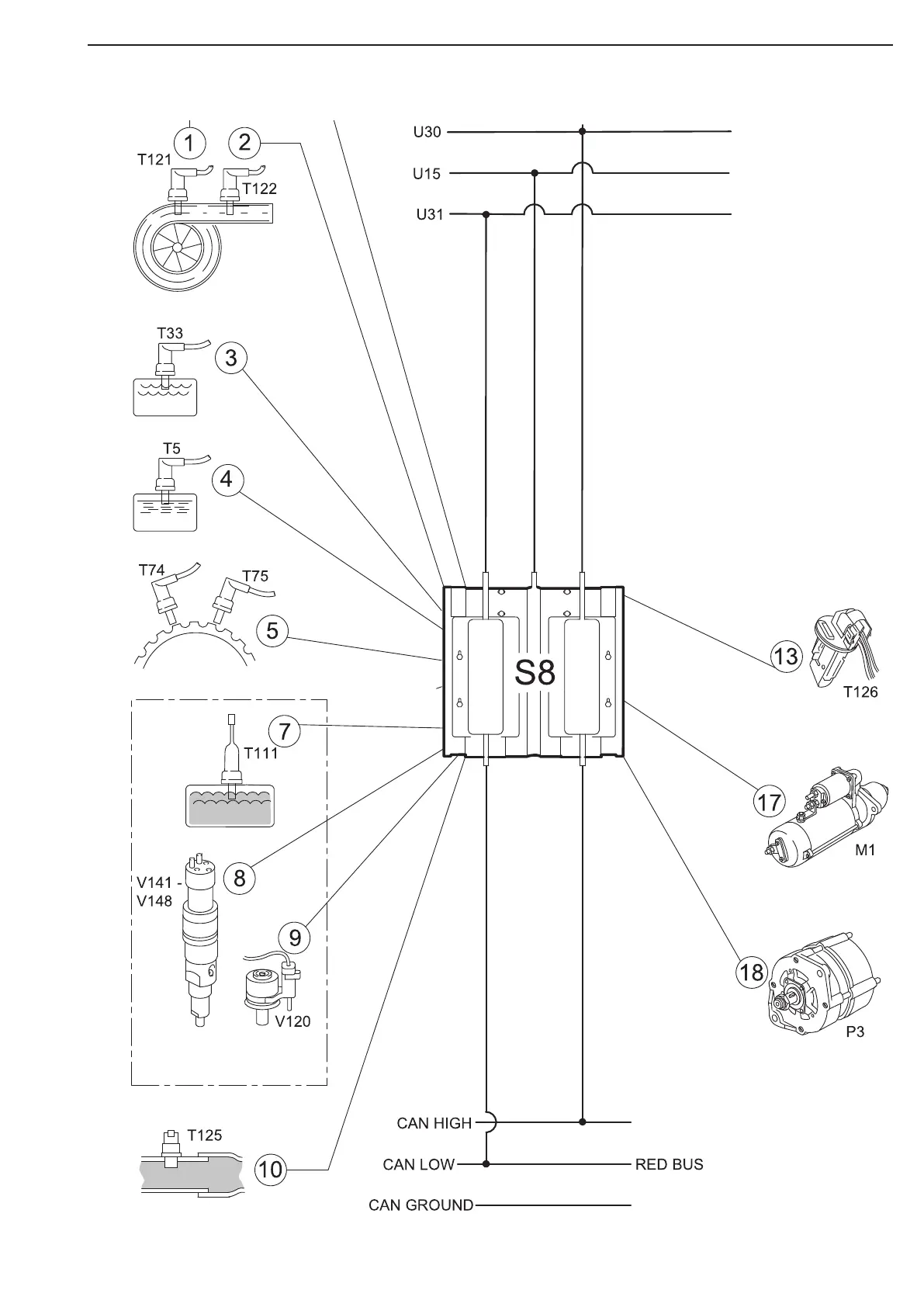

Engine Management System S8
Figure 48
