FRONT WAGON
7.5.4 Cab Door
The Cab Door is the only access to the cab, and should close properly to ensure driver safety and comfort.
If door for some reason has to be removed, proceed as follows.
Open door fully and pry rear bottom corner of door panel out to disengage some of the velcro securing panel,
to get access to the four bolts fastening the door check arm to the door. Remove the four bolts.
Have someone to support the door, and remove the four bolts fastening the hinge to the door.
Remove the door.
If the door is going to be replaced with a new unit, the configuration of the new unit will indicate which parts that
should be moved over from the old door.
Installation
If the same door as removed are going to be refitted, the procedure will be the same as for removal, in opposite
order.
If a new door is going to be fitted, only the rubber strip should be attached before door is replaced in cab.
Door replacement is easier if side panel, door glass, and door locking mechanism are replaced after the door is
in place, and adjusted.
Lubricate and adjust locking mechanism for firm closing and easy opening. Lubricate the hinges.
Adjust the mudguard mounted door bumper if necessary.

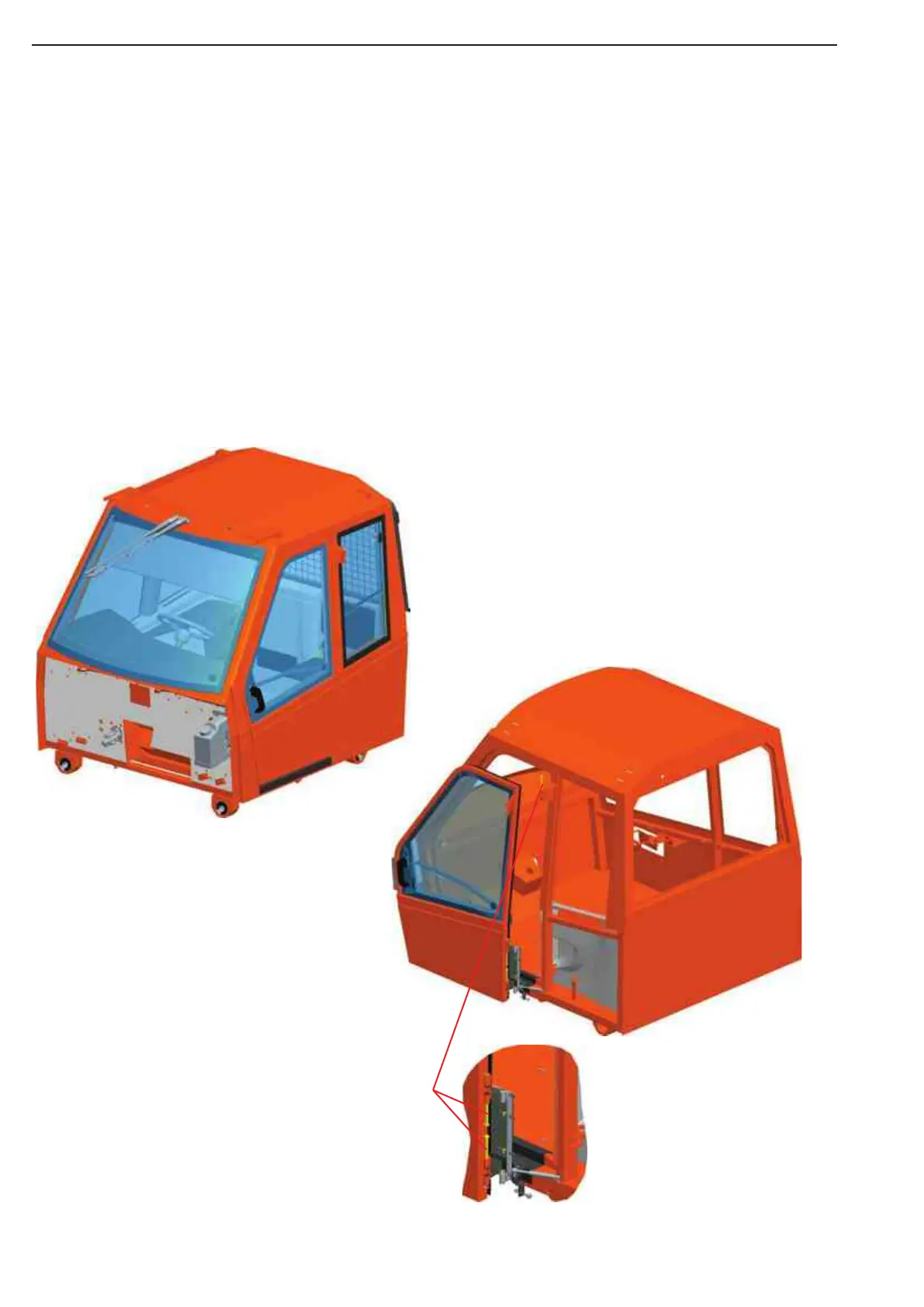

Figure 108
Remove the pins from
the door hinges
