Doosan DA40 - Rear wheel hub,; Outer view and section drawing

SHOP MANUAL
DRIVE LINE
Ch 3 page 148 Ch 3 page 149
DRIVE LINE

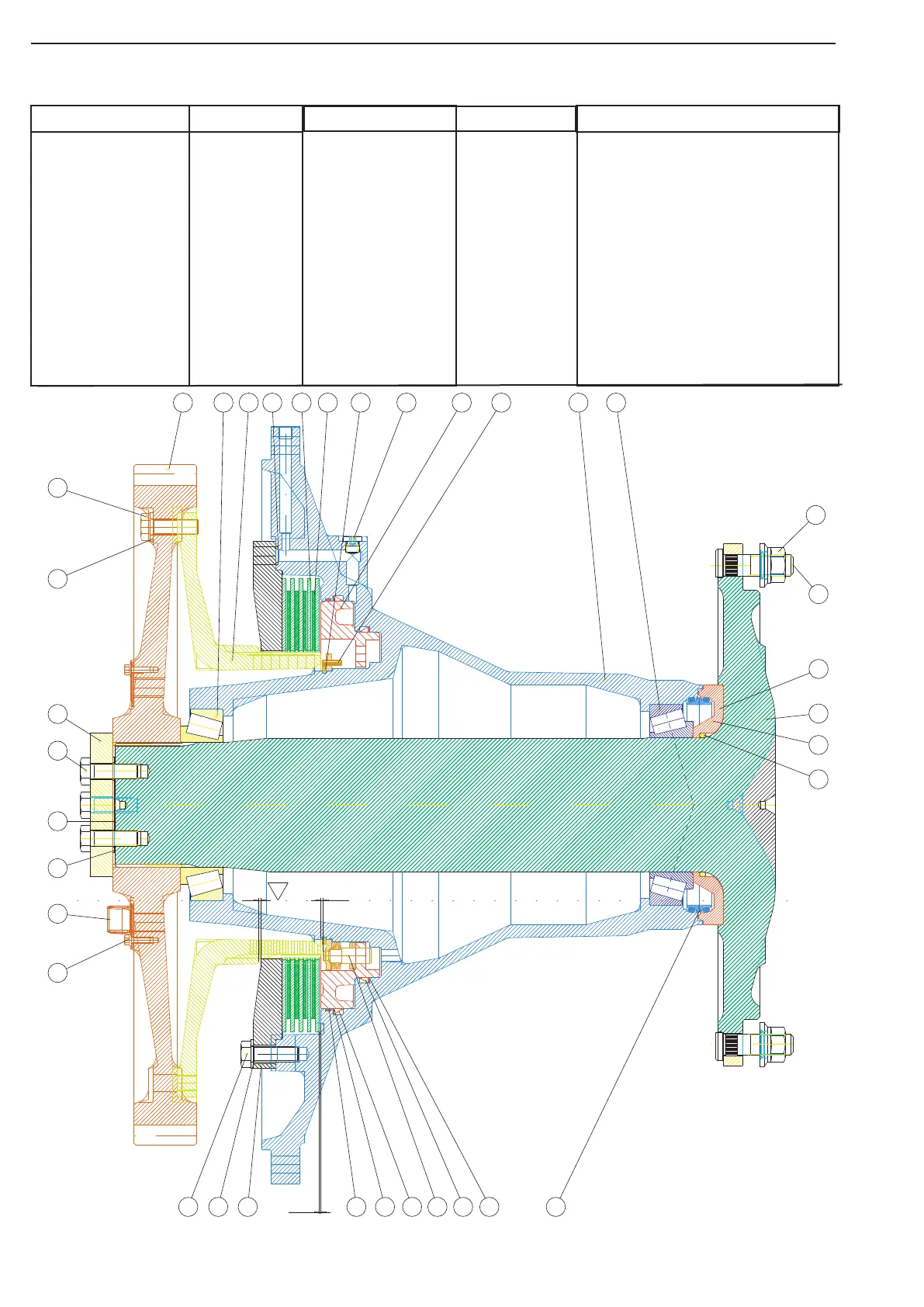

Outer view and section drawing
Rear wheel hub,
B
2,2( )
2
(
)
1
2
3
4
6
7
89
10
35
29
31
30
19 28
26
25
20
21
22
2324
27
34
36
37
13
14
15
16
17
18
11
12
38
5
1,7
+0,4
0
1 Wheel axle 1
2 O-ring 1
3 Ring 1
4 Wheel bolt 20
5 Wheel nut 20
6 Roller bearing 1
7 Hub housing 1
8 Roller bearing 1
9 Gear wheel 1
10 Carrier 1
11 Screw 16
12 Washer 16
13 Ring 1
14 Screw 8
15 End plate 1
16 Shim 1
17 Shim 1
18 Screw 4
19 Plug 1
20 Seal ring 1
21 Support 1
22 Seal ring 1
23 Support 1
24 Guide 1
25 Seal ring 1
26 Piston 1
27 Return mech- pi 1
28 Slot. pin 6
29 Lock 1
30 Brake disc 4
31 Brake disc 0
32 Brake disc 5
33 Brake disc 0
34 Flange 1
35 O-ring 1
36 Screw 20
37 Washer 20
38 Set screw 2
Pos Description Qty
Pos Description Qty
Pos Description Qty
Figure 449
