SHOP MANUAL
Engine
Ch 1 page 66

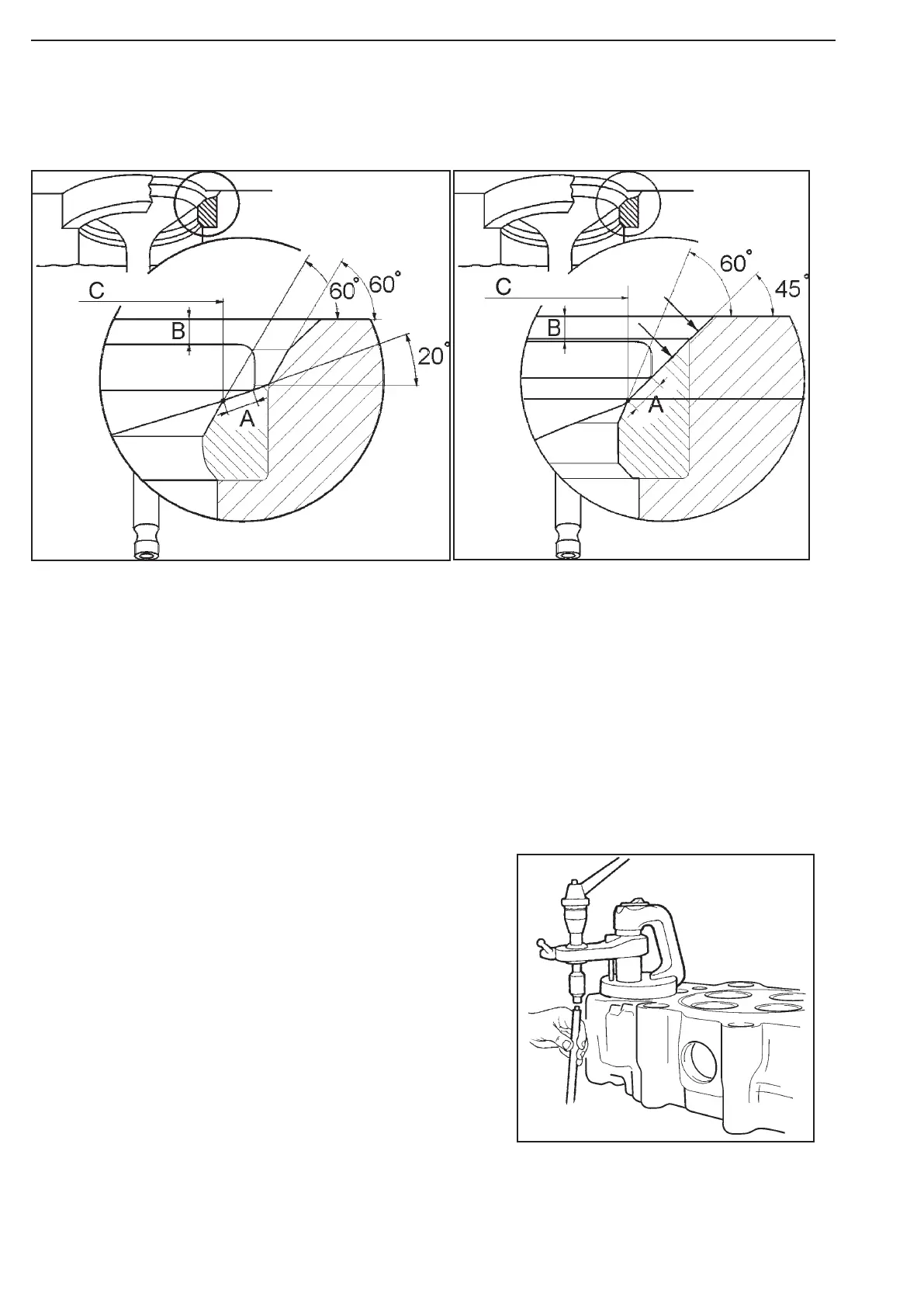

Machining the valve seats insert
Machining values
Inlet valve
A = 1,9 - 2,6 mm
B = 0,75 - 1,8 mm
C = diameter 39,8 +/- 0,5 mm
(setting value for machining tool)
Exhaust valve
A = 1,8 - 2,6 mm
B = 0,66 - 1,8 mm
C = diameter 37,9 +/- 0,5 mm
(setting value for machining tool)
Work description
The following description applies to valve seat
cutter 512265.
Machining values and over-sized valve seat
inserts, see Speciļ¬cations and above.
1. Check that the contact surface and the
magnetic base are smooth and clean. Clean
the valve bushings.
2. Select the largest spindle which slides
easily into the valve guide.Insert the guide
spindle and turn the feed screw to its
uppermost position.
512265
Figure 113 Figure 114
Figure 115
