3. Select and fit the cutter.
4. Release the quick-action lock and move the
pivot plate to the upper position with the
adjusting screw.
5. Set up the dial on the cutter adjuster using a
valve.
6. Adjust the cutter. Diameter 37.9 mm or
39.8 mm, see Machining values.
7. Disconnect the magnetic base (position 2).
Insert the guide spindle into the valve
bushing. Adjust the pivot plate so that the
distance between the cutter and the valve seat
is approximately 1 mm.
Centre the tool precisely.
8. Connect the magnetic base (position 1).
9. Apply the quick-action lock. Make sure the
crank can be turned easily. If not, redo the
centering.

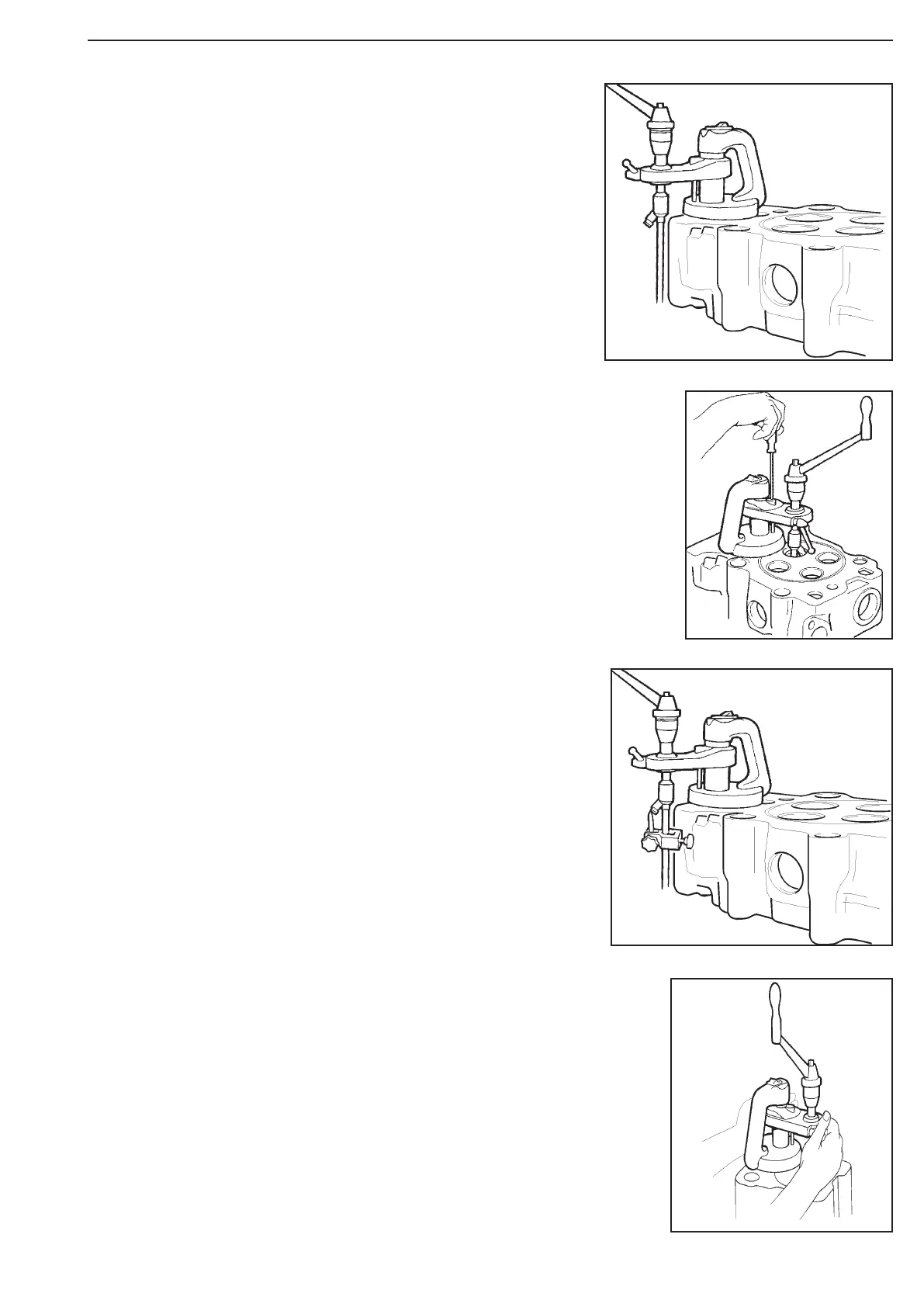

Figure 116
Figure 117
Figure 118
Figure 119
