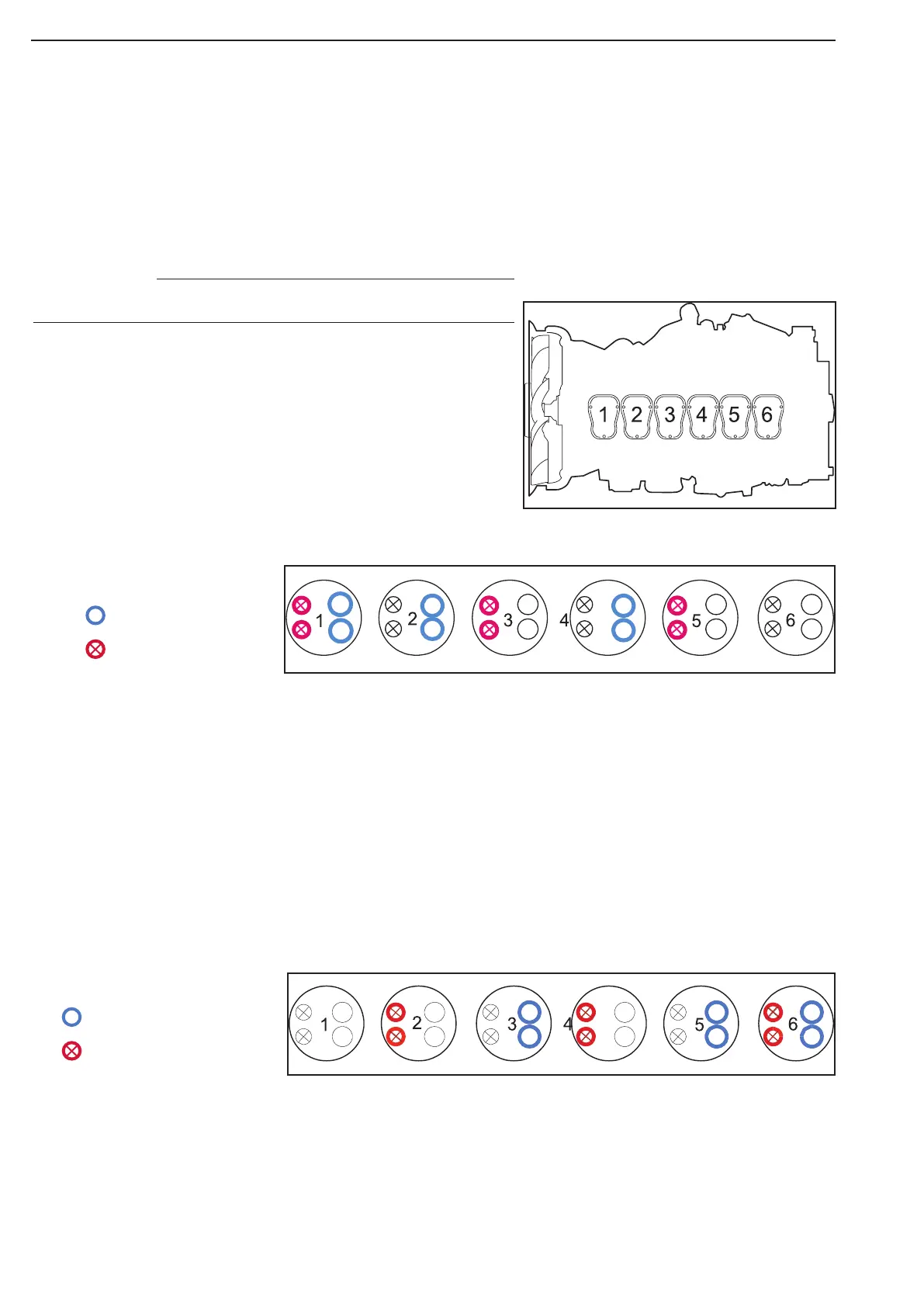

Cylinder configuration, 6 cylinder engines
Set cylinder 1 exactly at TDC after the compression stroke.
Adjust the following valves:
cyl. 1 Intake valve and exhaust valve
cyl. 2 Intake valve
cyl. 3 Exhaust valve
cyl. 4 Intake valve
cyl. 5 Exhaust valve
Turn the crankshaft exactly one revolution.
Adjust the following valves:
cyl. 2 Exhaust valve
cyl. 3 Intake valve
cyl. 4 Exhaust valve
cyl. 5 Intake valve
cyl. 6 Intake valve and exhaust valve
Intake valve
Exhaust valve
Intake valve
Exhaust valve
It is not possible to read the flywheel position on the lower part
of the flywheel housing. To read, use the TDC top inspection
hole, the cab must be tilted up.
Use the cab support when reading of marks on the ywheel
