Doosan DA40 - Oil pump, brake cooling circulate (DA40); Exploded view

Engine
SHOP MANUAL
Ch 1 page 171
Oil pump, brake cooling circulate (DA40)

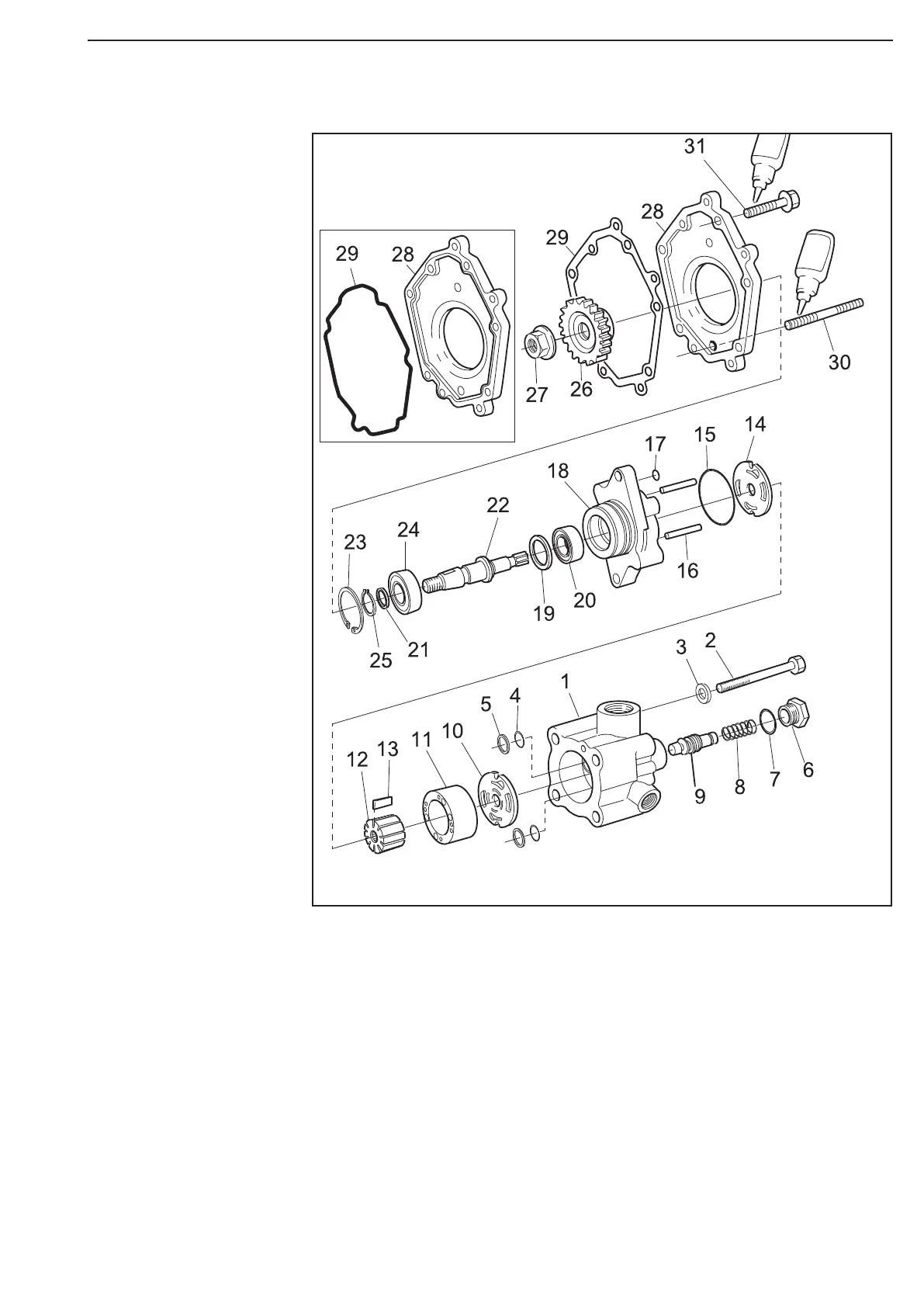

Exploded view
1 Pump housing
2 Bolt, 4 off
3 Washer, 4 off
4 O-ring, 2 off
5 Support ring, 2 off
6 Plug
7 O-ring
8 Compression spring
9 Control valve
10 Pressure plate
11 Rotor housing
12 Rotor
13 Vanes
14 Wear plat15e
15 O-ring
16 Guide pin, 2 off
17 O-ring
18 End plate
19 Spacing ring
20 Sealing ring
21 Washer
22 Axle
23 Retaining ring
24 Bearing
25 Retaining ring
26 Gear
27 Nut
28 Flange
29 Gasket
30 Stud, 2 off
31 Bolt, 5 off
Figure 334
