11. Assembly: Fit the rotor in the rear housing. Remember to fit the
spacing washer between the rotor and bearing in the front housing.
Fit the front housing.
Important!
Check that the marks on the
housings are aligned.
12. Screw on the housing and fit the carbon brushes.
13. Fit the nut and the pulley.
The pulley nut must be tightened to the correct torque, other-
wise there is a risk that it will come loose.
CAUTION

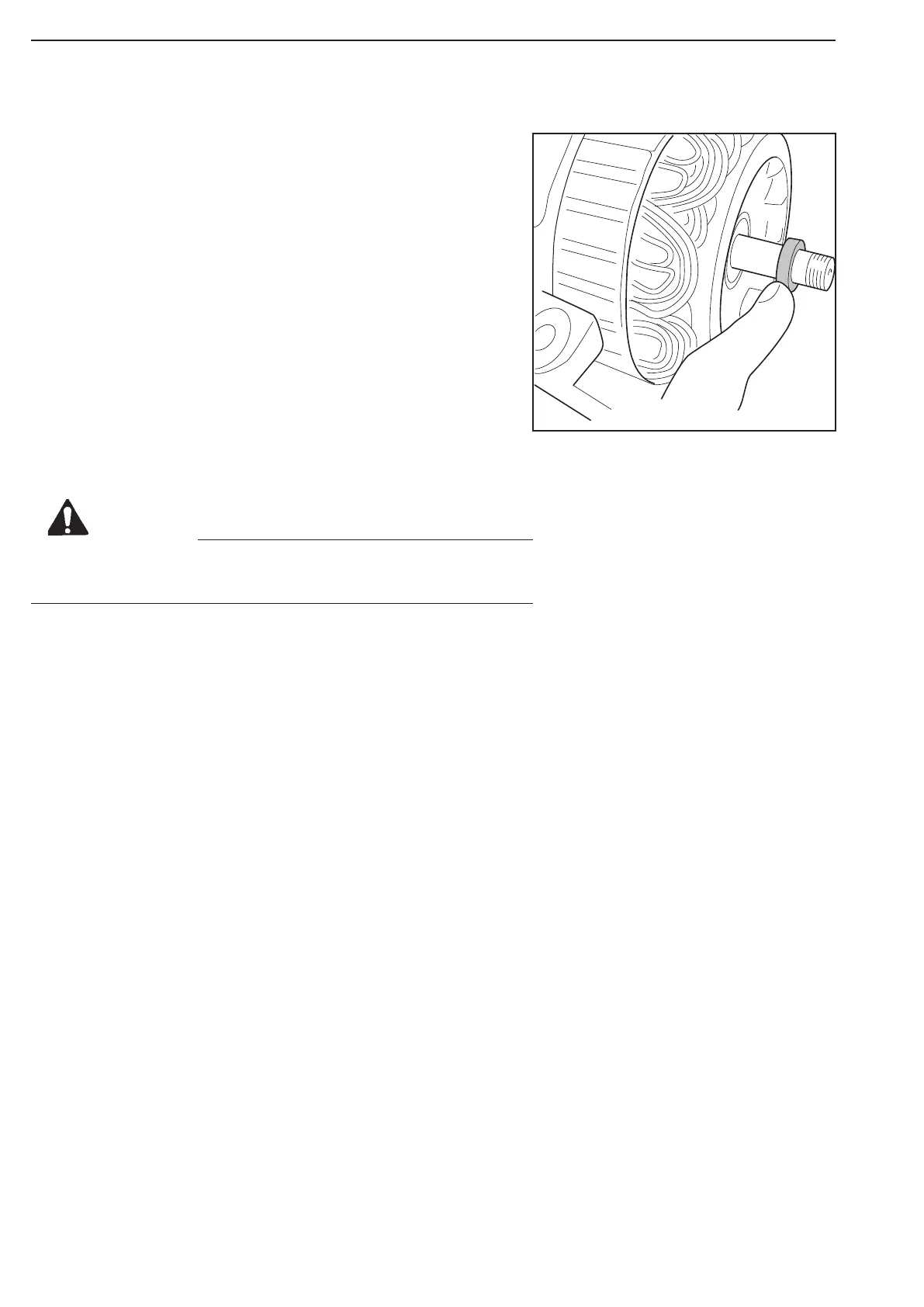

Figure 333
