Doosan DA40 - Removal and refitting of solenoid valves of shifting block II and temperature sensors; Removal:

SHOP MANUAL
TRANSMISSION
Ch 2 page 38 Ch 2 page 39
TRANSMISSION

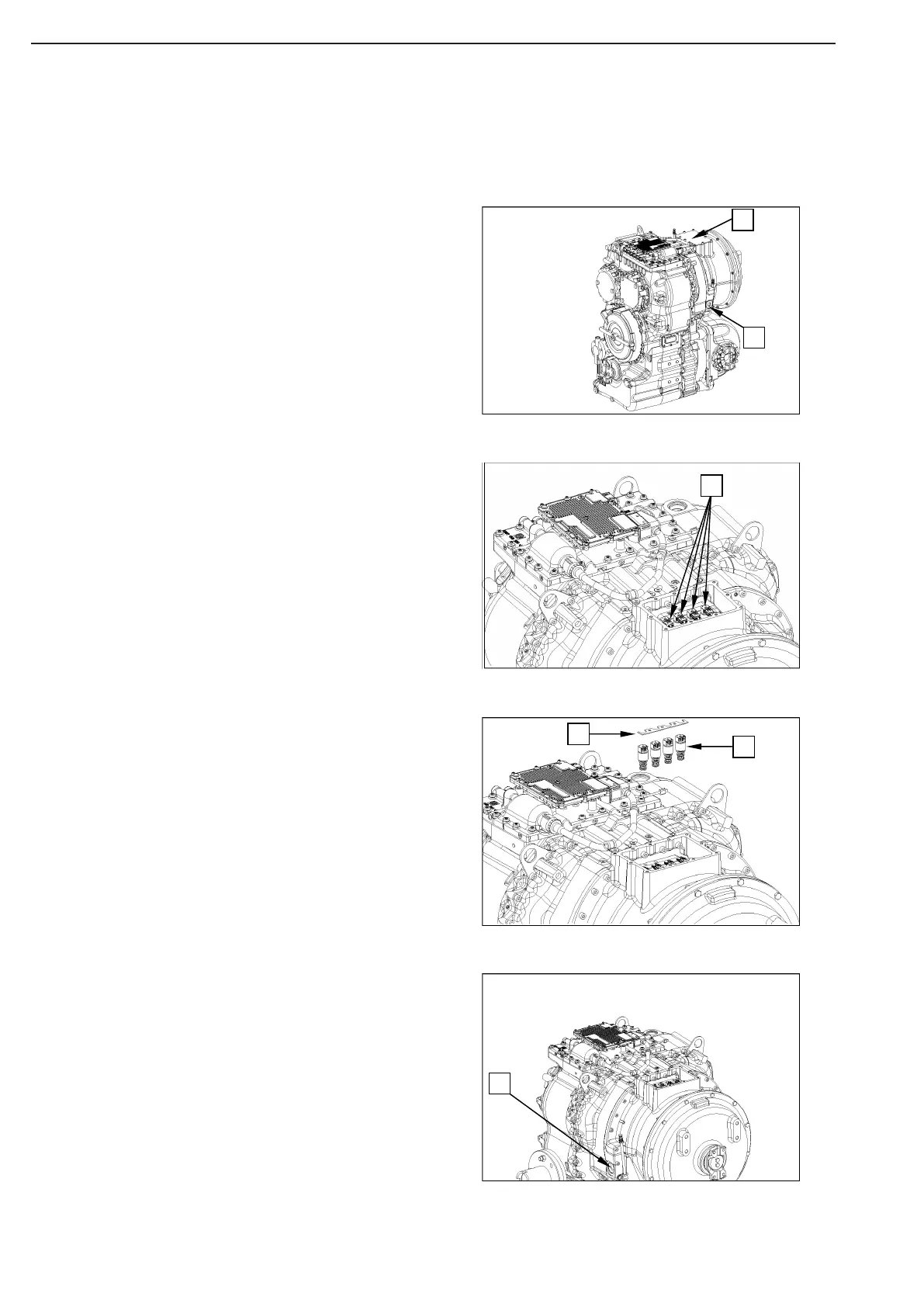

Removal and refitting of solenoid valves of shifting block II and temperature sensors
Removal:
Loosen cylindrical screws and remove the cover (1) with seal.
Loosen the screw plug (2) with O-ring.
Open the lockings of plug connections for wiring harness/
pressure, controllers / temperature sensor (1) and disconnect
the plugs. Loosen the cylindrical screws of the clamping plate.
Remove clamping plate (1) and pressure controllers (2).
Open the lockings of plug connections for wiring harness/
temperature sensor (1) and disconnect the plug.
2
1
1
2
1
1
Figure 69
Figure 68
Figure 67
Figure 66
