FRONT WAGON
7.4.1 Fender RH
The right hand Fender contains an air supply tank and the safety support for the cab, accessible by a hatch.
The hatch is also the base for the right hand head lamp, as well as serving as working platform for engine main-
tenance.
Removal
Thoroughly clean the fender and the area around for accumulated dirt.
Make sure the main battery switch is turned off. (Ref. Operation & Maintenance manual)
Open the bonnet.
Release the pressure in the air system. (Ref. Operation & Maintenance manual)
Open the fender hatch.
Lift out the cab safety support.
Remove the air tank, and pull back the hose.
Disconnect the electrical cable to the head lamp, remove the clamps, and pull the cable back from fender.
Remove the head lamp protection by removing four bolts and nuts, and remove the head lamp.
Remove external parts that will be re-used if fender is going to be replaced by a new.
Release the four bolts securing the fender to the front frame, and lower fender to ground.
Check attachment points, and repair any damages to ensure proper fit of the new fender.
Installation
Position the fender on the front frame, and secure by tightening the four fastening bolts.
Replace the external parts. New parts when necessary, or re-use from the old fender where possible.
Replace the head lamp and the cable using the same amount of straps and clamps as removed.
Replace the air tank and the hose.
Put back the cab safety support.
Control
Check that all parts are located as before removal. Close hatch, and close the bonnet.
Turn the main battery switch on, and check the function of the lights.
Adjust head lamp if necessary.
Fender RH

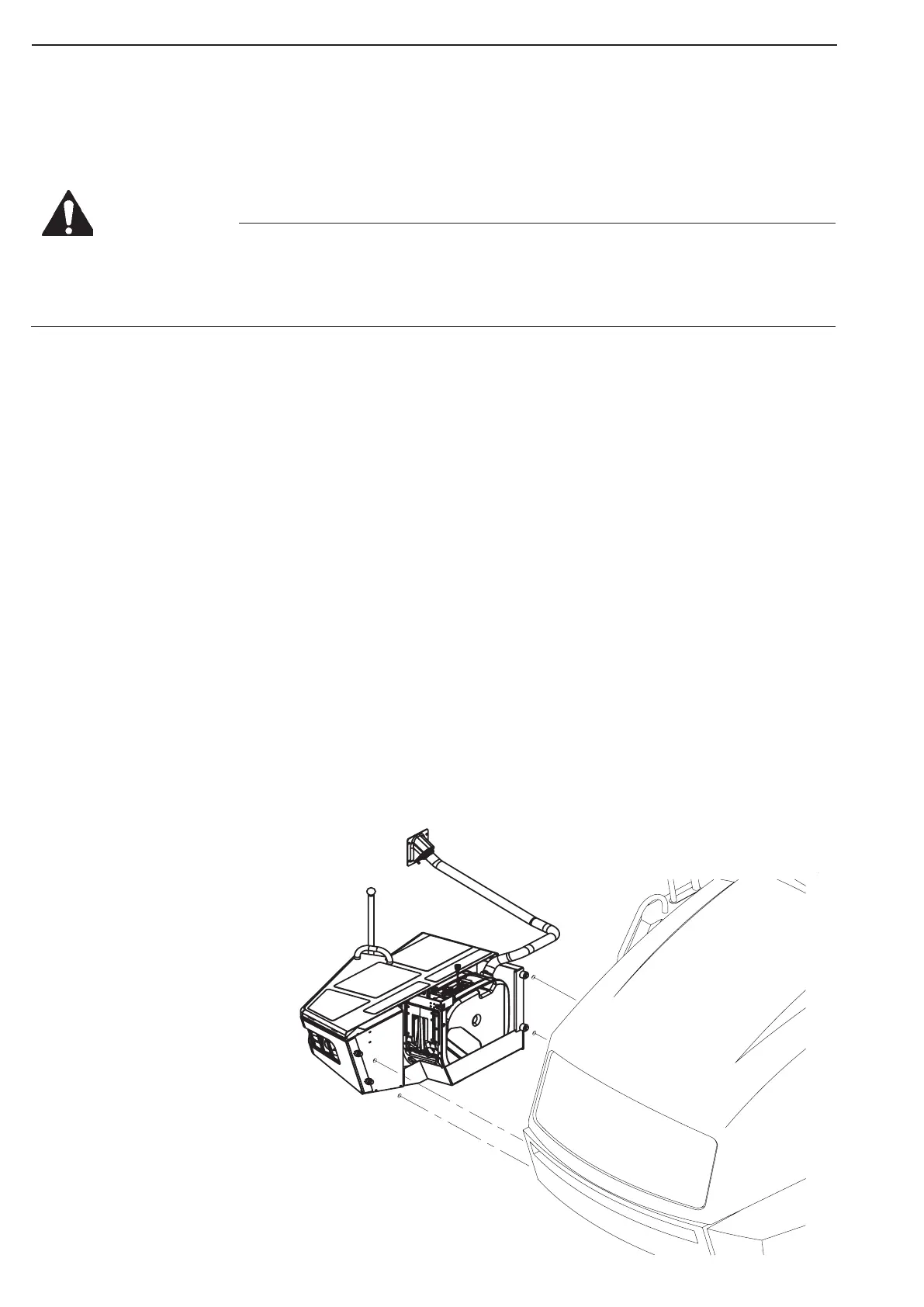

Figure 82
Never turn off battery main switch when engine is running
Never turn off battery mainSwitch when ignition is on
Leave battery main switch on for atleast 5 minutes after engine has completely stopped.
