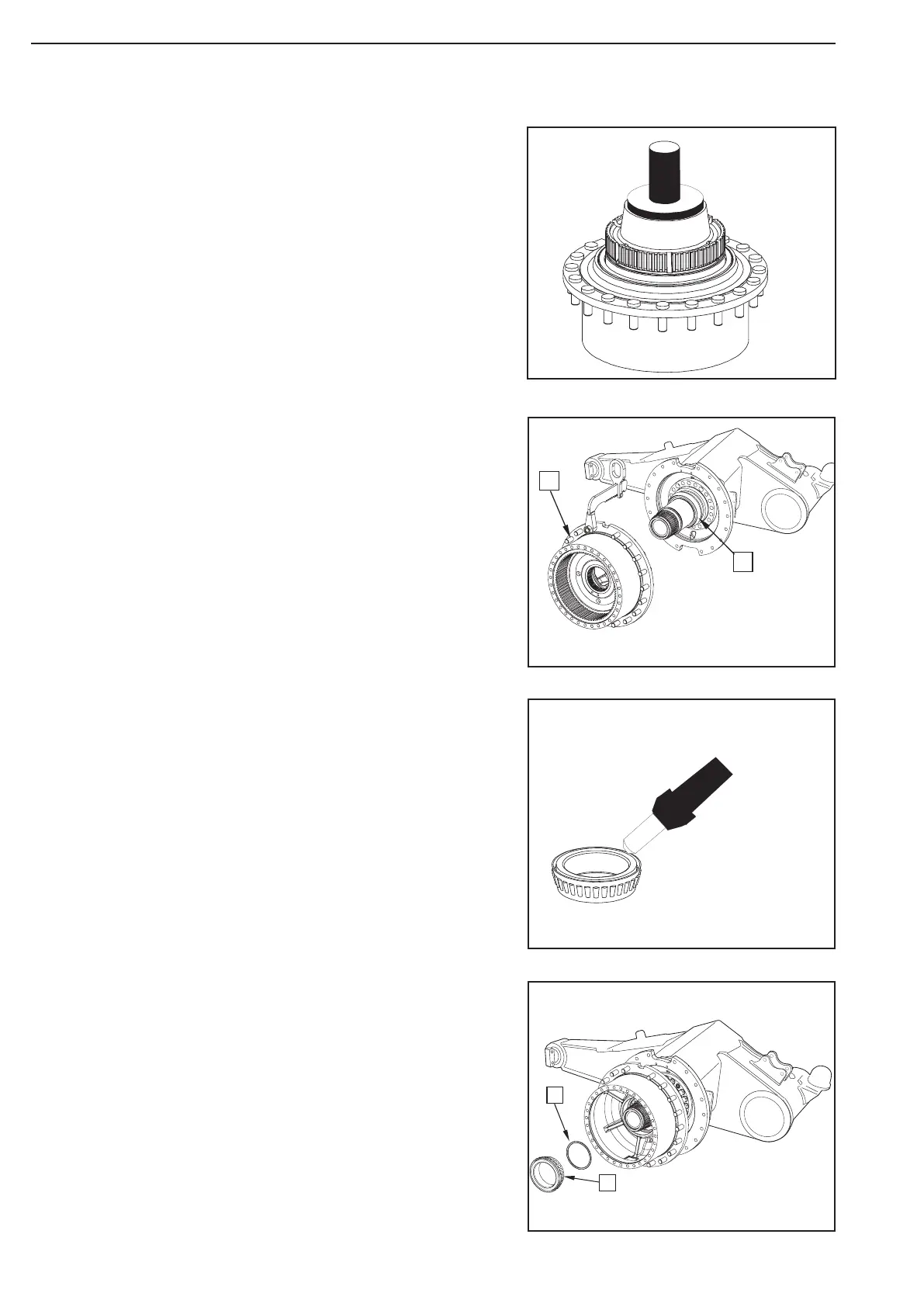

Adjust the rolling resistance of the wheel bearing
Mount the bearing inner ring (1) onto the hub carrier.
By means of the lifting tackle locate the hub (2) cautiously until
contact is obtained.
(S) Lifting tackle 514656
Heat inner diameter of the bearing inner ring (approx. 120 ° C).
(S) Hot-air blower 230 V 504193
(S) Hot-air blower 115 V 504194
Mount ring (1) and bearing inner ring (2) onto the hub carrier
until contact is obtained.
Use the ring removed at disassembly to adjust the rolling
moment of the wheel bearing!
Empirical value s = 5.45 mm
Wear safety gloves!
Press both bearing outer rings into the hub until contact.
(S) Mounting tool 505755
(S) Handle 504256
Figure 60
Figure 59
Figure 58
Figure 57
