SHOP MANUAL
DRIVE LINE
Ch 3 page 26 Ch 3 page 27
DRIVE LINE

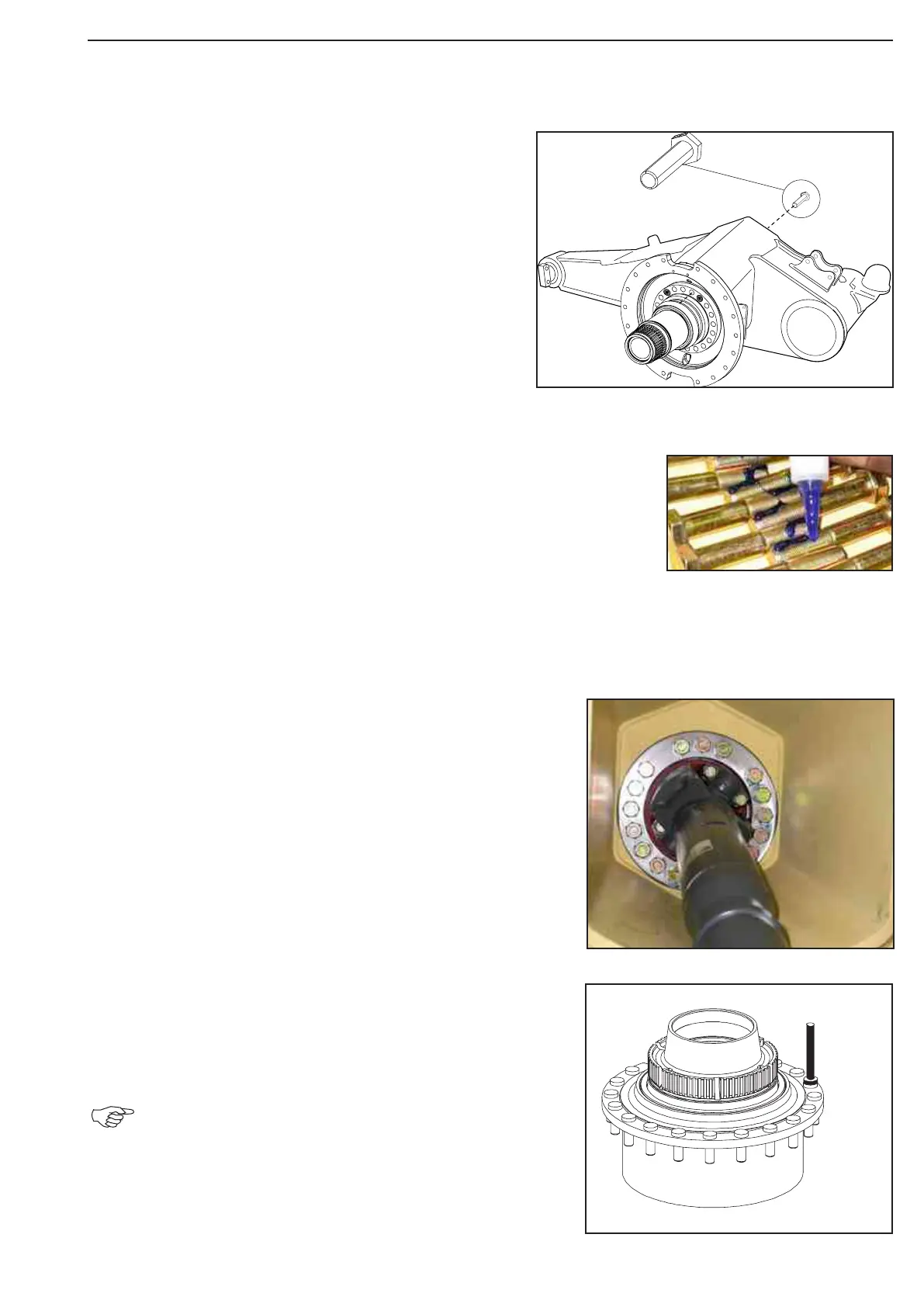

Mount the hub carrier by means of the
lifting tackle.
Observe the radial installation position of the
hub carrier!
(S) Lifting strap 514655
1
Wet thread of hexagon screws with Loctite type no. 262.
Tighten the bolt connection with hexagon screws (1).
Screw: M18x1.5x100 -10.9
Locking liquid: Loctite 262
Tightening torque: 440 Nm
Press the wheel bolts into the output shaft until contact.
(S) Wheel bolt puller – basic device 505767
(S) Insert (M22x1.5) 505766
Special tool (S) can only be used for
repair solution when replacing single
wheel bolts!
Figure 53
Figure 54
Figure 55
Figure 56
