SHOP MANUAL
DRIVE LINE

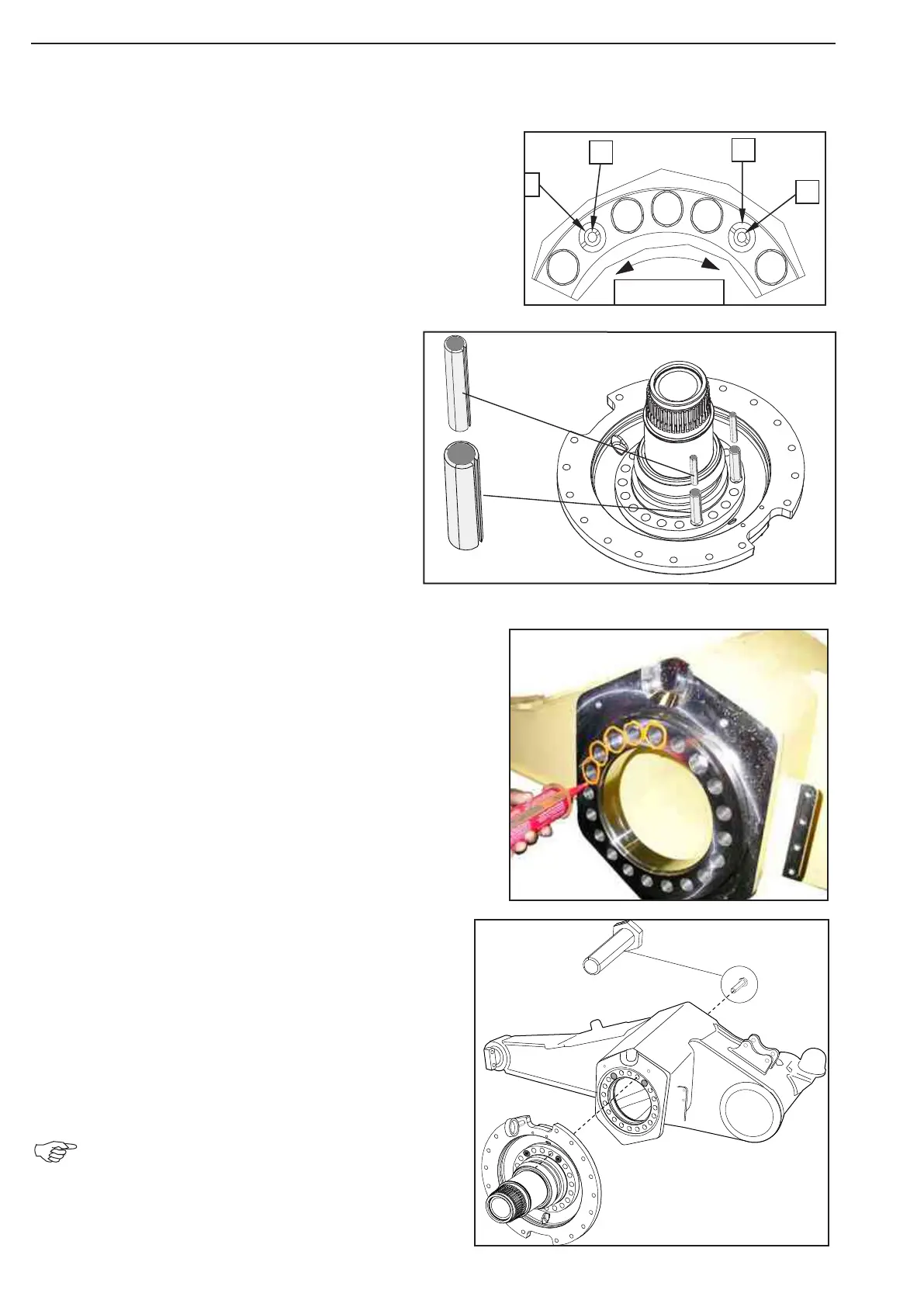

Ch 3 page 26 Ch 3 page 27
DRIVE LINE
Wet the mounting face of the axle casing with
sealing compound.
(Loctite Type No. 574).
Preassemble the slotted pins in the hub carrier and the brake
anchor plate before assembling to the axle arm
Assemble of the separated parts
2
1
2
Power bearing
Clean the connection surface (1)
Install the slots of slotted pins in
direction of force and by 180°
turned to each other.
1 = Slotted pin S 25x70
2 = Slotted pin S 15x70
Clean connection surfaces and oil the slotted pins.
Observe the radial installation position
of the brake carrier!
(S) Eyebolts assortment 504182
1
Figure 49
Figure 50
Figure 52
Figure 51
