FRONT WAGON

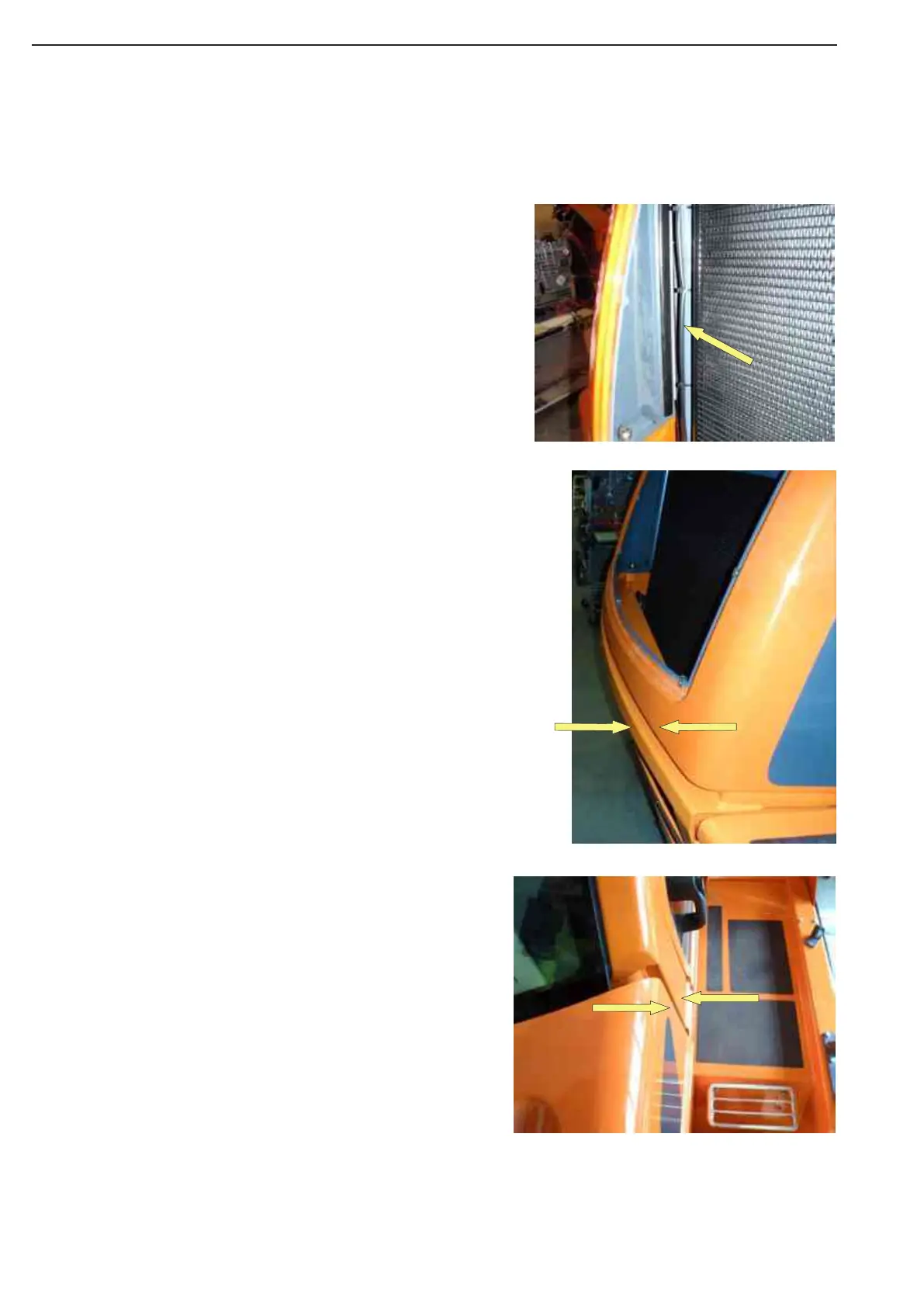

7.4.7 Bonnet adjustment and control
Figure 93
Figure 92
Figure 91
Bonnet should not extend beyond bonnet beam.
Tighten the two foremost screws.
Check the sides, bonnet should extend the same amount
on both sides
Adjust bonnet forward/backward to a suitably seal
towards coolingpack (all around).
