SHOP MANUALSHOP MANUAL
OPTION
Ch 9 Page 12
Ch 9 Page 13
OPTION

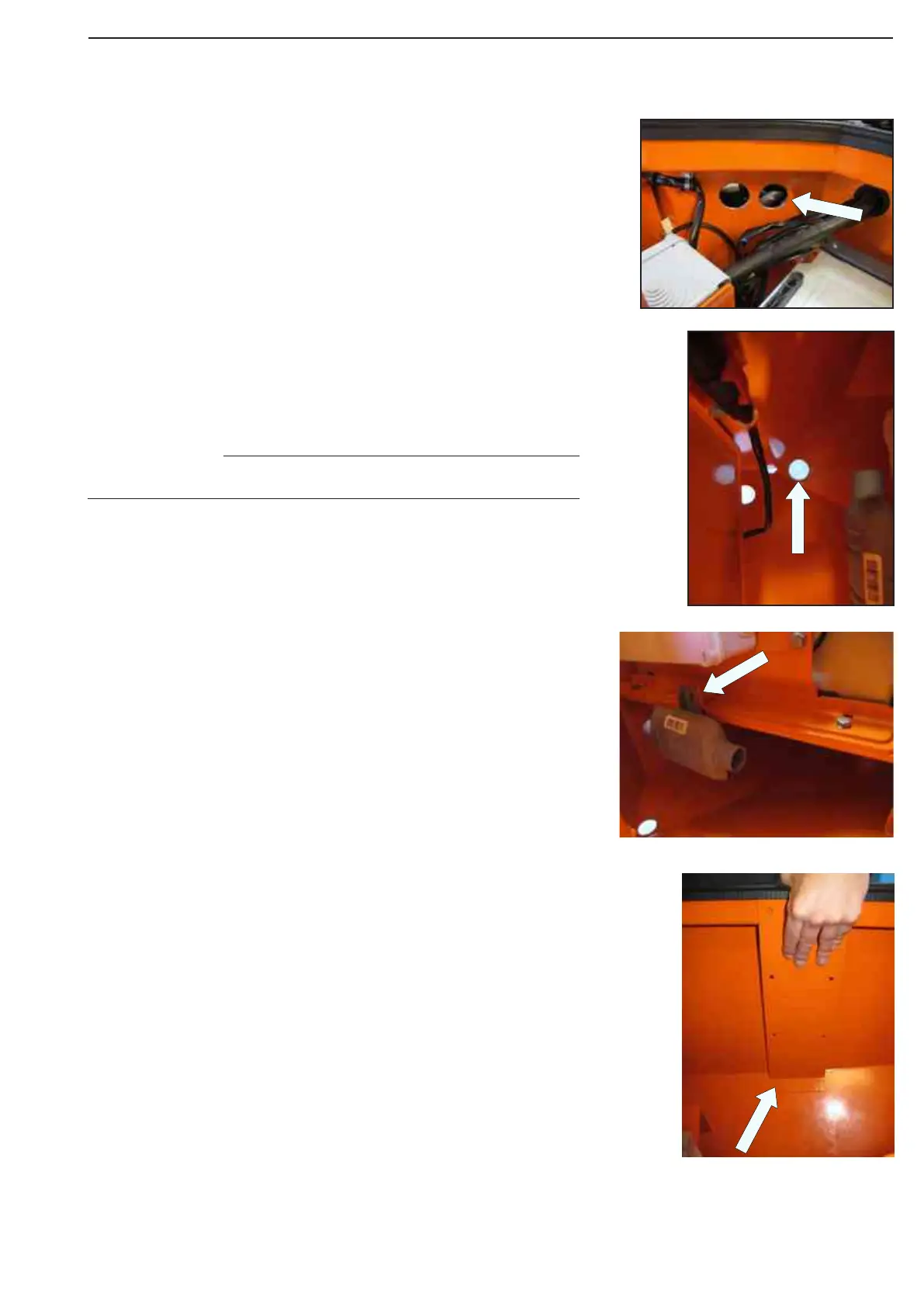

The Webasto is located inside the left hand side fender.
Drill holes for exhaust input and cooling fluid input. Grind sharp edges.
Exhaust outlet hole should be located at the bottom.
Replace original bracket with bracket appropriate for webasto
exhaust.
Clear some distance from weld seam.
Make sure webasto bracket is placed in a convenient way, making wire
and hose assembly easy to connect.
Position webasto bracket and mark drill points before attaching webasto.
NOTE
9.5.2 Assembly Preparation
Figure 23
Figure 22
Figure 21
Figure 20
