Engine
SHOP MANUAL
Ch 1 page 113
1. Remove the crankshaft seal using a
screwdriver. Take care not to scratch the
sealing surfaces on the crankshaft and the
flywheel housing.
2. Fit the new crankshaft seal using tool 512555.
Place the crankshaft seal on the tool and
fasten the tool with the bolts.
3. Turn the tool clockwise until is stops in order
to attain the correct crankshaft seal position.
Renewing the rear crankshaft seal
1. Remove the starter motor.
3. Remove flywheel housing.
Removing the flywheel housing
The crankshaft seal must be tted dry and must not be lubricat-
ed. The sleeve in the seal should be left in place until the seal is
tted. The crankshaft should be degreased before the new seal
is tted.
NOTE

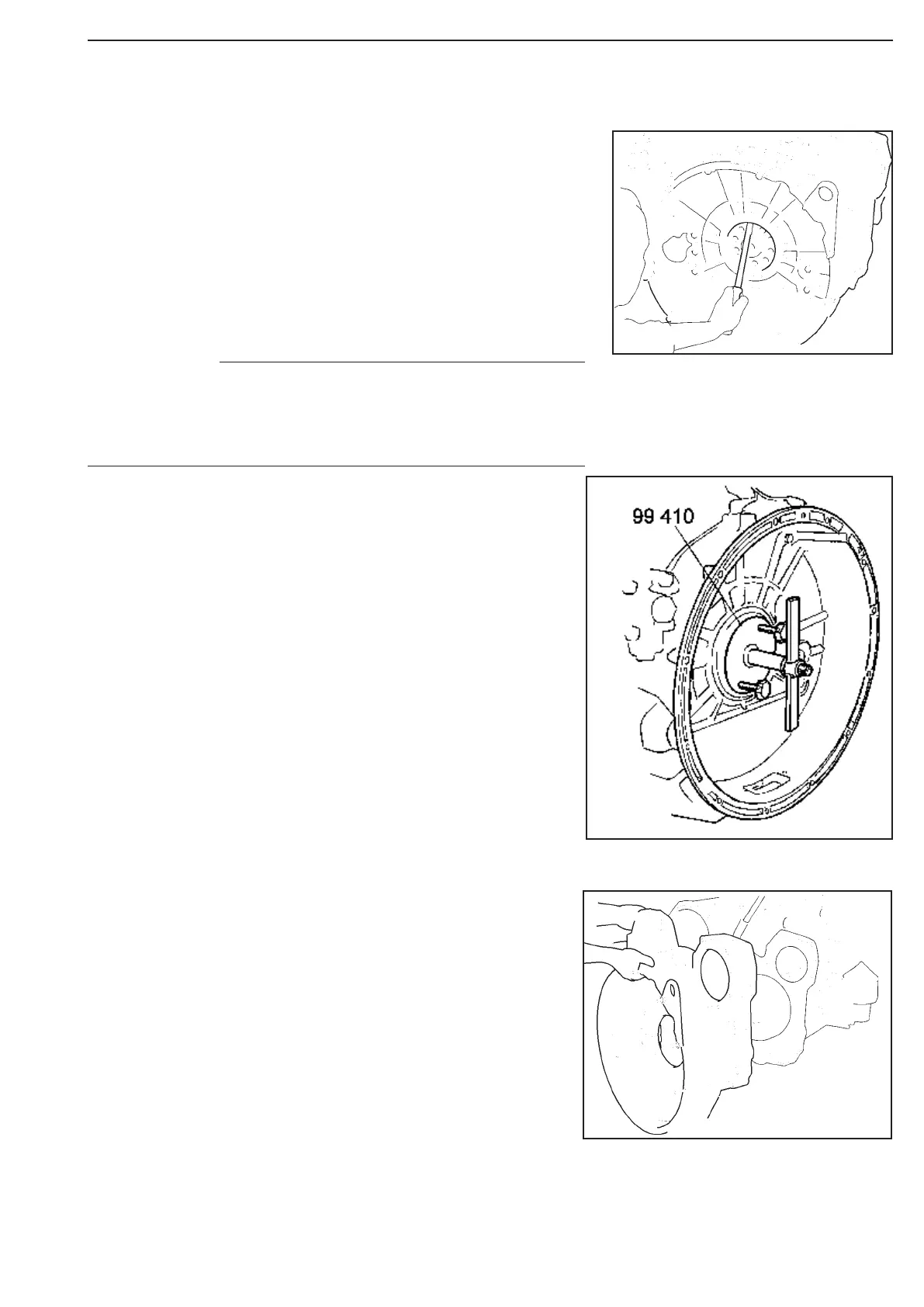

Figure 214
Figure 215
Figure 216
