TRANSMISSION

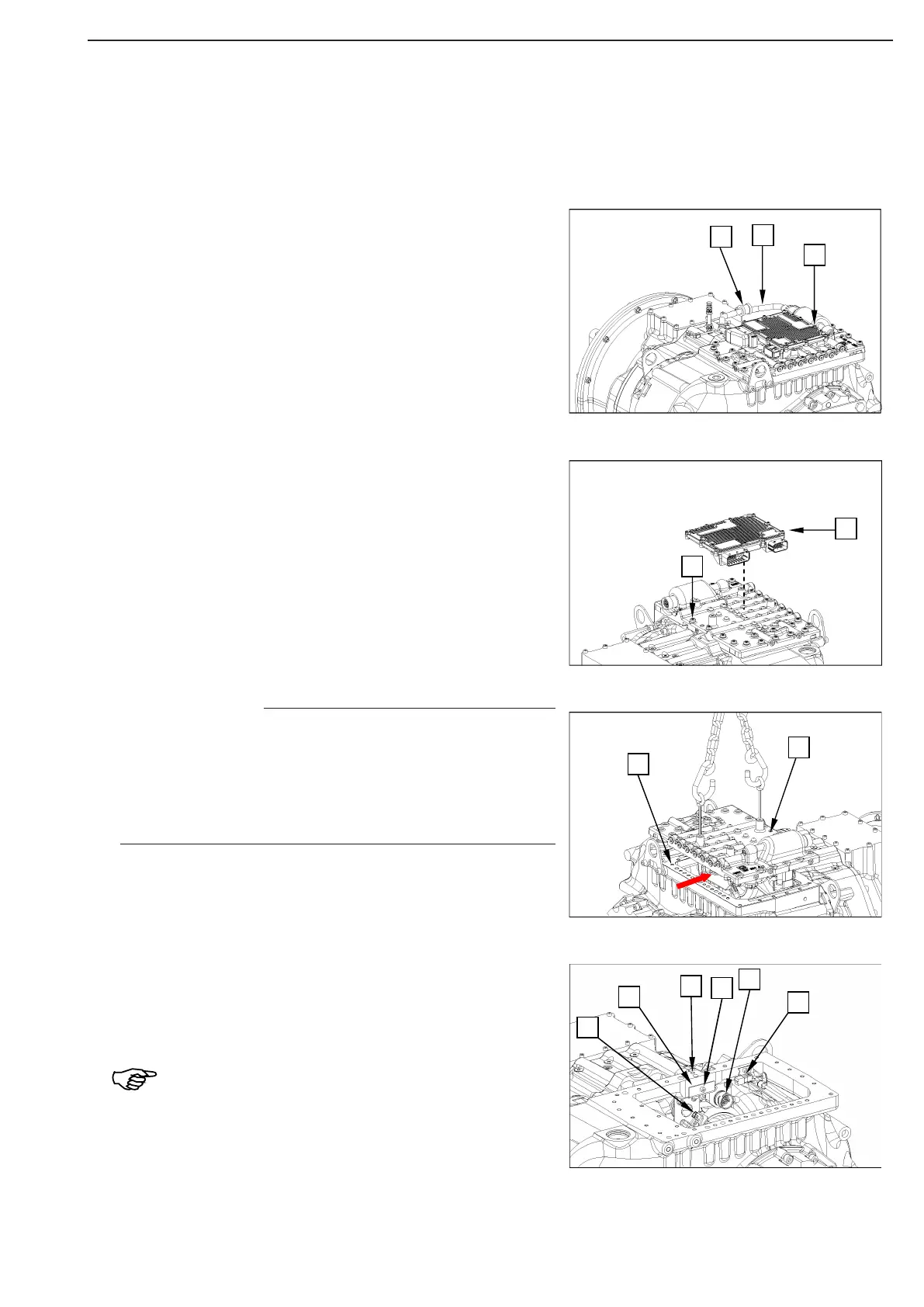

Disassembly and reassembly of shifting block I and speed sensors
Disassembly:
Loosen the clip (1), open and separate the lockings of wiring
harness (2) (bayonet locking and plug).
Loosen the control unit/duct plate bolted connection (3).
Remove the ErgoControl II unit (1).
Loosen the duct plate/transmission housing bolted connec-
tion (2).
Mount two eyebolts, use a lifting tackle to lift the duct
plate (1) until it is possible to open and separate the
bayonet locking of wiring harness – shifting block I /
wiring harness - shifting block II, as well as the
lockings of dierential lock solenoid valve and speed
sensor (see arrow and gure -4).
Now remove duct plate (1) and seal (2).
Legend of connections (see arrow in gure -3):
1 = bayonet locking of shifting block II wiring harness
2 = plug of dierential lock solenoid valve
3 = plug of speed sensor
Loosen the cylindrical screws (4 and 5) and
remove the speed sensor with fixing plate (6)
