TRANSMISSION
Ch 2 page 42 Ch 2 page 43
TRANSMISSION

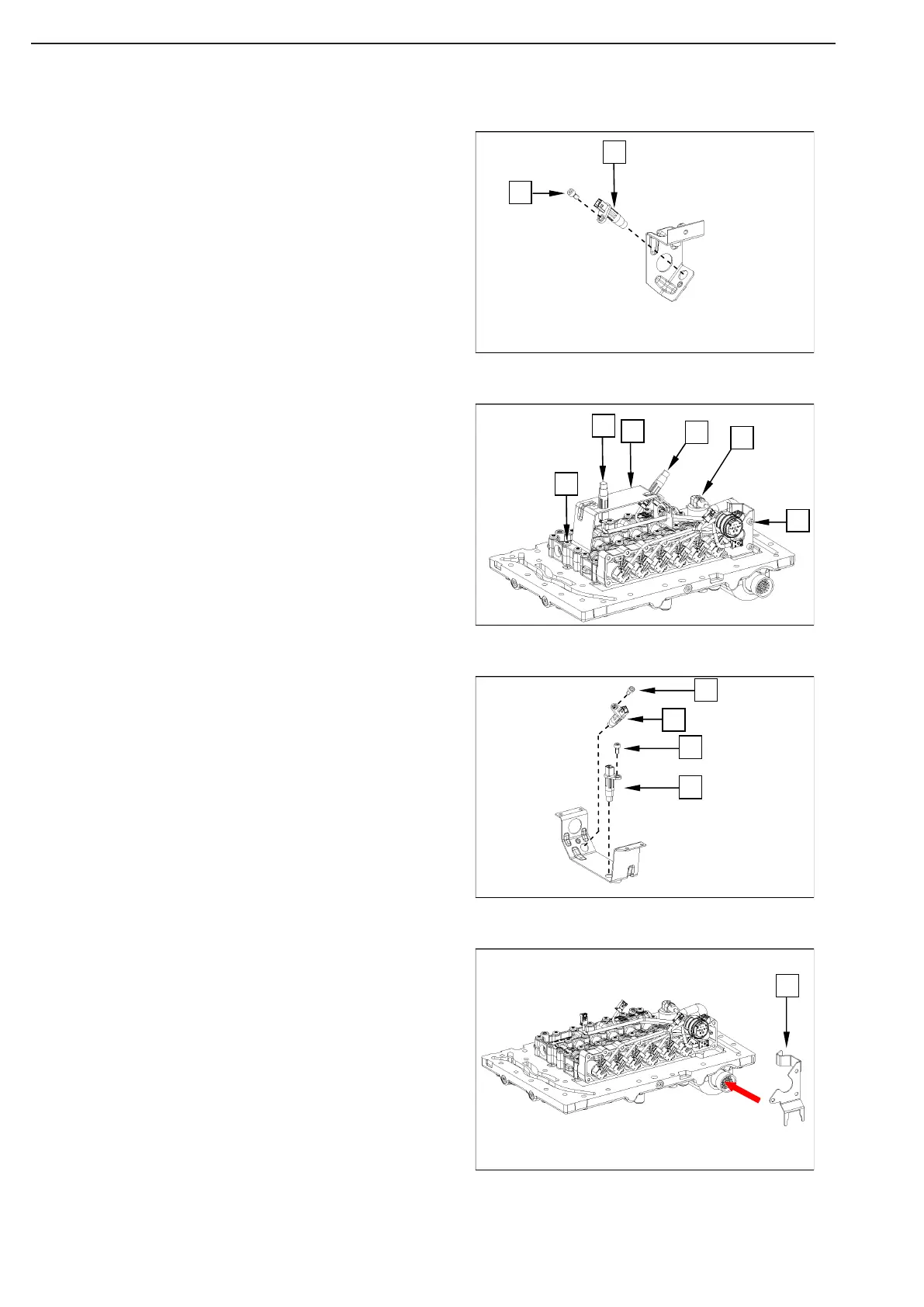

Loosen the cylindrical screw (1) and remove the speed sen-
sor (2).
Open and separate the lockings of speed sensors (1 and 2)
and differential lock solenoid valve (3)
Loosen the Torx screws (4) and remove xing plate (5) with
speed sensors.
Loosen the cylindrical screws (6) of the xing bracket.
Loosen the cylindrical screws (1) and remove the speed sen-
sors (2).
Open all lockings and separate them from pressure controllers
and solenoid valve.
Remove the xing bracket (1).
Press the bayonet locking of wiring harness out of the hole
(seethe arrow)
