Doosan DA40 - Find wiring contact on VCU2

SHOP MANUAL
Ch 6 page 8
ELECTRICAL SYSTEM
1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
A
B
C
D
E
F
G
H
I
J
K
L
M

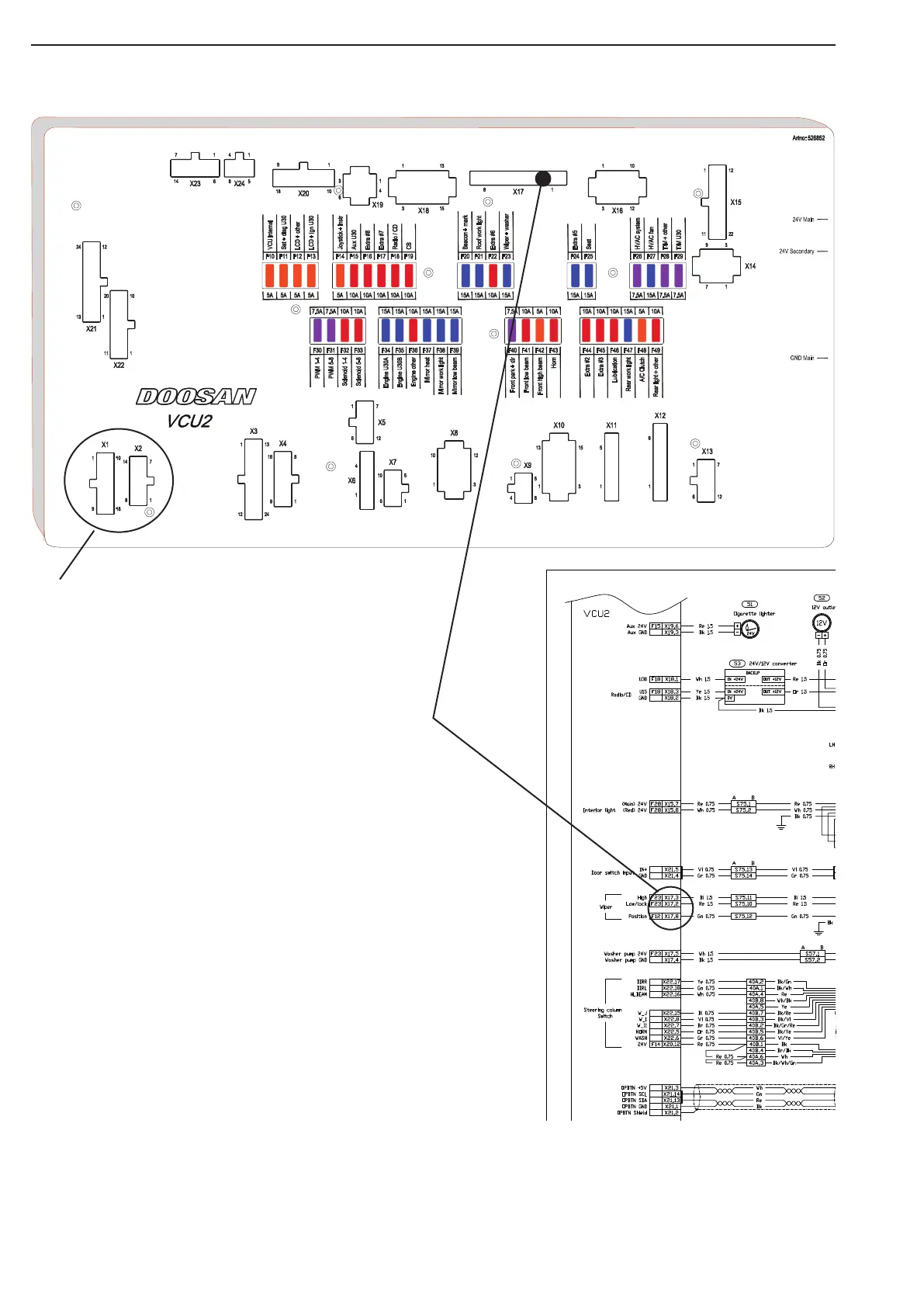

On the VCU2 there is contact point for different wiring
connections. These are all markt with an X and a number
(X1 X2 etc.)
These number you can find on the Electrican Circuit
drawing.
See explanation
Find wiring contact on VCU2
