SHOP MANUAL
DRIVE LINE
Ch 3 page 104 Ch 3 page 105
DRIVE LINE

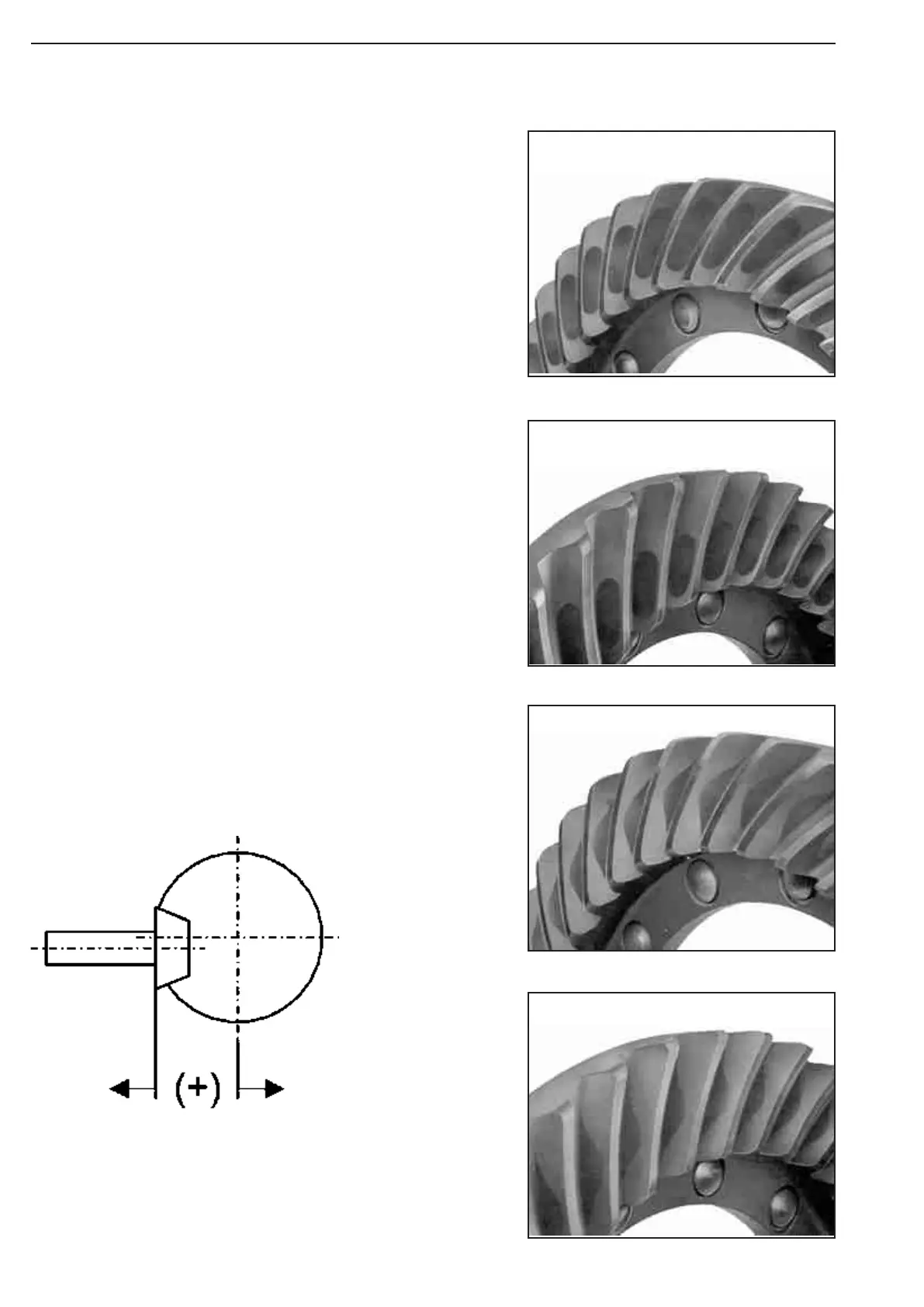

Examples of gear-tooth-contact patterns for the
gleason gear-tooth system
Ideal tooth-contact pattern i.e.
pinion distance is correct
Coast side (concave)
Drive side (convex)
Examples of gear-tooth-contact.
Ideal tooth-contact pattern i.e.
pinion distance is correct
Pinion distance must
be increased
Figure 294-4
Figure 294-3
Figure 294-2
Figure 294-1
