SHOP MANUAL
DRIVE LINE
Ch 3 page 104 Ch 3 page 105
DRIVE LINE
Fix both adjusting nuts by means of lock plate (Arrow).
Wet thread of hex. head screws with
Loctite (Type-No. 262) !
Torque limit (M8/8.8) ............................... 23 Nm
Adjust Sliding pad without play and pressure:
Wet some threads of the set screw in the area of the housing
screw-in surface with Loctite (Type-No.574).
Position sliding pad by means of set screw on the crown wheel
back until contact is obtained.
Now, turn back the set screw only far enough until the crown wheel
can be rotated freely.
Lock the set screw by means of hex. nut.
Pinion distance must
be decreased

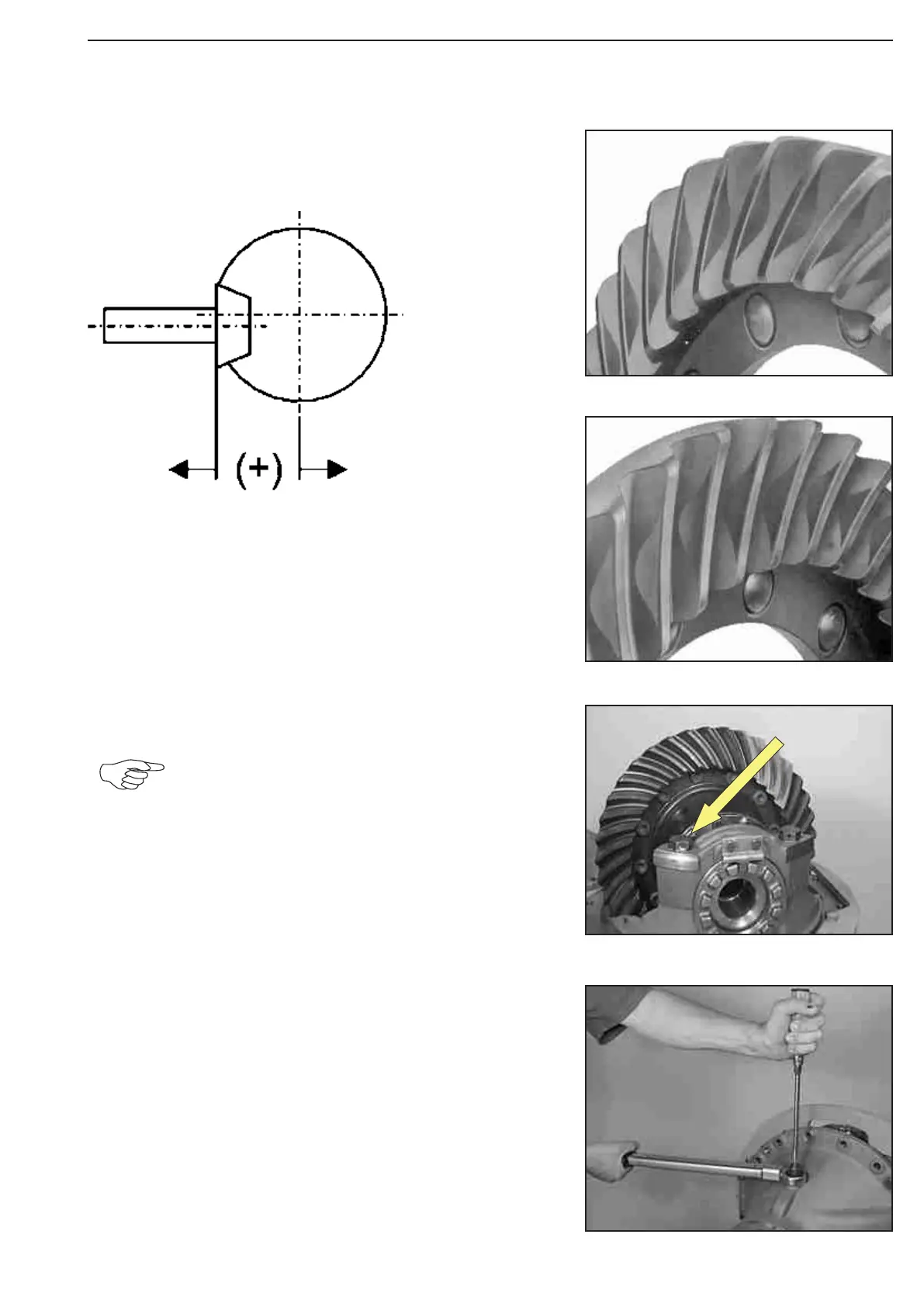

Figure 294-8
Figure 294-7
Figure 294-6
Figure 294-5
