SHOP MANUAL
DRIVE LINE
Ch 3 page 48 Ch 3 page 49
DRIVE LINE

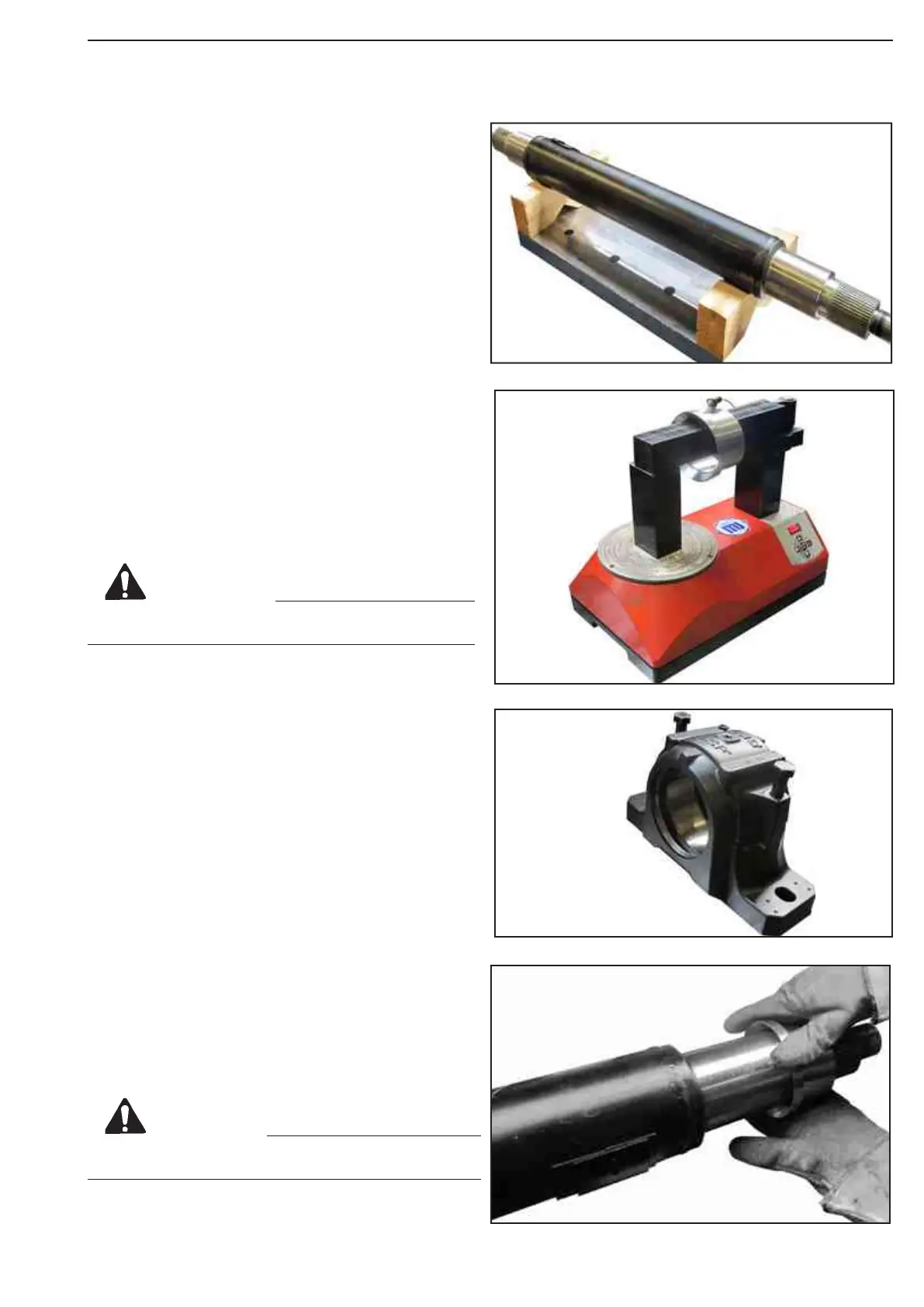

Clean the ends of the intermediate shaft where the
bearings will be installed.
Place the intermediate shaft in the two pieces of
wood or similar, to have easy handling on the shaft.
Mounting the bearings on the intermediate shaft (B)
Heat the inner diameter of the spacer sleeve (inner)
with electrical heater, Hot oil or Hot air blower
Temp 75 - 120°C
(167 - 248°F)
(S) Hot-air blower 230 V 504193
(S) Hot-air blower 115 V 504194
Clean and check if the bearing housings are with-
out any damage, rust or deformation.
Place carefully the spacer sleeve (inner) on the end
of the intermediate shaft.
Try to install it aligned.
Be aware of personal injury Use proper gloves.
Be aware of personal injury. Use proper gloves.
CAUTION
CAUTION
Figure 128
Figure 131
Figure 130
Figure 129
