SHOP MANUAL
DRIVE LINE
Ch 3 page 50 Ch 3 page 51
DRIVE LINE

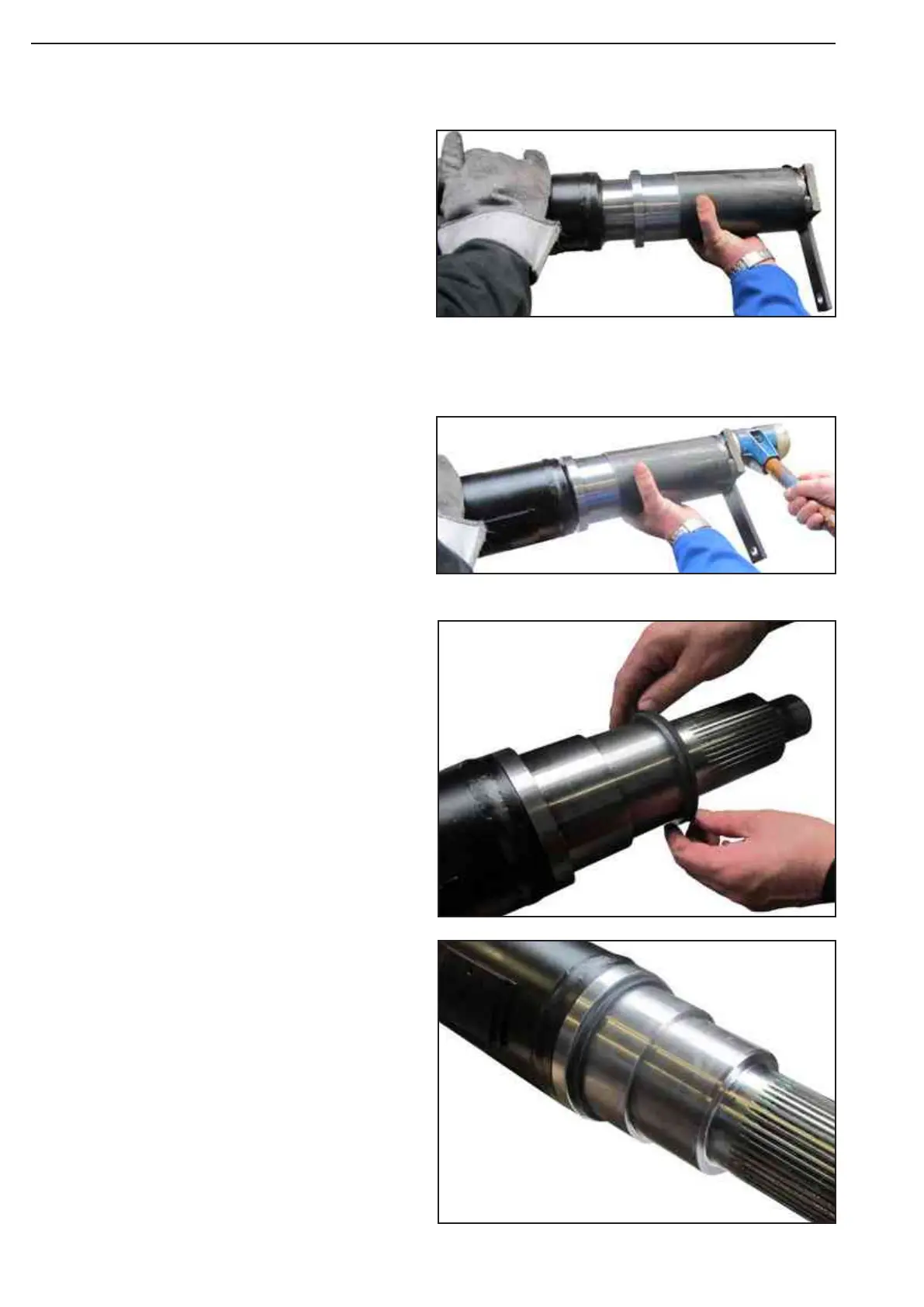

Place the installation device the end of the interme-
diate shaft, in front of the spacer sleeve(inner), and
press it against the spacer slevee without hit on it.
Now, use a nylon hammer to hit the device installa-
tion against the spacer sleeve (inner) until the spacer
sleeve touches the end of the machined body of the
intermediate shaft.
Instal the rubber seal on the spacer sleeve (inner)
body.
Pay attention to not damage the lips of the rubber
seal.
Place the rubber seal on the end of the spacer sleeve
(inner) body. Make sure that the lips are towards to
the edge of the intermediate shaft.
Figure 135
Figure 134
Figure 133
Figure 132
