DRIVE LINE

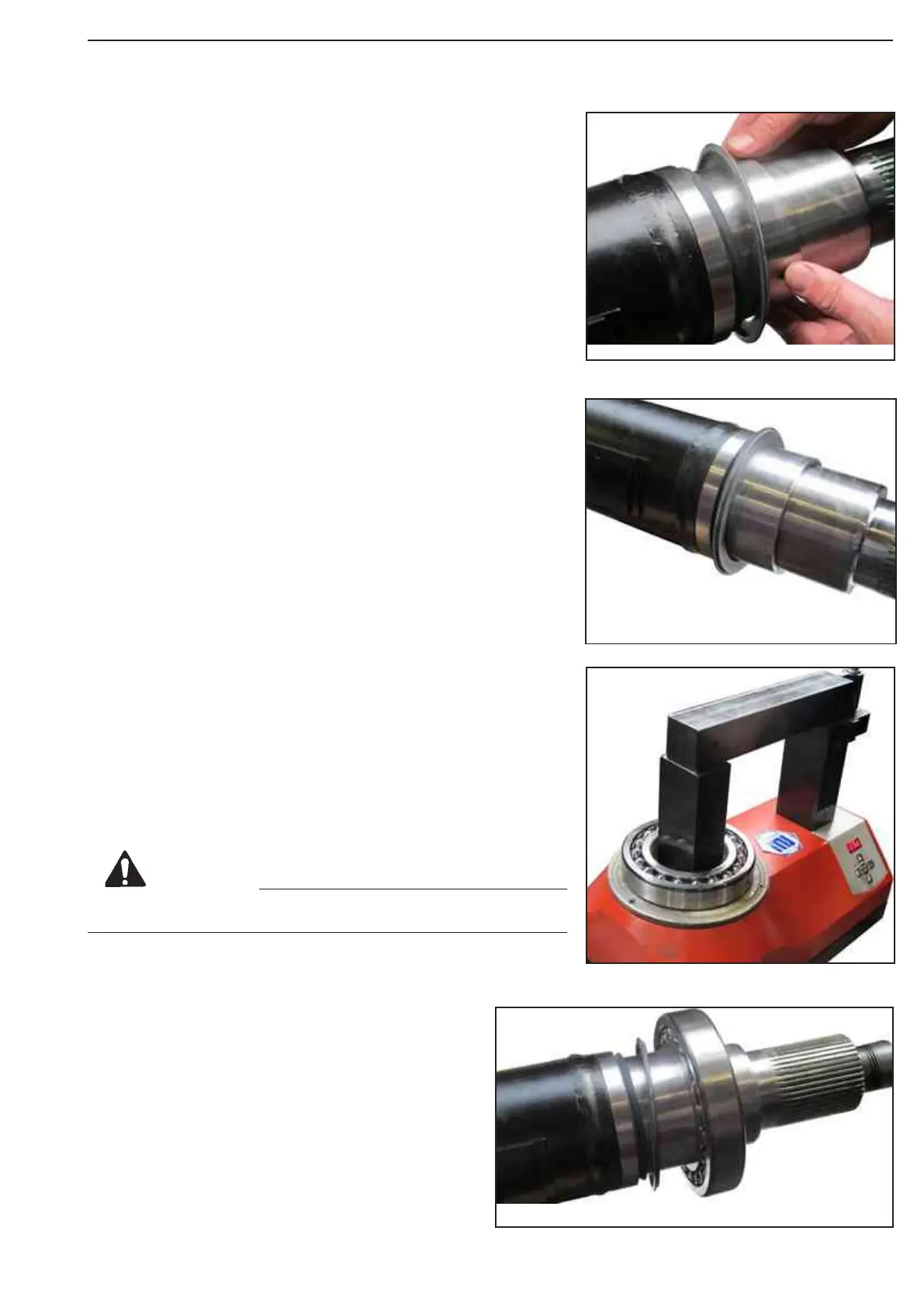

Instal the support ring in front of the rubber seal.
Make sure that the concave side is toward to the rubber seal.
Place the support ring on the end of the spacer sleeve (inner),
covering the rubber seal.
Place the bearing on the intermediate shaft until it
touch
Heat the inner diameter of the bearing with electrical heater, Hot
oil or Hot air blower
Temp 75 - 130°C
(167 - 248°F)
(S) Hot-air blower 230 V 504193
(S) Hot-air blower 115 V 504194
Be aware of personal injury. Use proper gloves.
CAUTION
Figure 139
Figure 138
Figure 137
Figure 136
