SHOP MANUAL
DRIVE LINE
Ch 3 page 52 Ch 3 page 53
DRIVE LINE
The inner diameter of bearing have to be tied and
the rest of the bearing body have to have all the
moviments free of friction.

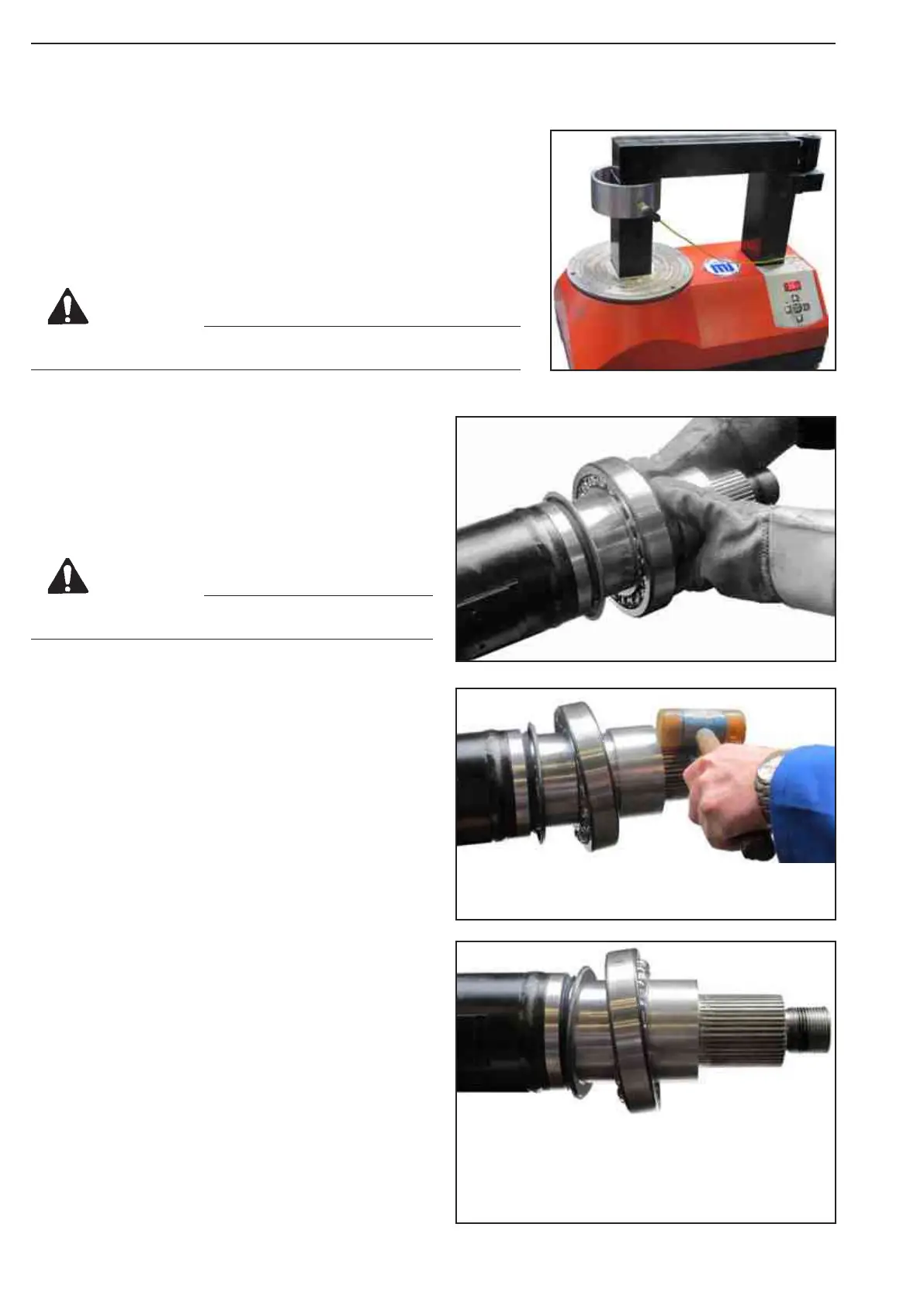

Heat the inner diameter of the spacer sleeve (out-
er) with electrical heater, Hot oil or Hot air blower
Temp 75 - 120°C
(167 - 248°F)
(S) Hot-air blower 230 V 504193
(S) Hot-air blower 115 V 504194
Be aware of personal injury. Use proper gloves.
Place carefully the spacer sleeve (outer) on the end
of the intermediate shaft.
Try to install it aligned.
Be aware of personal injury. Use proper gloves.
Now, use a nylon hammer to hit the spacer sleeve
(outer) until the spacer sleeve touches the bearing.
CAUTION
CAUTION
Figure 143
Figure 142
Figure 141
Figure 140
To Next Page
