SHOP MANUAL
DRIVE LINE
Ch 3 page 52 Ch 3 page 53
DRIVE LINE

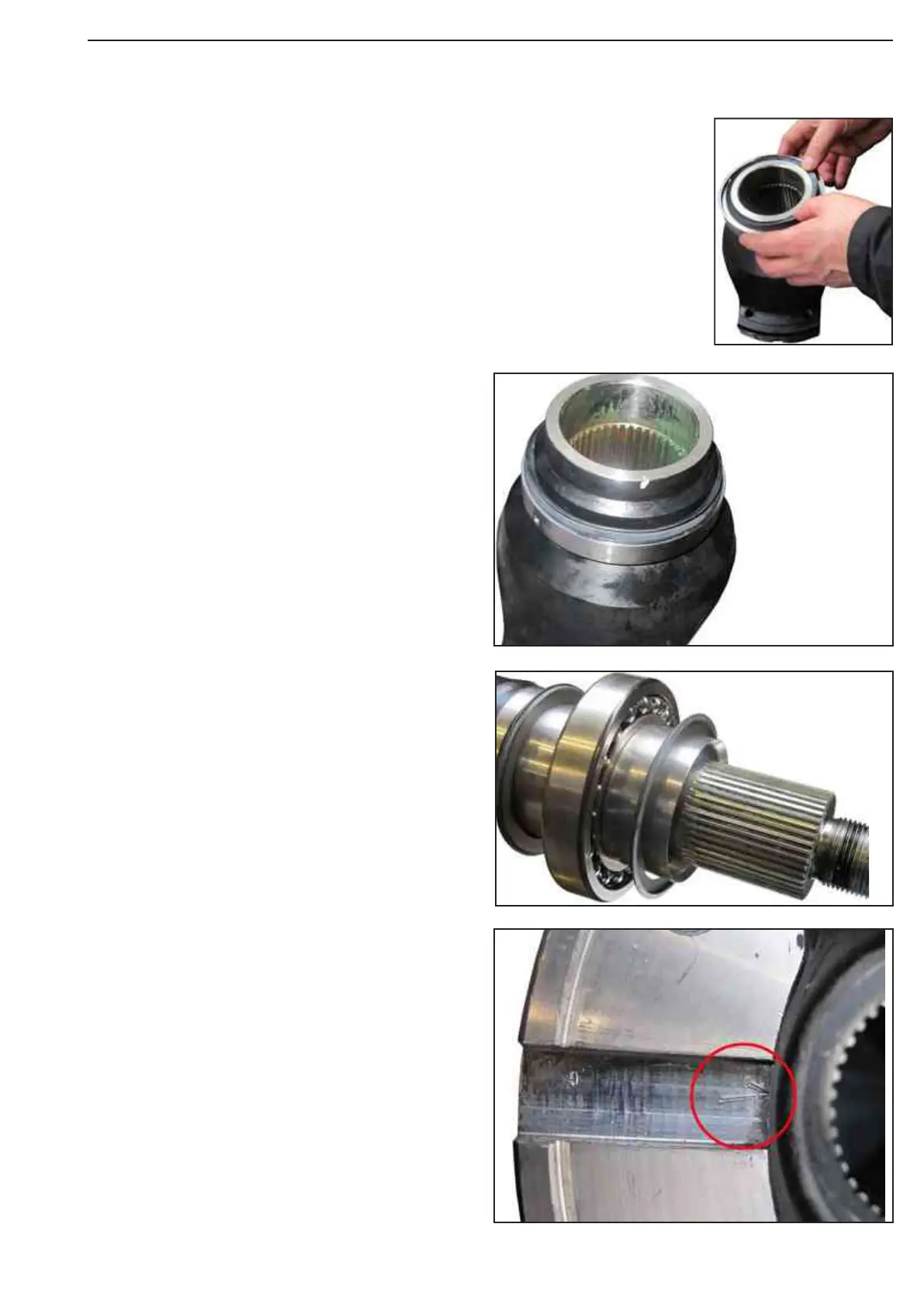

Place the rubber seal on the splined yoke.
Make sure that the lips of the rubber seal are to-
wards to the shaft direction.
Lubricate the striated part of the splined yoke with
grease.
Lubricate the striated part of the intermediate shaft.
Check the arrow mark on the rip of the splined yoke.
Figure 147
Figure 146
Figure 145
Figure 144
To Next Page
