DRIVE LINE

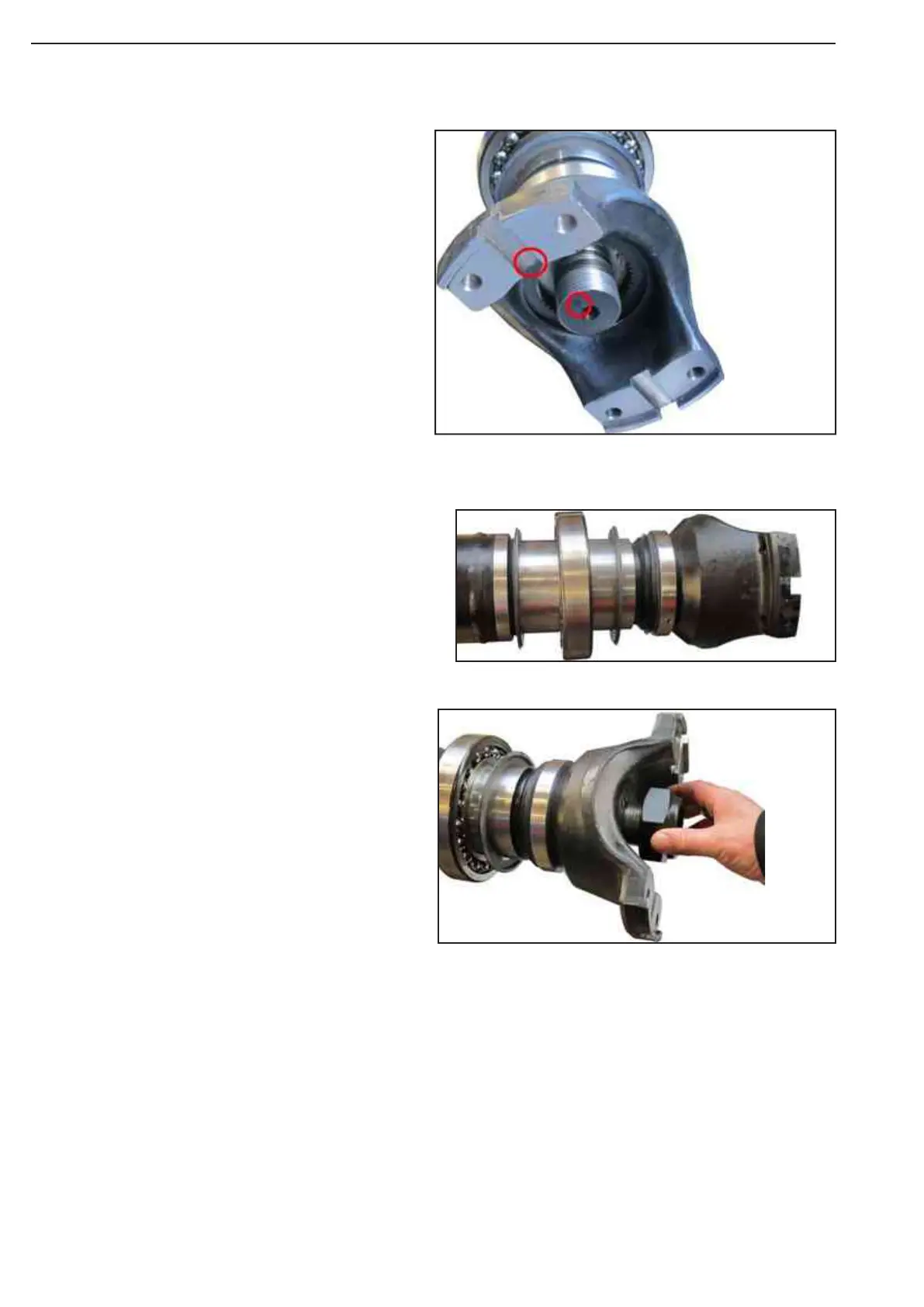

Align the arrow on the splined yoke with the arrow
on the intermediate shaft and mount the splined
yoke on the intermediate shaft.
Check if the splined yoke is completed mounted at
the end.
Tied the nut.
Tightening torque 620 + 60 Nm.
Do the same procedures to mount the housing in
the other side of the propeler shaft.
Figure 150
Figure 149
Figure 148
