TRANSMISSION
Secure the clamping plate with cylindrical screws.
Tightening torque (M6/8.8x12) MA = 9.5
Close the lockings of wiring harness / temperature sensors
plug connections (1).
Bring the seal and cover (1) into contact position at the trans-
mission housing.
Fix the cover (1) with cylindrical screws.
Tightening torque (M8/8.8x20) MA = 23 Nm
Fit screw plug M48x2 with O-ring 44x2 (2).
Tightening torque MA = 145 Nm

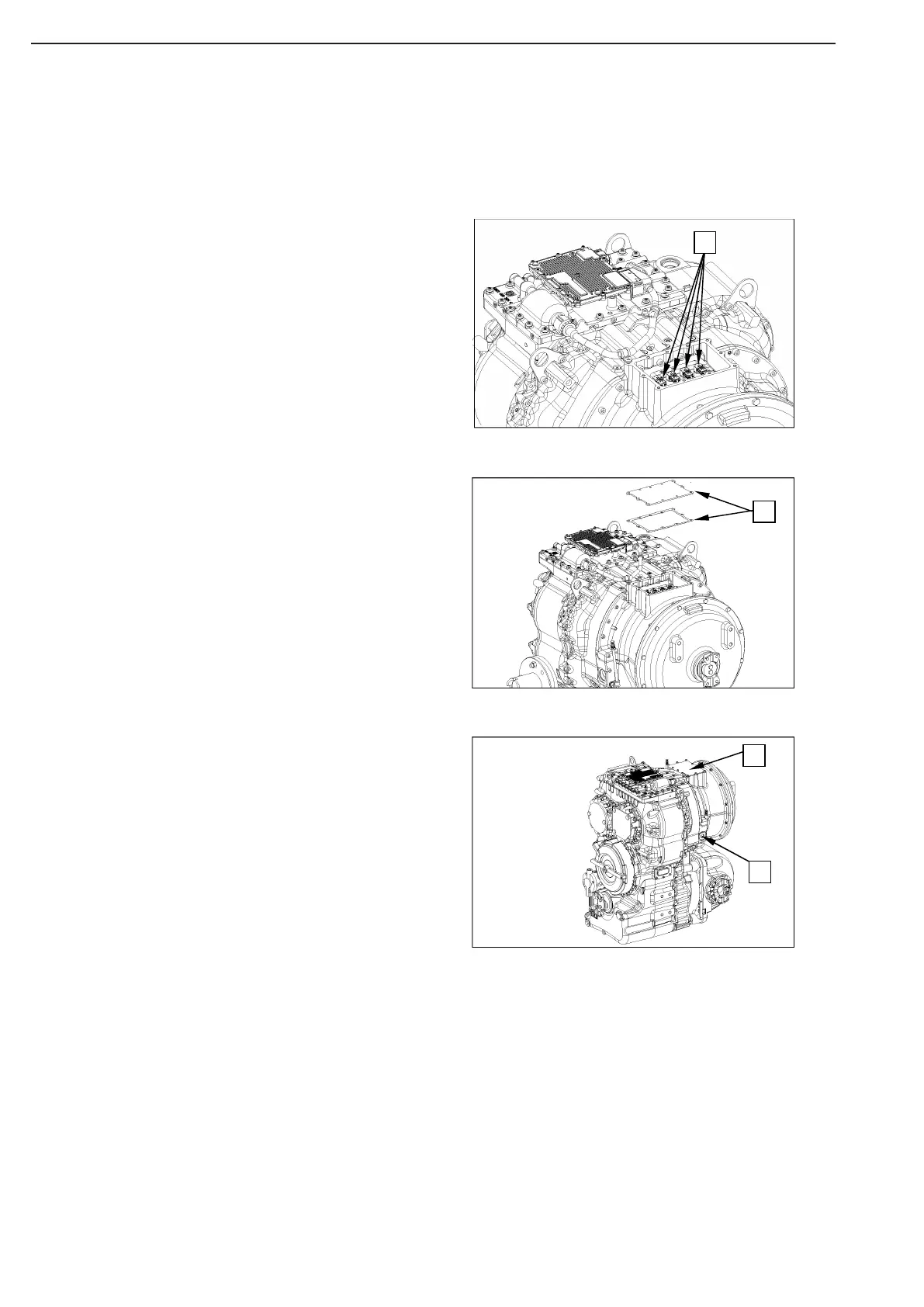

Figure 76
Figure 75
Figure 74
