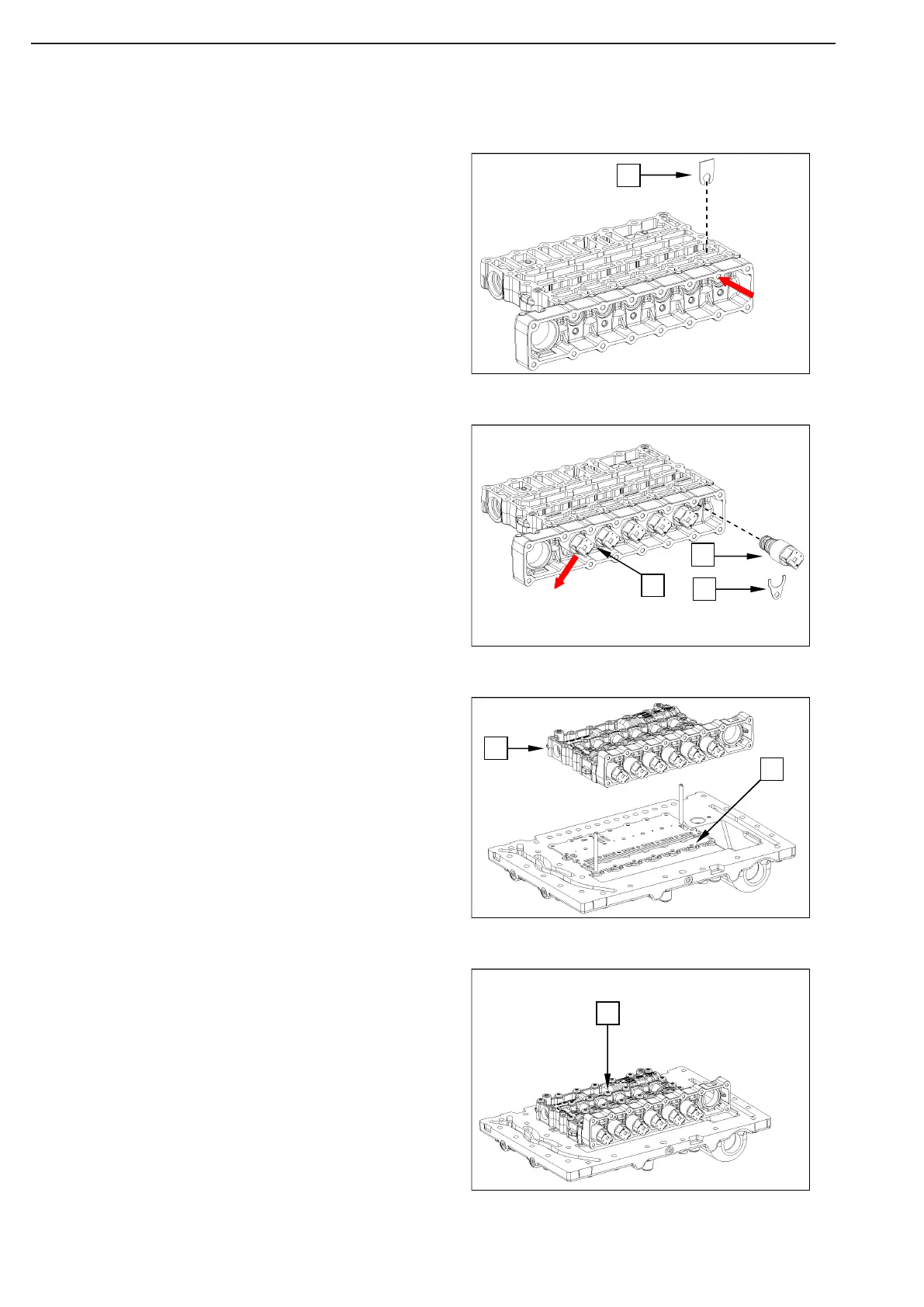

TRANSMISSION
Preload all follow-on slides (see arrow) and x them with stop
plates (1).
Insert all pressure controllers (1) with clamping plates (2) into
the valve block and fix them with the cylindrical screw (3)
Tightening torque (M6/8.8x12) MA = 9.5 Nm
Ensure correct installation position of pressure controllers
(plug connection) - see arrow.
Fit adjusting screws and mount intermediate plate (1) and
valveblock (2).
(S) Adjusting screws MX504189
NEVER reassemble the intermediate plate after having
opened the duct plate/valve block bolted connection
ALWAYS install a new intermediate plate in case of repairs!
Fix duct plate/valve block bolted connection equally with Torx-
screws (1).
Tightening torque (M6/10.9x50) MA = 9.5 Nm
(S) Socket wrench TX-27
1
1
2
3
1
2
1
Figure 100
Figure 99
Figure 98
Figure 97
