FRONT WAGON
Cover
Plate

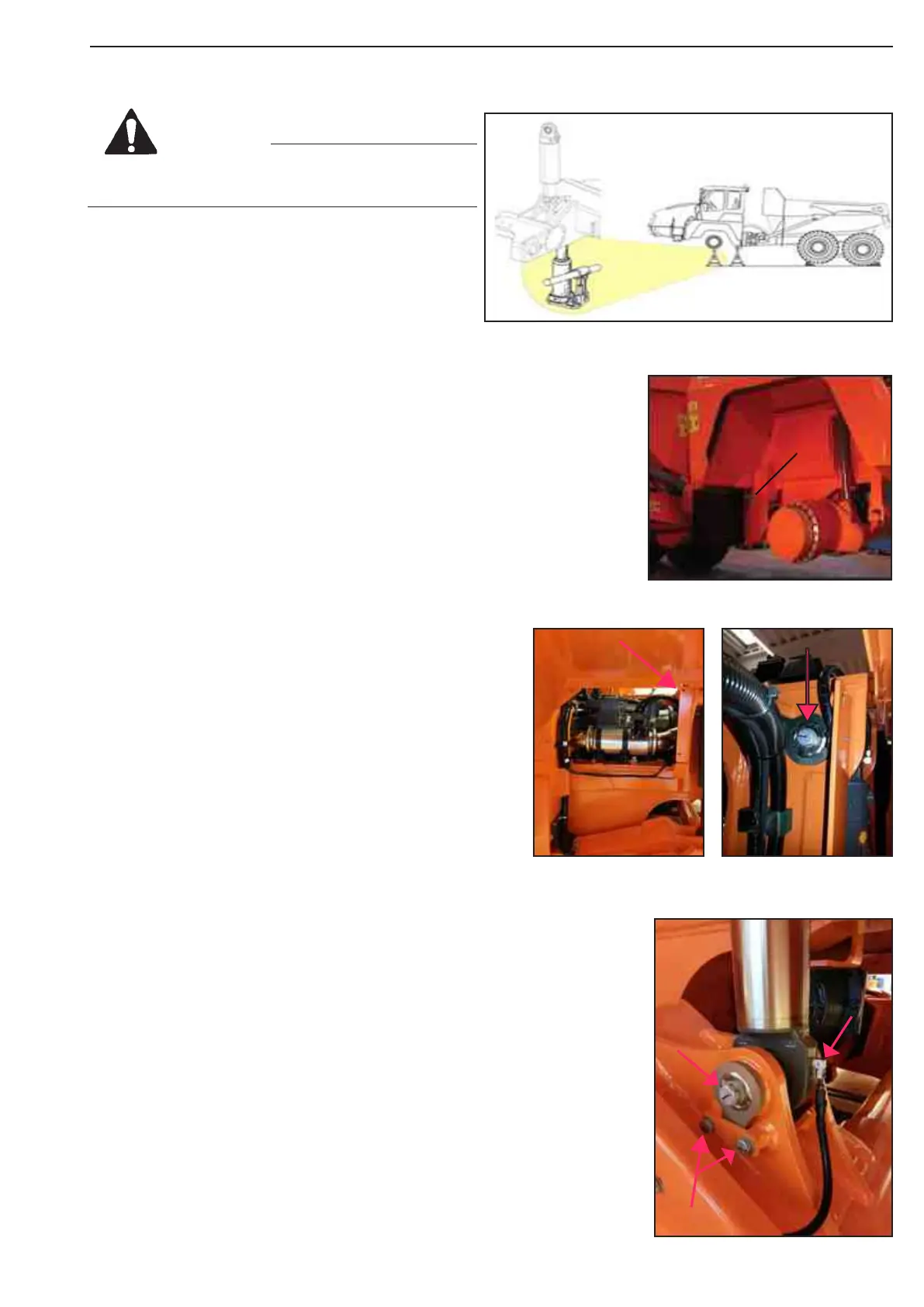

Thoroughly clean the front suspension.
Unscrew and remove the suspension cover plate
Remove locking bolt.
Remove lubrication attachment.
Remove cylinder pin.
Disassemble lubrication attacment.
Remove cylinder pin and screws.
loosen cylinder.
Place hydraulic stand beneath suspension arm to
prevent it from falling down on removal.
DANGER
Figure 10
Figure 9
Figure 8
Figure 7
