SHOP MANUAL
DRIVE LINE
Ch 3 page 86 Ch 3 page 87
DRIVE LINE

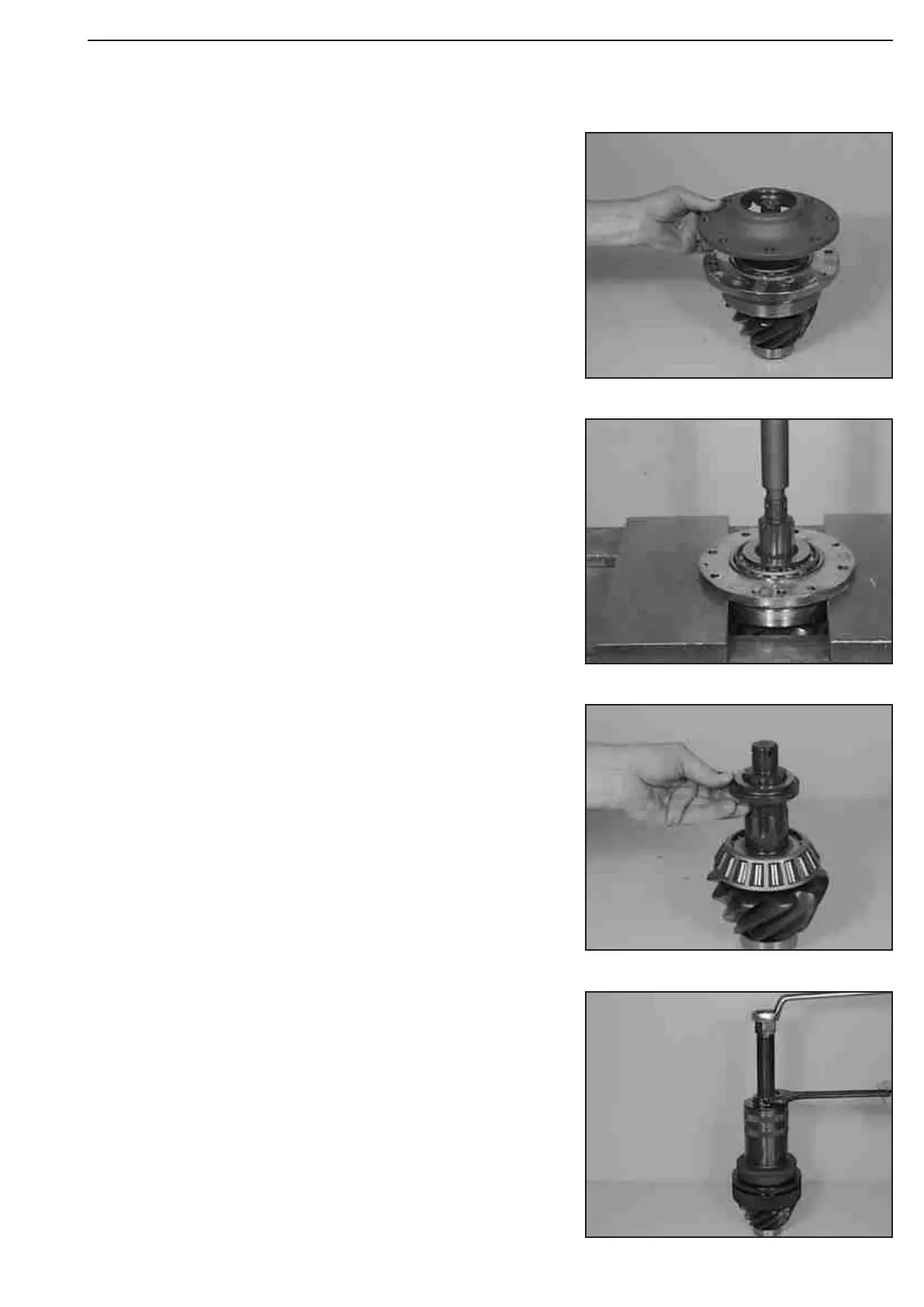

Demount sealing cap and disassemble shaft seal.
Pull off bearing inner race from the drive pinion.
(Bearing) 532767
(S) Grab sleeve 509256
(S) Reducer 509114
(S) Basic tool 504243
(S) Quick-acting grip
Bearing HM 813 841 509254
(S) Basic tool 504243
Remove adjusting ring.
Press drive pinion out of the bearing bush.
Pay attention to released components!
Figure 236
Figure 235
Figure 234
Figure 237
