SHOP MANUAL
DRIVE LINE
Ch 3 page 80 Ch 3 page 81
DRIVE LINE
Be aware of personal injury.

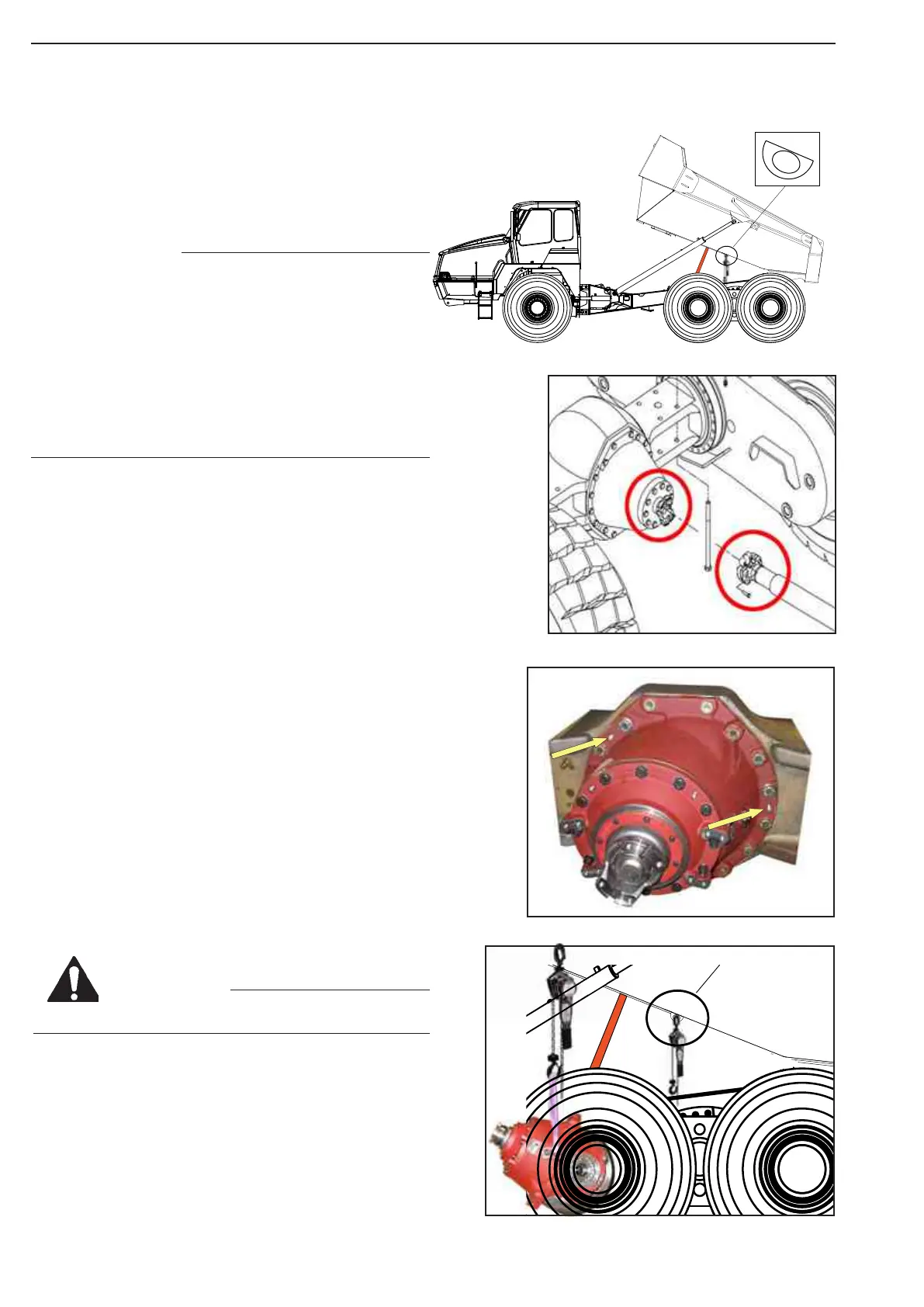

Unfasten the rear propeller shaft from the differential flange
M12x60 DIN912-12.9
Secure the rear propeller shaft for damage with a strop
Disassemble 15 of the lovering screws from axle housing flange.
The last one of the screws must be taken out when the lifting
device is place.
Place in the “free” hole (M20, arrow) 2 pcs. screw M20 x 75 or eye
bolt and fasten the lifting device.
Secure with the lifting device and take out the upper screw.
Carefully move the differential out of the axle housing.
Lift the body in safe position and welding a bracket
under the body bottom.
The bracket is not Doosan part.
When welding on machine, place the welding
ground cable to the same object and close the
welding point as possible. Be sure the contact to
the ground is optional. Othervise it’s safe to dis-
connect cables from: Battery, - Engine controller
and the Transmission controller. Doosan Infracore
Norway Engineering is not responsible for dam-
age of the machinary equipment when welding on
the machine.
Lower the differential to a pallet or to the floor
WARNING
NOTE
Figure 212
Figure 211
Figure 210
Figure 209
