SHOP MANUAL
DRIVE LINE
Ch 3 page 78 Ch 3 page 79
DRIVE LINE

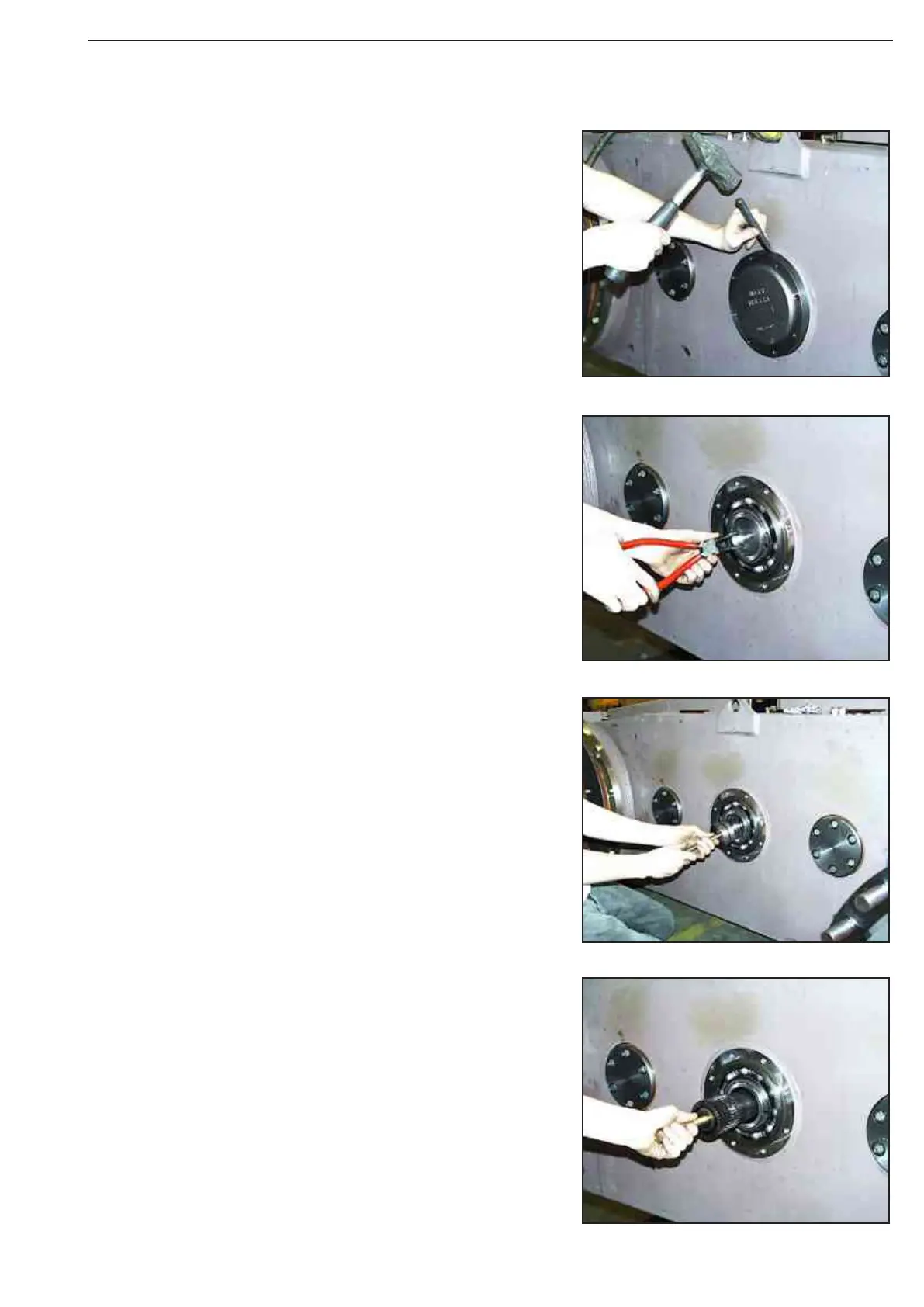

Remove the cover.
Use chisel and hammer.
Be aware not to damage the cover
Remove the snap ring for the thrust washer
Pull out the thrust washer
Use screw M16x220 060583
Pull out the shaft.
Now the differential is free from the axle and can be lifted out.
Use screw M16x220 060583
When repair or assembly, follow the descriptions for the assembly
when the boggi unit is separated from the frame.
