SHOP MANUAL
Ch 5 page 10

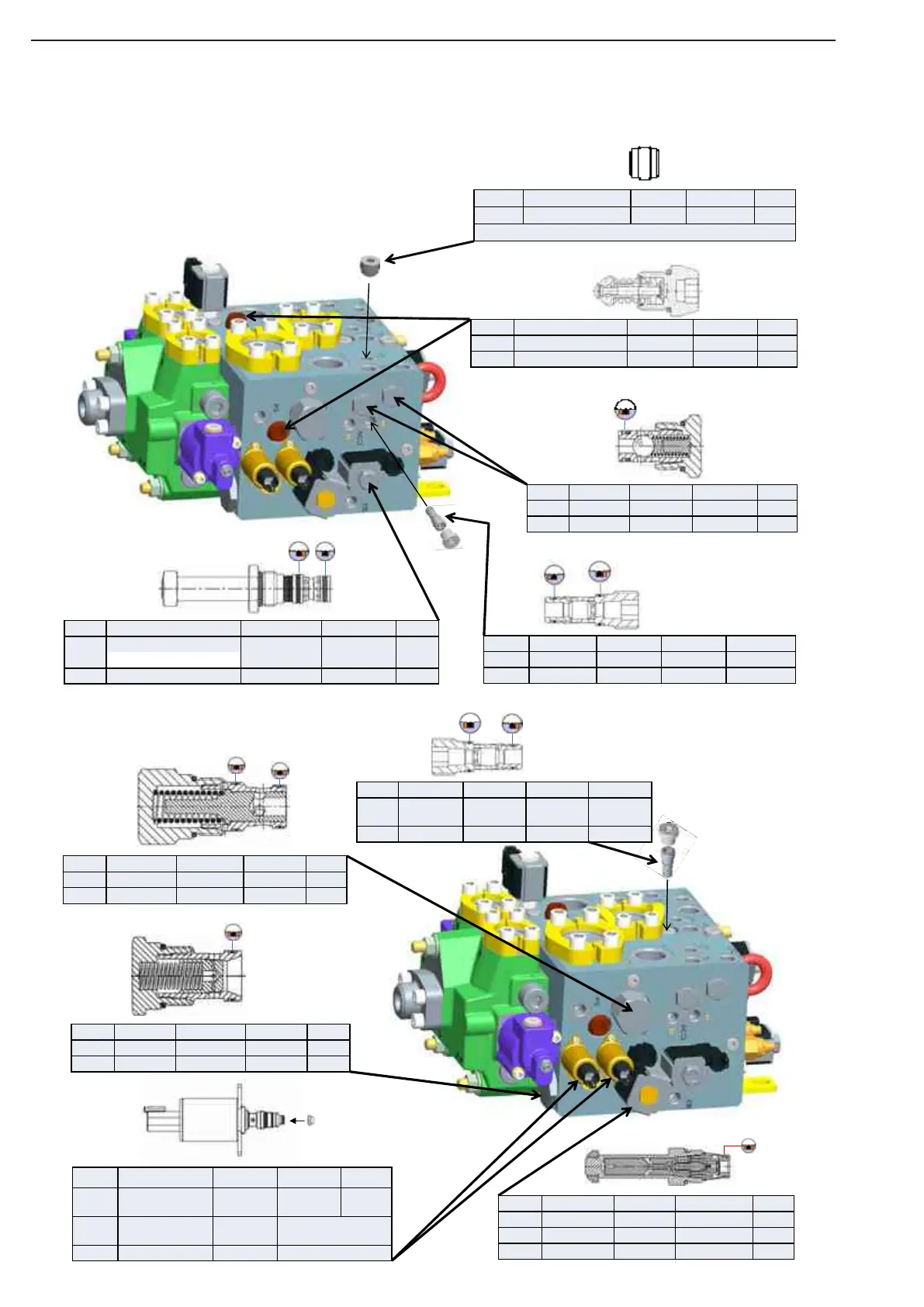

HYDRAULIC SYSTEM
Position Description Part no. Head/socket Torque
20 Check valve BC1-0,6 8mm! * 10Nm
* Make sure 8mm socket facing outside of port!
Position Description Part no. Head/socket Torque
2, 3 Relief valve PLC053-300 10mm 60Nm
Seal Kit 532023
Position Description Part no. Head/socket Torque
4,5 Check valve 22mm 40Nm
Seal Kit 532024
Position Description Part no. Head/socket Torque
18 Shuttle valve K2A005N 6mm 10Nm
Seal Kit 532025 + Locking uid
Position Description Part no. Head/socket Torque
33 Proportional reducing valve 530063 7/8" (22,2mm) 30Nm
Seal Kit 532022
Coil 530049 3/4" (19,0mm) 3,5Nm
Position Description Part no. Head/socket Torque
29,34 PS25 Proportional
reducing valve
531085 3mm (2x) 3Nm
Orice cap Ø1,2mm
Ø
(set of 5pcs)
Snap to end of reducing
valve!
Seal Kit 532026
Position Description Part no. Head/socket Torque
17 Solenoid valve 530066 1" (25,4mm) 60Nm
Coil 530065 3/4” (19,0mm) 8Nm
Seal Kit 532015
Position Description Part no. Head/socket Torque
22 Check valve 38mm 100Nm
Seal Kit 532016
Position Description Part no. Head/socket Torque
28 Logic element 38mm 100Nm
Seal Kit 532017
Position Description Part no. Head/socket Torque
32 Shuttle valve 6mm 10Nm +
Locking Fluid
Seal Kit 532025
