SHOP MANUAL
Ch 5 page 11
HYDRAULIC SYSTEM

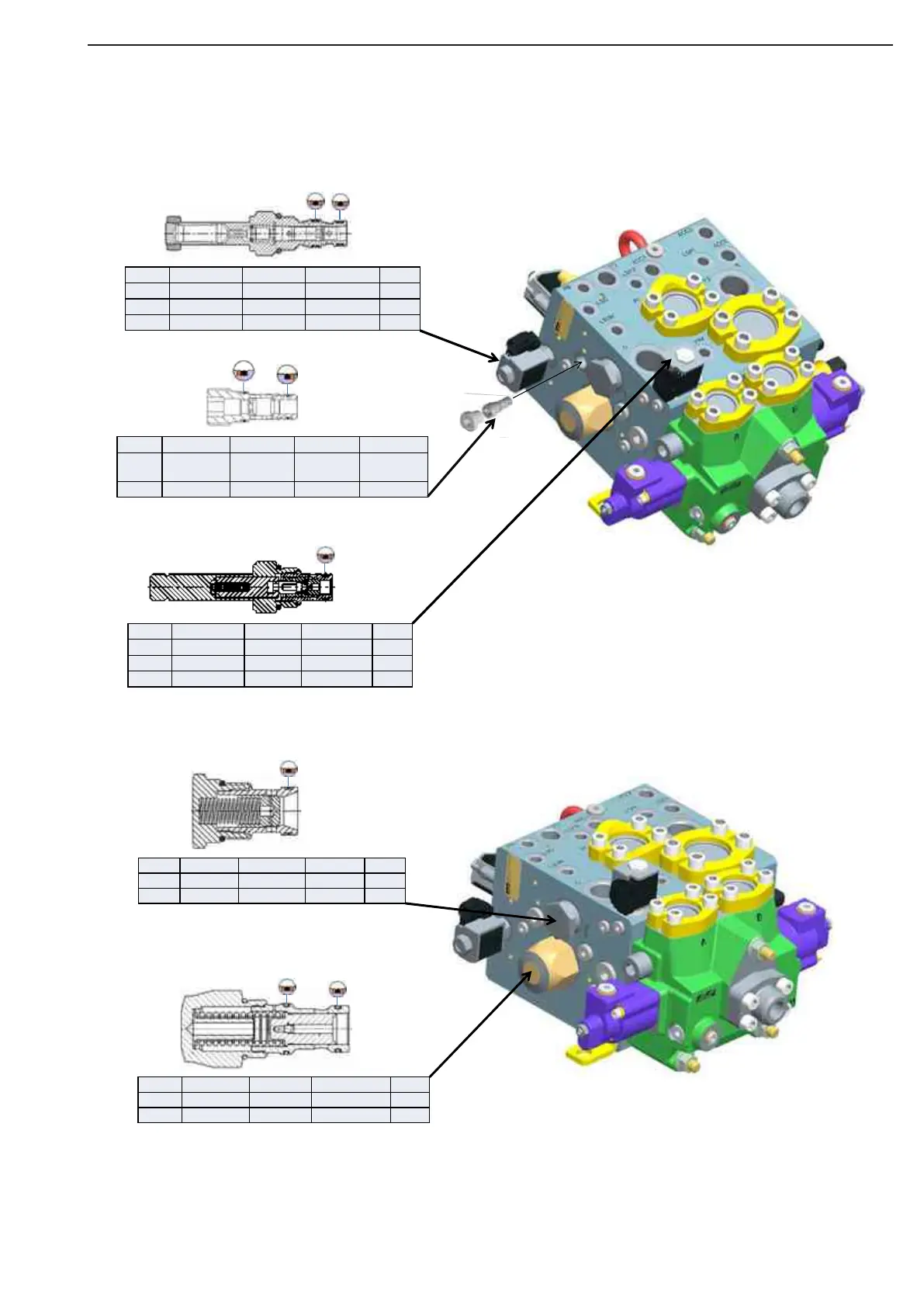

Position Description Part no. Head/socket Torque
Coil 530049 3/4" (19,0mm) 3,5Nm!
Seal Kit 532011
Position Description Part no. Head/socket Torque
30 Solenoid valve 530051 7/8" (22,2mm) 45Nm
Coil 530049 3/4" (19,0mm) 8Nm
Seal Kit 532012
Position Description Part no. Head/socket Torque
16 Shuttle valve 6mm 10Nm +
Locking Fluid
Seal Kit 532025
1 Solenoid valve 524484 7/8" (22,2mm) 30Nm
Position Description Part no. Head/socket Torque
13 Check valve 38mm 100Nm
Seal Kit 532016
Position Description Part no. Head/socket Torque
14 Logic element 1 7/8" (47,6mm) 140Nm
Seal Kit 532018
To Next Page
