SHOP MANUAL
DRIVE LINE
Ch 3 page 16 Ch 3 page 17
DRIVE LINE
1
2
1
1
1

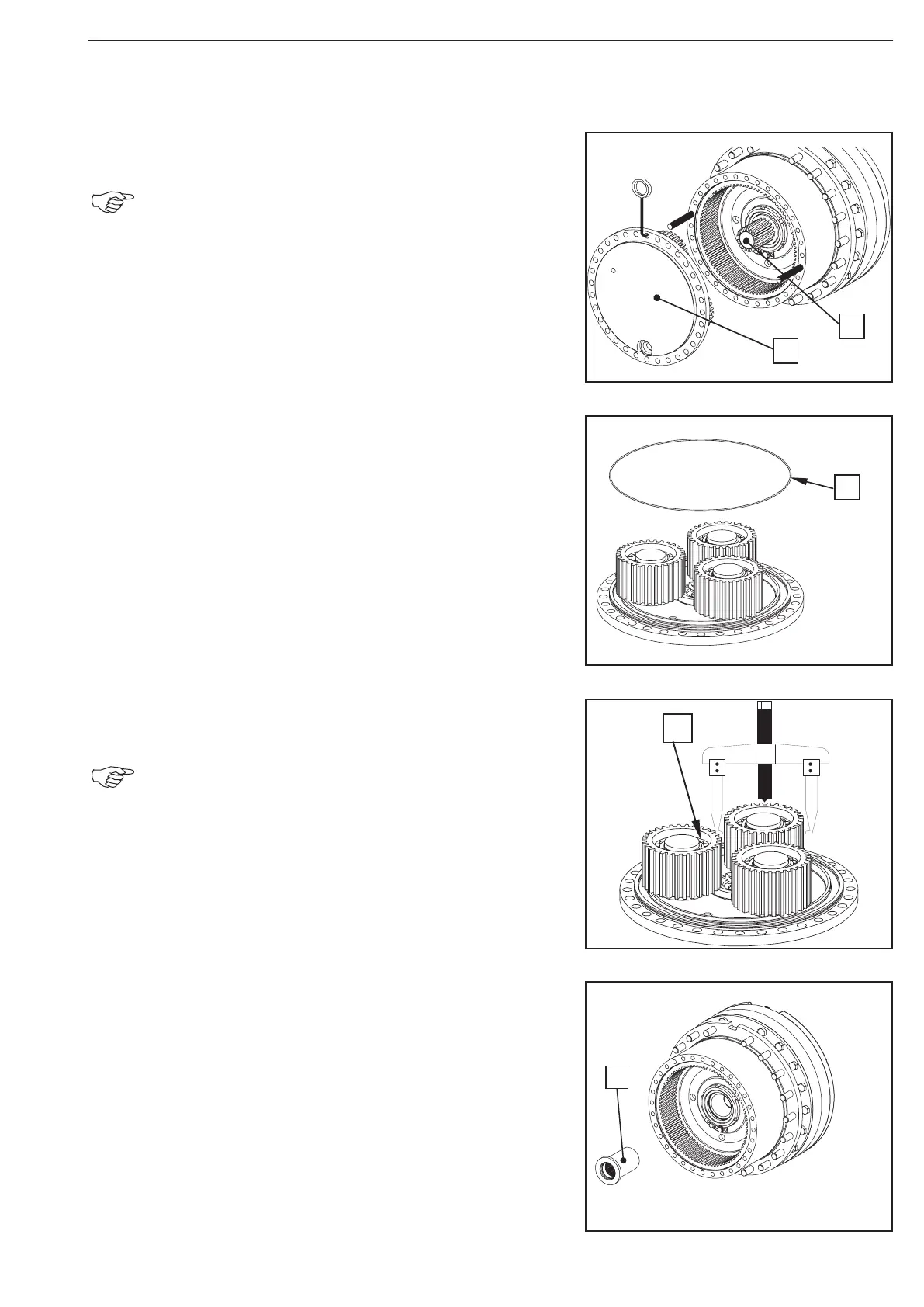

By means of lifting device separate the planet carrier (1)
from hub.
Pay attention to the released sun gear shaft (2)!
(S) Lifting chain 504198
(S) Lifting tackle 514658
Remove O-Ring (1).
(S) Set of external pliers 504231
(S) Two-armed puller 504731
Unsnap retaining rings (1) and by means of an extractor
separate planetary gears from the planet carrier.
The roller bearing in the planetary gear is fixed with a
circlip and these components are destroyed at
separation !
Both the planetary gear and the roller bearing have to be
replaced together at reassembly.
Remove the driver (1).
Figure 16
Figure 15
Figure 14
Figure 13
